EPSON Stylus COLOR 3000
Rev. A
5-
9
5. The control panel operates abnormally.
START
END
END
Is the problem
corrected?
NO
YES
Replace the control panel.
Connect the control panel
properly.
Is the problem
corrected?
Replace the main control board.
Replace the control panel.
YES
YES
NO
NO
Is
the control
panel connector
cable properly
connected?

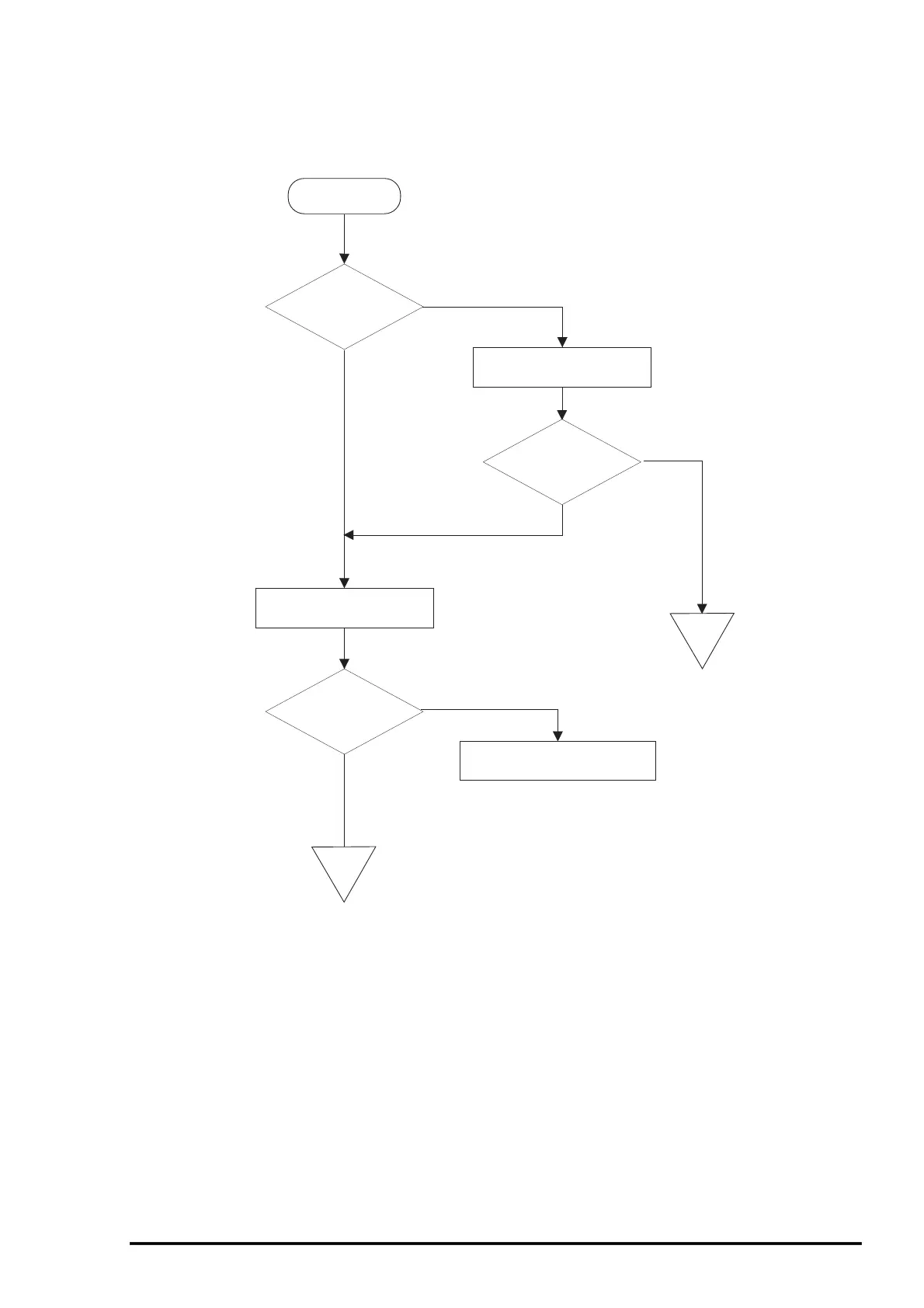

Figure 5-6. Flowchart (5)
