EPSON Stylus COLOR 860/1160 Revision C
Adjustment Adjustment 125
5.2.3 Adjustment by Adjustment Program
In this printer, it is necessary to set the correct information for each
printer mechanism in order to maintain consistent printing function and
quality, eliminating difference of each printer mechanism's
characteristics.
Therefore, in case that the combination of the printer mechanism and
main board changes or the printhead is replaced during repair, you
must set and save the correct information to the main board, using the
exclusive adjustment program.
5.2.3.1 About Adjustment Program
The adjustment program (Program name: Stylus COLOR 760 860
1160) enables you to set various values correctly to prevent malfunction
and fluctuation of printing quality and printing function caused by
difference in components and assembly when the printer components
are replaced during repair. Basic adjustment items by using this
program are shown as follows.
Table 5-1 Basic adjustment items
5.2.3.2 How to set up the program
In order to set up the program, insert 1st FDD 3.5 inch disk (Installer
Disk) to the 3.5 inch FDD disk drive and start the install the program file
in the Windows environment. After complete the set up, the SC760 860,
1160 Adjustment Program icon is added to the Program menu in the
Start menu.
NOTE:Correct program is automatically installed according to your
OS; Windows95 or Windows 98.

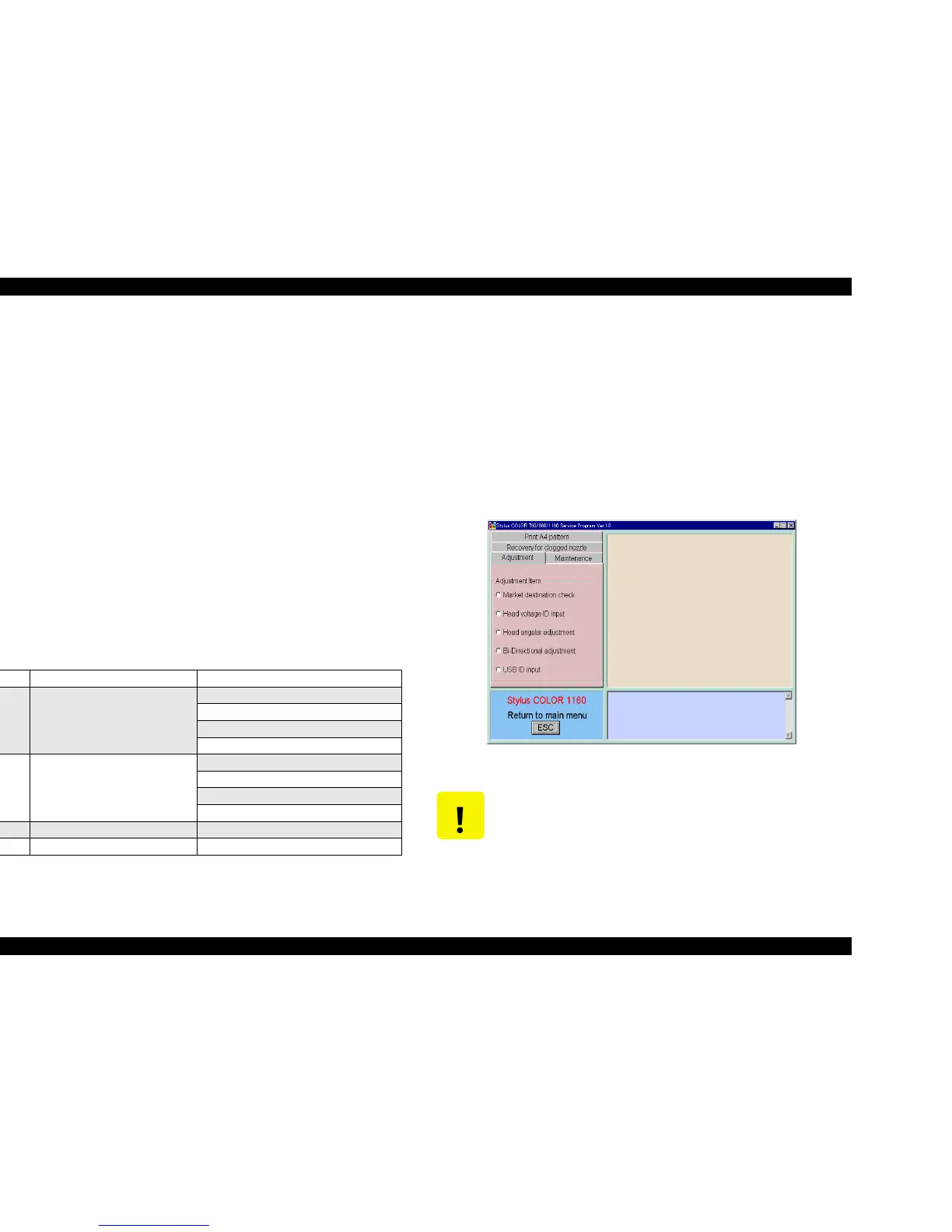

The following figure shows you the U/I of the Adjustment main menu.
Figure 5-8. U/I of the Adjustment Main menu
No. Main Items Adjustment items
1 Adjustment Head Voltage ID input
Head Angular adjustment
Bi-Directional adjustment
USB ID input
2 Maintenance
Head Cleaning
Initial Ink charge
Protection counter check
Reset the protection counter value
3 Recovery for clogged nozzle Recovery routine
4 Print A4 pattern A4 check pattern printing
CAUTION
This adjustment program can not be used in the
Windows 3.1/NT and DOS environment.
To Next Page
