EPSON Stylus COLOR 860/1160 Revision C
PRODUCT DESCRIPTION INTERFACE 17
Device ID:
The printer sends the following device ID string when requested.
When IEEE1284.4 is enabled,
[00H] [5AH] (for Stylus Color 860)
[00H] [5CH] (for Stylus Color 1160)
MFG: EPSON;
CMD: ESCPL2, BDC, D4;
MDL: Stylus[SP]COLOR[SP]860/1160;
CLS: PRINTER;
DES: EPSON[SP]Stylus[SP]COLOR[SP]860/1160;
When IEEE1284.4 is disabled,
[00H] [57H] (for Stylus Color 860)
[00H] [59H] (for Stylus Color 1160)
MFG: EPSON;
CMD: ESCPL2, BDC;
MDL: Stylus[SP]COLOR[SP]860/1160;
CLS: PRINTER;
DES: EPSON[SP]Stylus[SP]COLOR[SP]860/1160;
NOTE 1:[00H] denotes a hexadecimal value of zero.
NOTE 2:MDL value depends on the EEPROM setting.
NOTE 3:CMD value depends on the IEEE1284.4 setting.
1.3.3 USB Interface
Standard: Based on:
“Universal Serial Bus Specifications Rev. 1.0”
“Universal Serial Bus Device Class Definition
for Printing Devices Version 1.0”
Bit Rate: 12Mbps (Full Speed Device)
Data Encoding: NRZI
Adaptable Connector: USB Series B
Recommended Cable Length: 2 meters

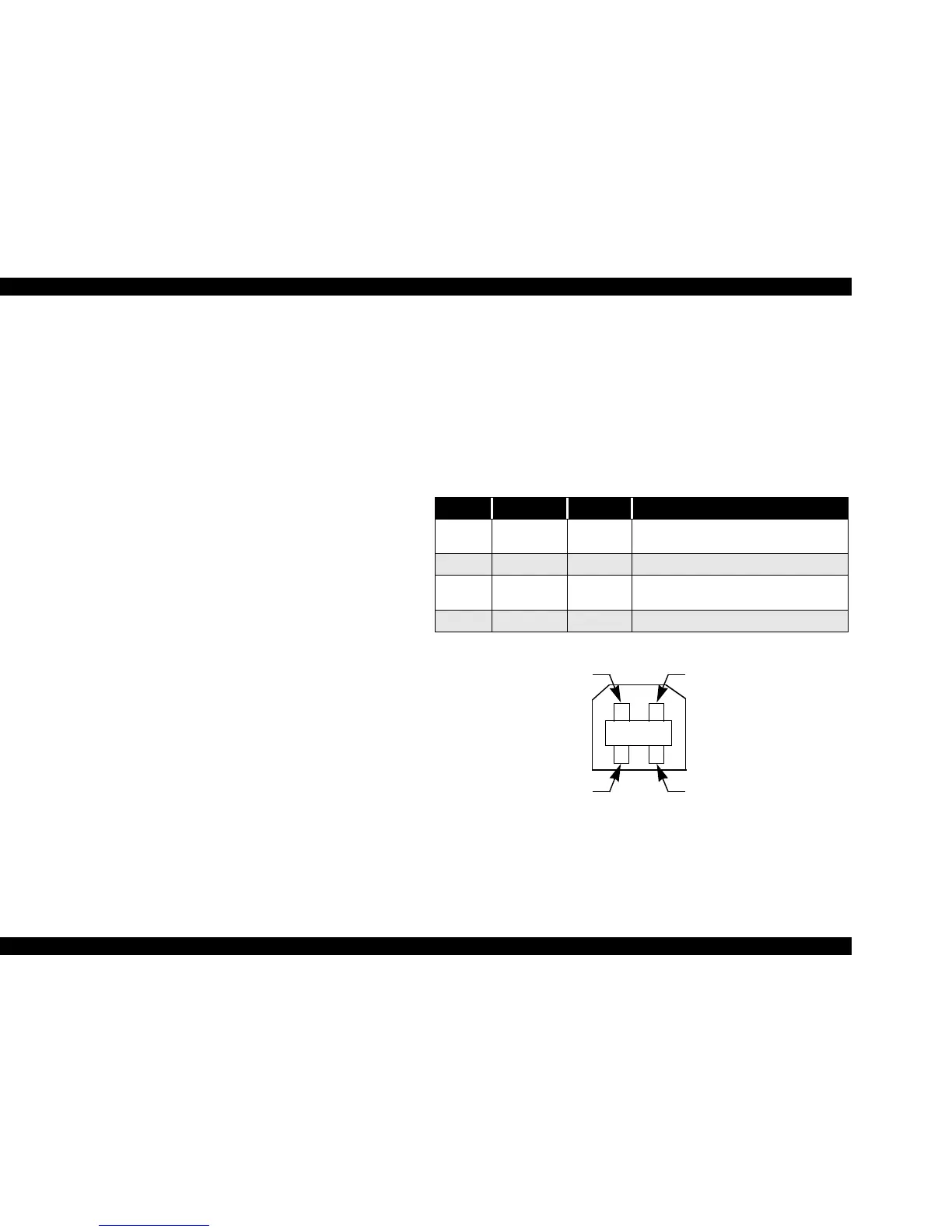

Figure 1-3. USB Pin Assignment
Table 1-8. Connector Pin Assignment and Signals
Pin No. Signal Name I/O Function Description
1VCC -
Cable power. Max. power consumption is
2mA.
2 -Data Bi-D Data
3+DataBi-D
Data, pull up to +3.3 V via 1.5K ohm
resistor.
4 Ground - Cable ground
Pin #1
Pin #3
Pin #2
Pin #4
