EPSON Stylus COLOR 860/1160 Revision C
Disassembly and Assembly Disassembly Procedures 93
4.2.4.5 Removing the DE Assembly (include the ASF/Pump motor)
1. Remove the Upper Housing (Refer to Section 4.2.1)
2) Remove the Ink System Assembly (Pump Assembly & Cap Assembly)
(Refer to Section 4.2.4.3)
3) Remove the CR Motor Assembly. (Refer to Section 4.2.4.4.)
4) Raise the Printer mechanism toward ASF side so that you can see the
bottom of the Printer Mechanism. Refer to Figure 4-19.

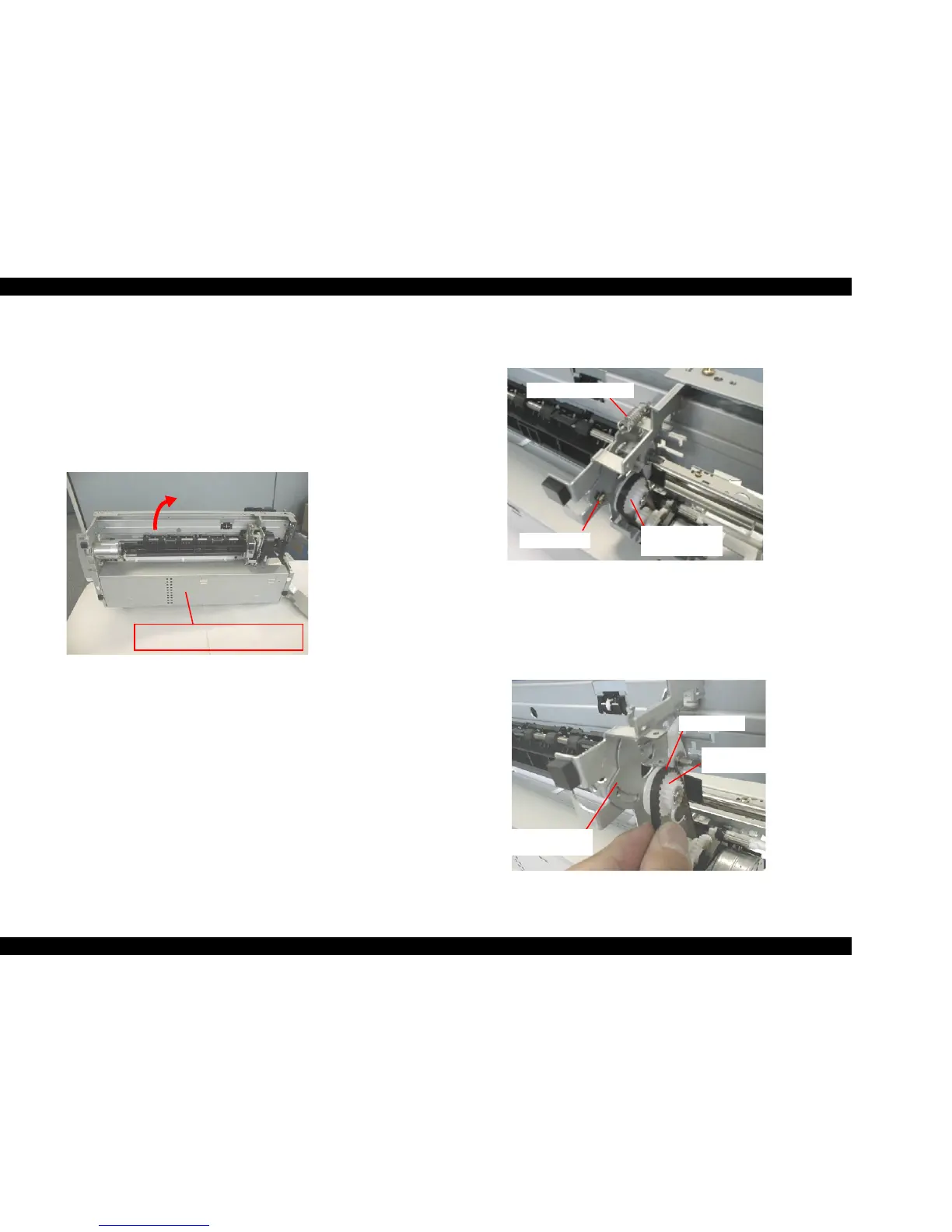

Figure 4-19. Raising the Printer Mechanism
5) Using tweezers, remove the Tension Spring 7.37 on the Middle Frame and
loosen the No. 1 screw securing the Metal Plate for Combination gear
12,22.92. Refer to Figure 4-20.
Figure 4-20. Removing the Tension Spring
6) Loosen the Tension Belt by pushing down the Metal Plate for Combination
Gear 12,22.92 and remove the Tension Belt from the Combination gear 12,
22.92. Refer to Figure 4-21.
Figure 4-21. Removing the Tension Belt
Raise the Printer Mechanism in the
direction shown with the arrow.
No. 1 Screw
Combination
Gear 12, 22.92
Tension Spring 7.3
Tension Belt
Combination
Gear 12, 22.92
Metal Plate for Combination
Gear 12, 22.92
