EPSON Stylus COLOR 860/1160 Revision C
Disassembly and Assembly Overview 77
4.1.3 Specification for Screws
Table 4-2 shows screw specifications. During assembly and disassembly,
make sure that the specified types of screws are used at proper locations,
referring to the table below. Note that the screw numbers described in the
manual correspond to the numbers in the table.

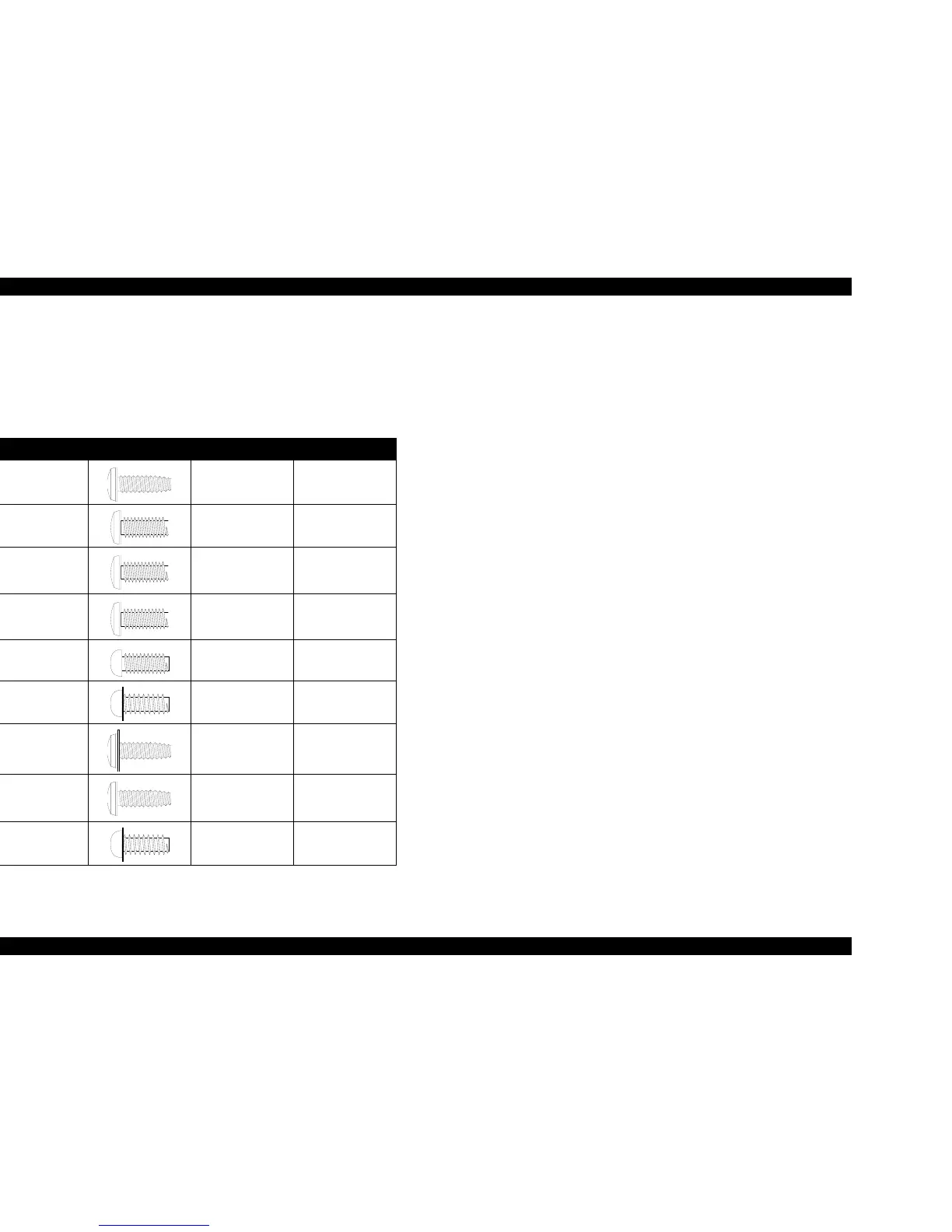

Table 4-2. Screw Characteristic
No. Body Name Size
1 +Bind, S-tite M3X6
2
+Bind, P-tite
(CBP tight)
M3X6
3
+Bind, P-tite
(CBP tight)
M3X8
4
+Bind, P-tite
(CBP tight)
M2.5X5
5 +Pan head (C.P.) M3X6
6
C
+Pan head, B-tite
Sems W1
M3X8
7
+Bind, S-tight,
Sems
R2(CBS Sems)
M3X6
8 +Bind, S-tight, M3X10
9
+Pan head, B-tite
Sems W1
1.7 X 5
