EPSON Stylus COLOR 860/1160 Revision C
Disassembly and Assembly Disassembly Procedures 89
4.2.4.3 Removing the Ink System Assembly
NOTE: The Pump Assembly and Cap Assembly are included in the Ink System
Assembly
1. Remove the Upper Housing. (Refer to Section 4.2.1.)
2) Remove the Operation Panel. (Refer to Section 4.2.3.)
3) Remove two screws (No.1) securing the Right Sub Frame. Refer to Figure
4-12.

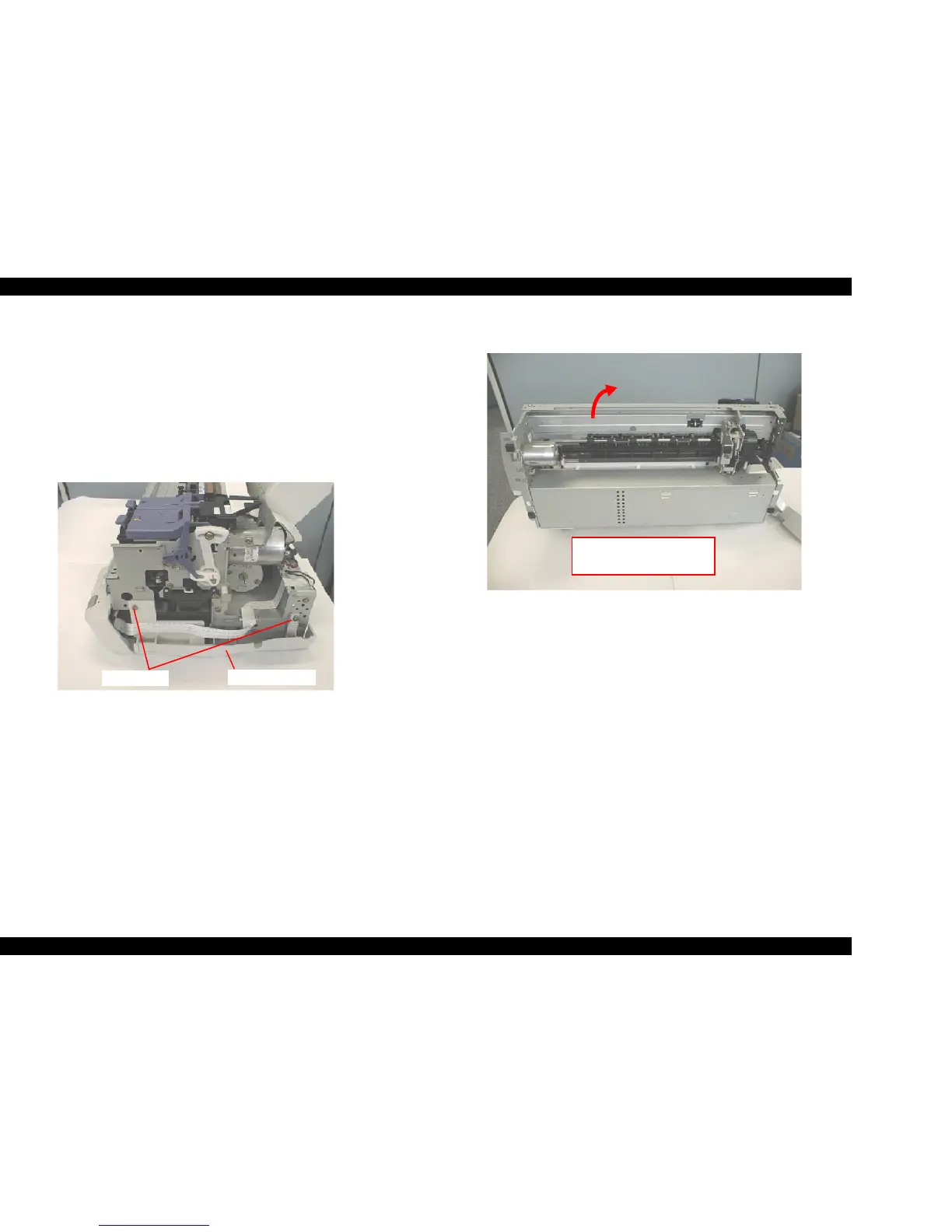

Figure 4-12. Removing the Right Sub Frame
4) Remove the Waste Ink Absorber Tray Assembly (Refer to Section 4.2.4.2.)
5) Raise the Printer Mechanism toward ASF side so that you can see the
bottom of the Printer Mechanism. Refer to Figure 4-13.
Figure 4-13. Raising the Printer Mechanism
NO.1 Screws
Right Sub Frame
Raise the printer mechanism
in the direction indicated with
the arrow.
