1.5.3.2 Envelopes

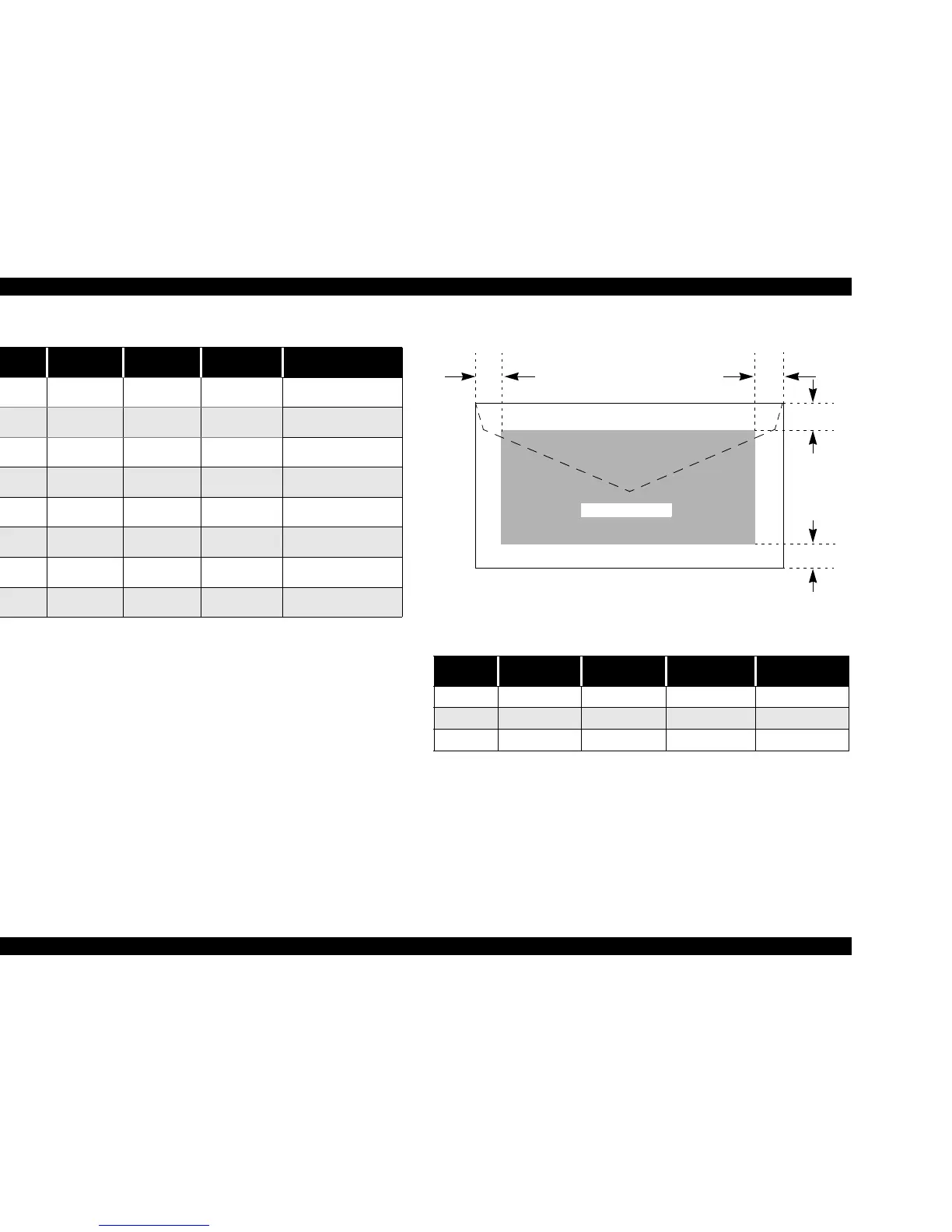

Figure 1-6. Printable Area for Envelopes
Table 1-14. Raster Graphics Mode
Paper
Size
Left Margin
(min.)
Right Margin
(min.)
Top Margin
(min.)
Bottom Margin
(min.)
A3* 3 mm (0.12”) 3 mm (0.12”) 3 mm (0.12”)
14 mm (0.54”) / 3mm
(0.12”) **
A3+* 3 mm (0.12”) 3 mm (0.12”) 3 mm (0.12”)
14 mm (0.54”) / 3mm
(0.12”) **
A4 3 mm (0.12”) 3 mm (0.12”) 3 mm (0.12”)
14 mm (0.54”) / 3mm
(0.12”) **
Letter 3 mm (0.12”) 3 mm (0.12”) 3 mm (0.12”)
14 mm (0.54”) / 3mm
(0.12”) **
B5 3 mm (0.12”) 3 mm (0.12”) 3 mm (0.12”)
14 mm (0.54”) / 3mm
(0.12”) **
Legal 3 mm (0.12”) 3 mm (0.12”) 3 mm (0.12”)
14 mm (0.54”) / 3mm
(0.12”) **
Statement 3 mm (0.12”) 3 mm (0.12”) 3 mm (0.12”)
14 mm (0.54”) / 3mm
(0.12”) **
Exclusive 3 mm (0.12”) 3 mm (0.12”) 3 mm (0.12”)
14 mm (0.54”) / 3mm
(0.12”) **
Table 1-15. Envelope Margin
Size
Left Margin
(min.)
Right Margin
(min.)
Top Margin
(min.)
Bottom Margin
(min.)
#10 3 mm (0.12”) 28 mm (1.10”) 3 mm (0.12”) 14 mm (0.55”)
DL 3 mm (0.12”) 7 mm (0.28”) 3 mm (0.12”) 14 mm (0.55”)
C6 3 mm (0.12”) 3 mm (0.12”) 3 mm (0.12”) 14 mm (0.55”)
Printable Area
LM
RM
TM
BM
