EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
PRODUCT DESCRIPTION Control Panel 45
1.6.3.2 Memory Card Insertion/Ejection
(only for Stylus CX4500/CX4600)
The functions of this unit caused by memory card insertion or ejection are described in
the following table.
1.6.3.3 Low Power Panel Mode
Without any panel operation for 15 minutes while the printer and scanner unit are in
standby status, this unit moves into the low power panel mode in which power
consumption for the panel decreases.
This unit recovers from that mode by pushing any button but Power Button or printing/
scanning by PC.
This unit is turned off by pushing Power Button in that mode.
1.6.3.4 Adjust lever function
Without any panel operation for 15 minutes while the printer and scanner unit are in
standby status, this unit moves into the low power panel mode in which power
consumption for the panel decreases.
This unit recovers from that mode by pushing any switch or printing/scanning by PC.
1.6.3.5 Nozzle check pattern print
Nozzle check pattern can be printed only with this unit. Left ink quantity of each color
is also printed by the unit of 10%.
To activate this function, turn on this unit while depressing Ink Button. After printing
the pattern, this unit moves to ordinary standby status.

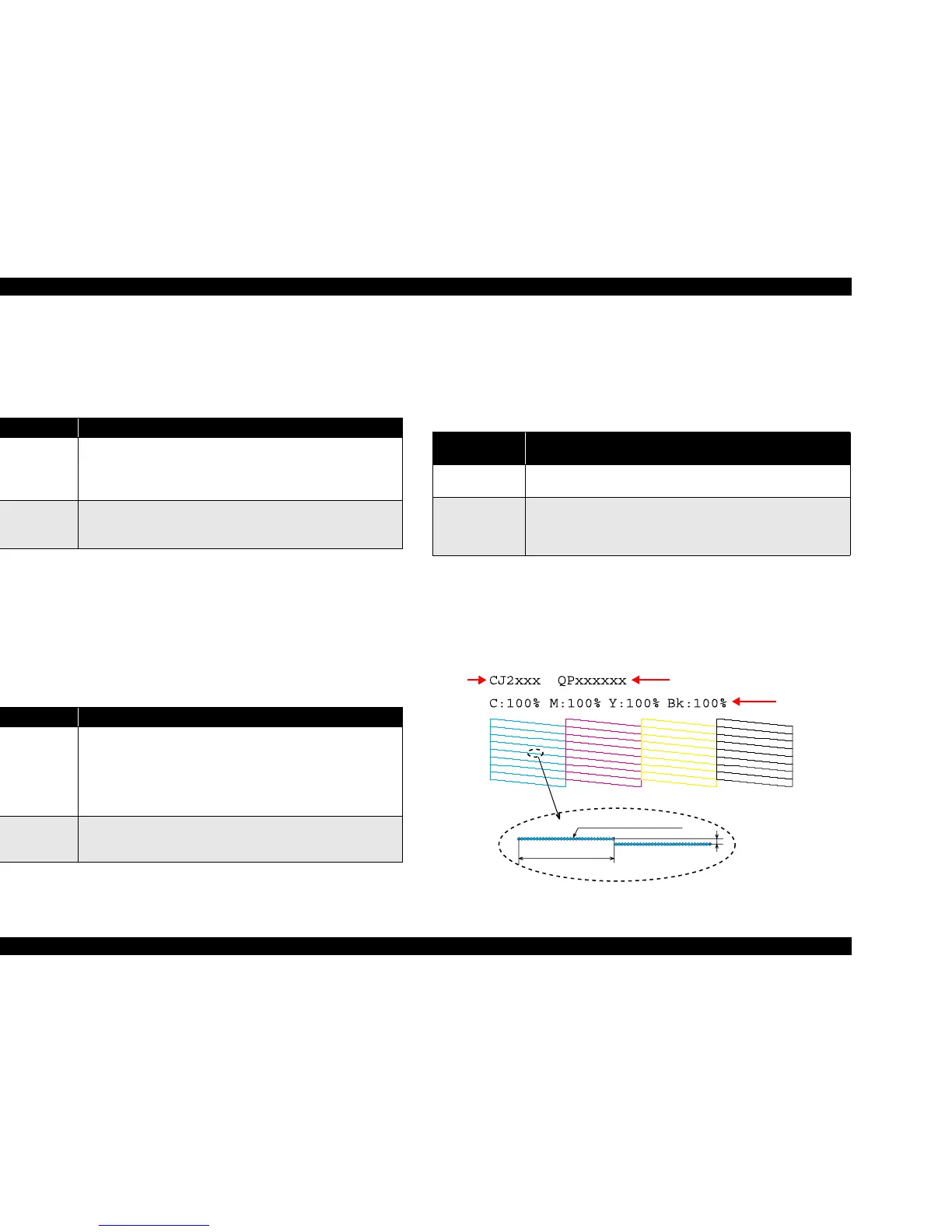

The example of nozzle check pattern is below.
Figure 1-25. Nozzle check pattern
Table 1-45. Memory Card Insertion/Ejection
Action Function
Card Insertion
• Recognize the card and light Card Access LED if it is right.
• The LED blinks while memory access occurs to the memory card.
• Also the Power LED blinks during the card recognition.
• Return from the low power panel mode.
Card Ejection
• Turn off Card Access LED.
• Stop print job while memory card print is in process and eject paper.
• Clear memory card error if memory card is wrong.
Table 1-46. Low Power Panel Mode
Action Function
Transition to low
power mode
• Turn off all LEDs except for Power LED and Card Access LED.
• Blink Decimal Point LED slowly.
• No move in error status except for memory card error, index sheet error
and PG error.
• Ejecting of memory card or accessing it by PC has no effect on low
power mode.
Recovery from
low power mode
• Recall the panel status as that before moving to low power panel mode.
• Inserting or ejecting of memory card or accessing it by PC has no effect
on low power mode.
Table 1-47. Adjust lever function
Adjust lever
status
Function
PG open
(Displayed “H”)
• “H” will be displayed with 7-seg.LED for about 3 seconds just after the
adjust lever is changed to “H: Envelope” position.
PG close
(Displayed “L”)
• “L” will be displayed with 7-seg.LED for about 3 seconds just after the
adjust lever is changed to “L: Cut sheet” position.
• Clear the PG error and print job suspended by PG error when the adjust
lever is changed to “L: Cut sheet position” in the PG error status.
11
1
31
21
51
41
71
61
81
20
10
40
30
60
50
80
70
90
11
1
31
21
51
41
71
61
81
20
10
40
30
60
50
80
70
90
11
1
31
21
51
41
71
61
81
20
10
40
30
60
50
80
70
90
11
1
31
21
51
41
71
61
81
20
10
40
30
60
50
80
70
90
<Cyan> <Magenta> <Yellow> <Black>
360dpi VSD Large dot
32dots
0.212mm (1/120inch)
ROM
version
Q-PIT version
Remaining ink
quantity
