EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Disassembly And Assembly Disassembling the Printer Mechanism 107

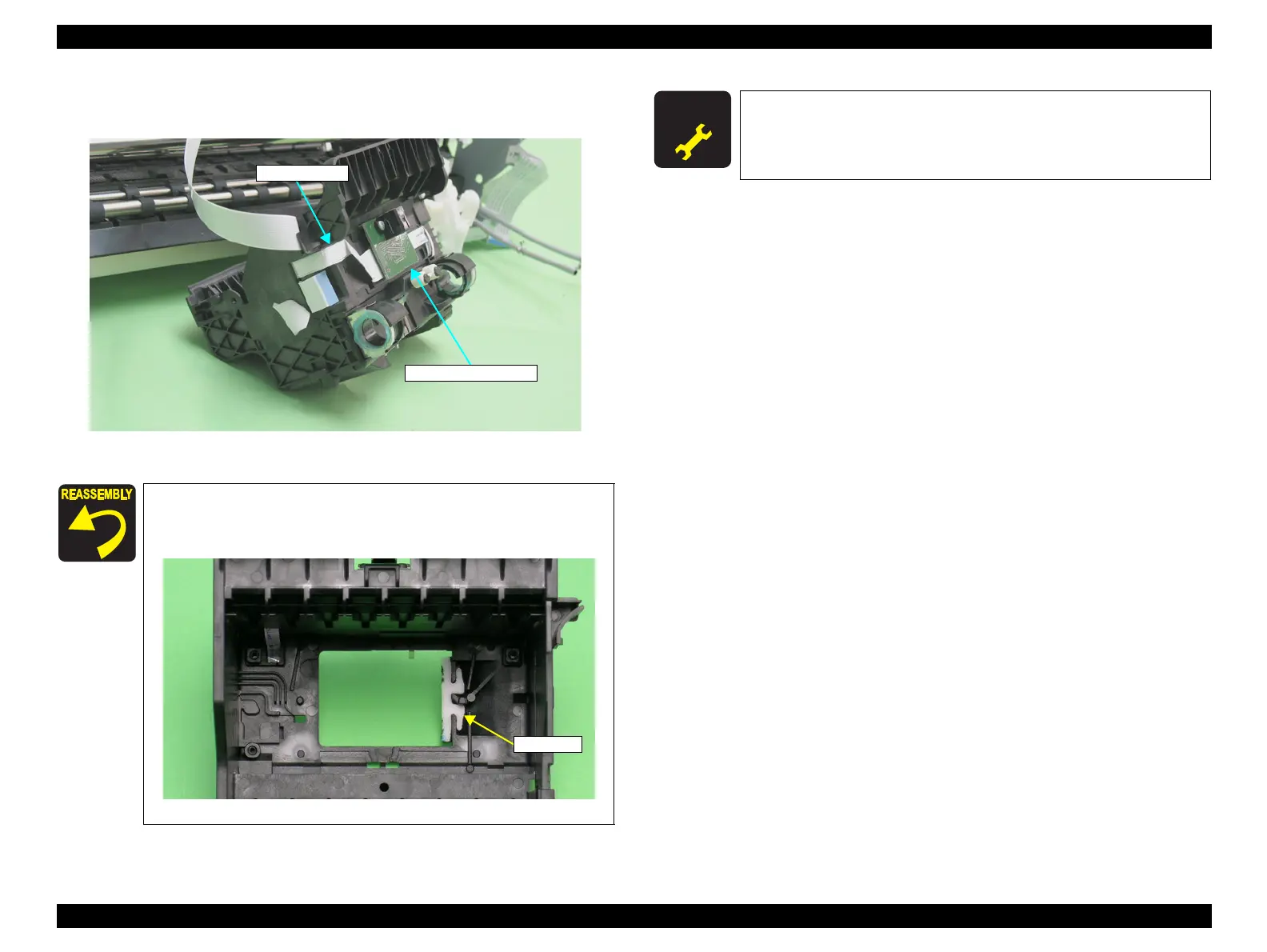

25. Disconnect the Sensor FFC from the connector on the CR Encoder Board, pull out
the Sensor FFC from the Carriage Unit, and remove the Carriage Unit.
Figure 4-90. Removing the Carriage Unit
When the Carriage Unit is removed from the Printer
Mechanism, the CR Pad may drop off. In such case, correctly
install it referring to the figure below.
Figure 4-91. Reinstalling the CR Pad
CR Encoder Board
Sensor FFC
CR Pad
A D J U S T M E N T
R E Q U I R E D
After replacing or removing the Carriage Shaft and Carriage Unit,
always make the required adjustments referring to the following.
“Chapter 5 Adjustment (p.139)
