EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I

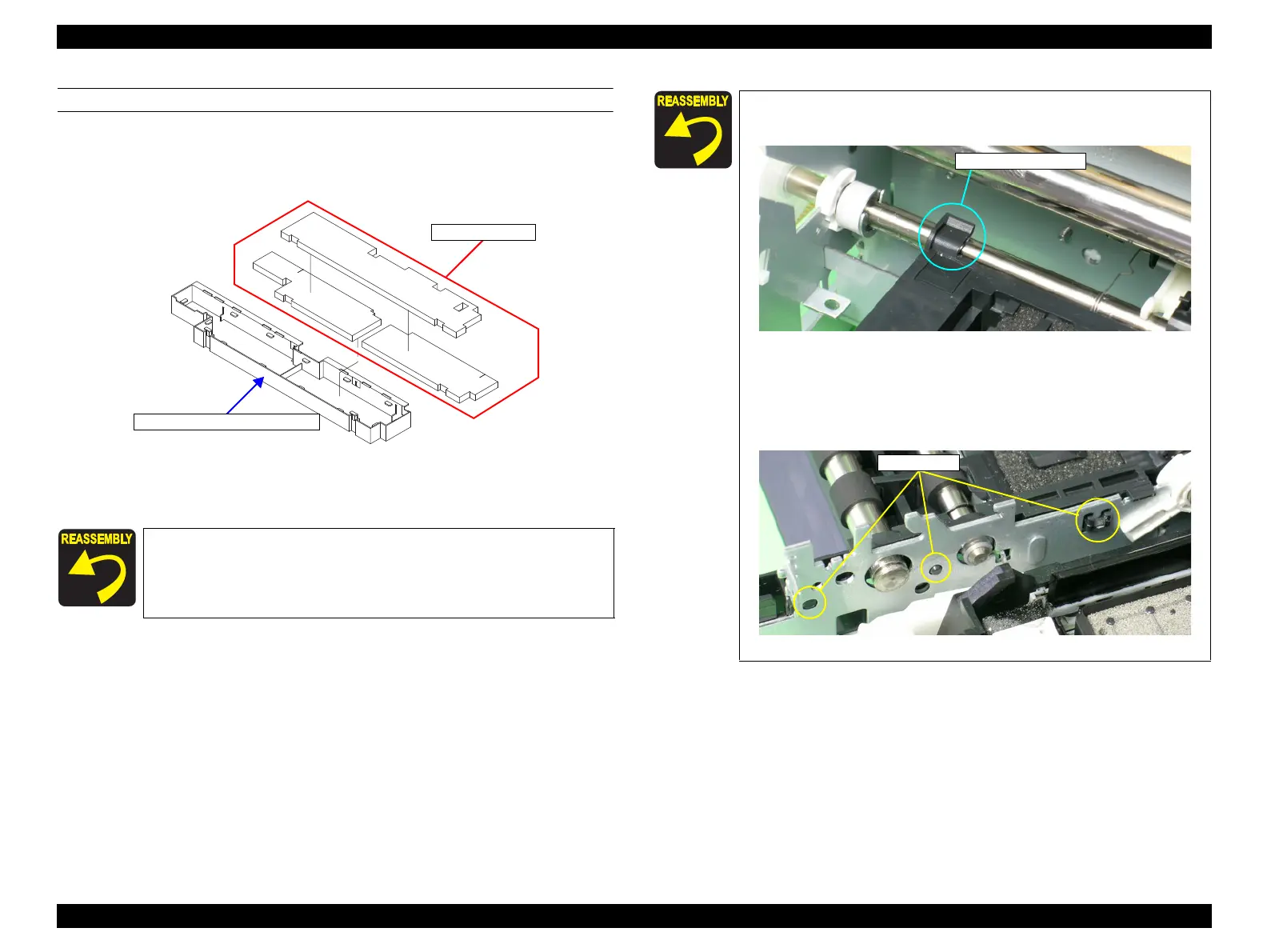

Disassembly And Assembly Disassembling the Printer Mechanism 123
DISASSEMBLING THE FRONT PAPER GUIDE PAD TRAY
1. Remove the Front Paper Guide Pad Tray in the direction of the arrow. (p.122)
2. Remove the three Waste Ink Pads from the Front Paper Guide Pad Tray.
Figure 4-136. Removing the Waste Ink Pad
Engage the two tabs of the Front Paper Guide Pad Tray with the
holes of the Front Paper Guide as shown in Figure 4-135.
Waste Ink Pad
Front Paper Guide Pad Tray
 Align the bushing of the Front Paper Guide with the PF Roller
Shaft.
Figure 4-137. The PF Roller Shaft and the bushing of the Front
Paper Guide
 Align the positioning holes on the Main Frame with the guide
pins on the Front Paper Guide.
Figure 4-138. Reinstalling the Front Paper Guide
Shaft and bushing
Guide pins
