EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Maintenance Overview 171
7. Hold the Carriage Unit, and while turning the Carriage Shaft, move the Carriage
Unit to the right end of the Carriage Shaft to lubricate the grease evenly.

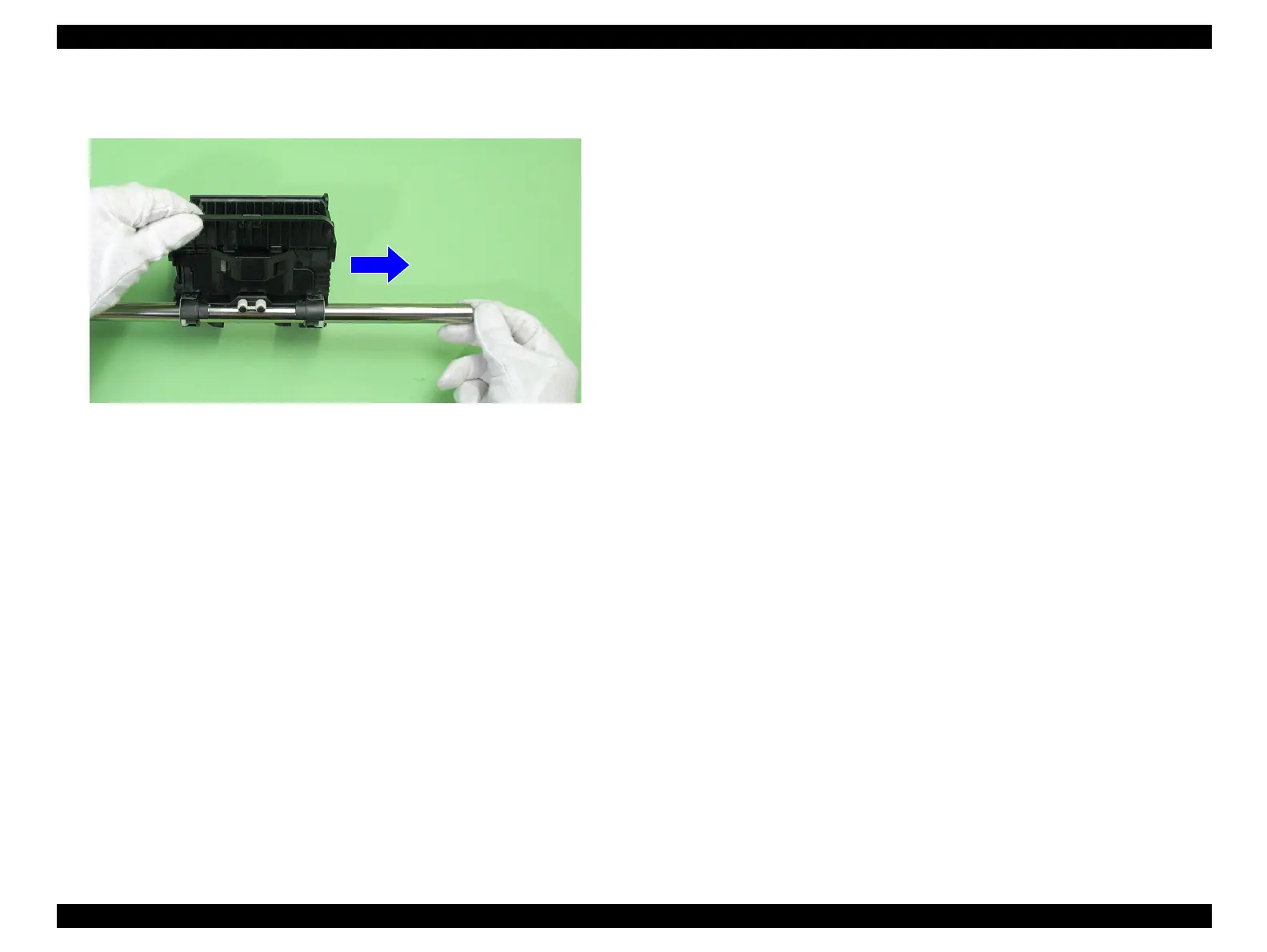

Figure 6-18. Lubricating the Carriage Shaft (5)
8. Repeat Step 4 ~ 7.
