EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Maintenance Overview 170

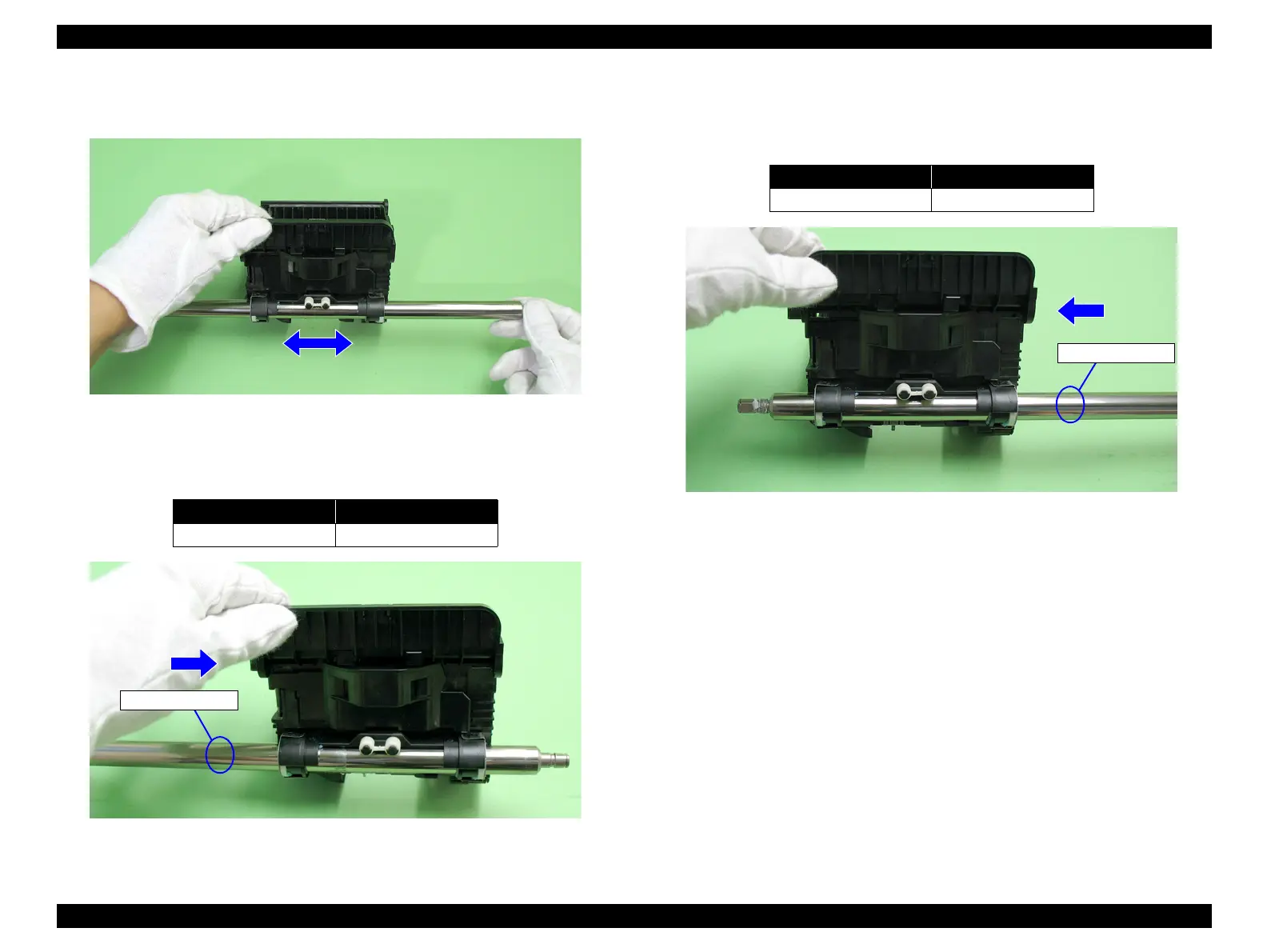

3. Hold the Carriage Unit, and while turning the Carriage Shaft clockwise and
counterclockwise, move the Carriage Unit to spread the grease evenly.
Figure 6-15. Lubricating the Carriage Shaft (2)
4. Move the Carriage Unit to the right end of the Carriage Shaft viewing the Unit
from the rear, and lubricate grease with the syringe at the point shown in Figure
6-16.
Figure 6-16. Lubricating the Carriage Shaft (3)
5. Hold the Carriage Unit, and while turning the Carriage Shaft, move the Carriage
Unit to the left end of the Carriage Shaft to lubricate the grease evenly.
6. Lubricate grease with the syringe at the point shown in Figure 6-17.
Figure 6-17. Lubricating the Carriage Shaft (4)
Lubrication Type Lubrication Amount
G-71 140mg
Lubrication Type Lubrication Amount
G-71 140mg
To Next Page
