EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Maintenance Overview 169

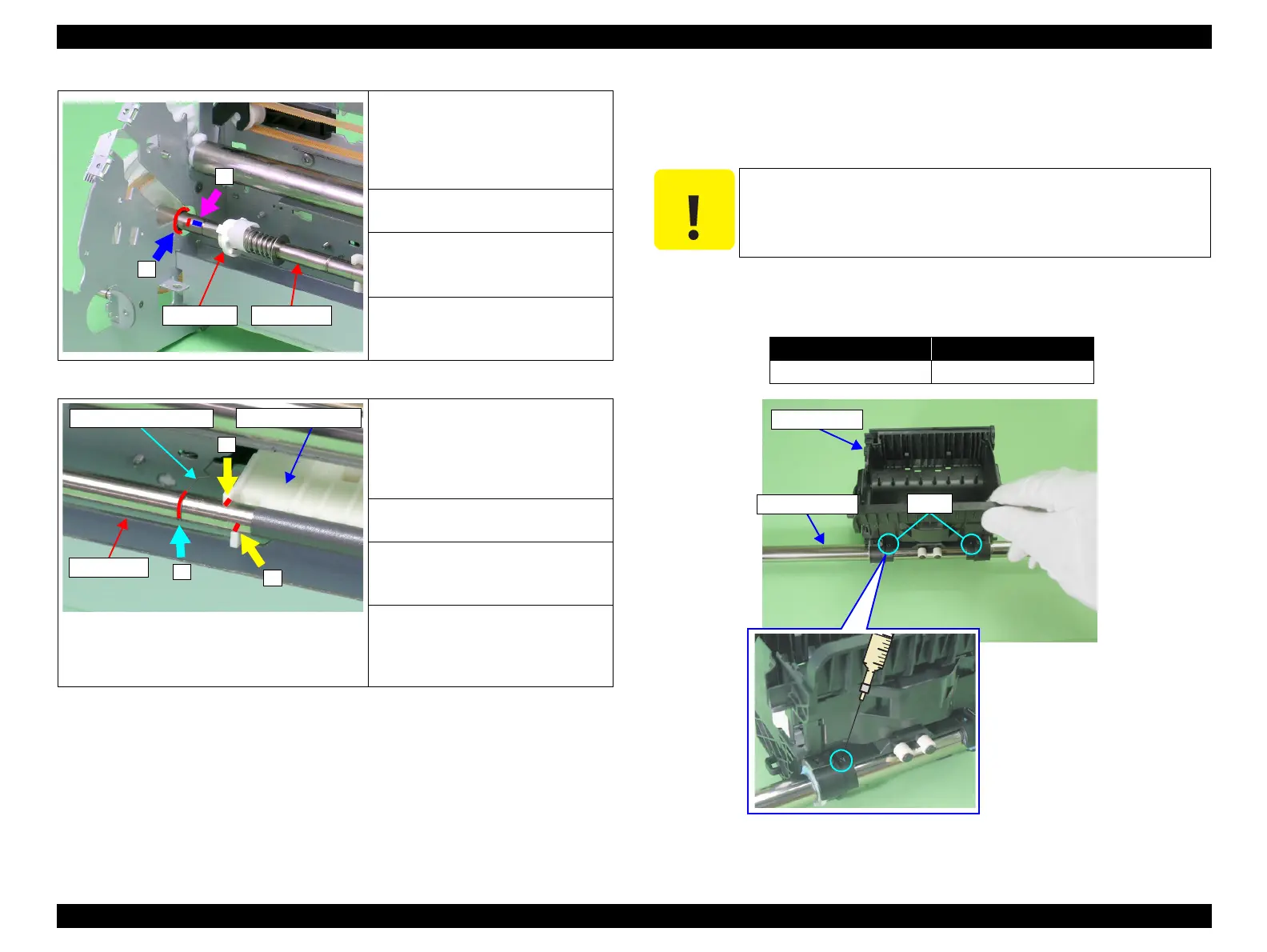

Figure 6-12. Lubrication (12)
Figure 6-13. Lubrication (13)
6.1.3.1 Lubrication of Carriage Shaft
1. Fit the Carriage Unit onto the Carriage Shaft, and move it to the center of the
Shaft.
2. Using a syringe, lubricate the holes (2 places) at both ends of the Carriage Unit
rear side with grease.
Figure 6-14. Lubricating the Carriage Shaft (1)
<Lubrication Point>
1. Left side of the PF Roller Shaft
(Left of the E-Ring)
2. Mounting location of the Bushing
8
<Lubrication Type>
G-45
<Lubrication Amount>
1. Approx. φ 1mm x 5mm
2. All around the Shaft
<Remarks>
1. Apply with a syringe.
2. Apply with a brush.
<Lubrication Point>
1. Contact point of the Rear Paper
Guide and the PF Roller
2. Contact point of the PF Grounding
Spring and the PF Roller
<Lubrication Type>
G-45
<Lubrication Amount>
1. Apply evenly.
2. φ 1mm x 2mm
<Remarks>
1. Apply with a brush.
2. Apply with a syringe.
(Pin Head: φ 1mm)
Bushing 8
1
2
PF Roller
1
1
2
Rear Paper Guide
PF Grounding Spring
PF Roller
C A U T I O N
In the following step, do not bring the needle of a syringe into
contact with the Carriage Shaft.
Lubrication Type Lubrication Amount
G-71 280mg x 2 points
Carriage Unit
Holes
Carriage Shaft
