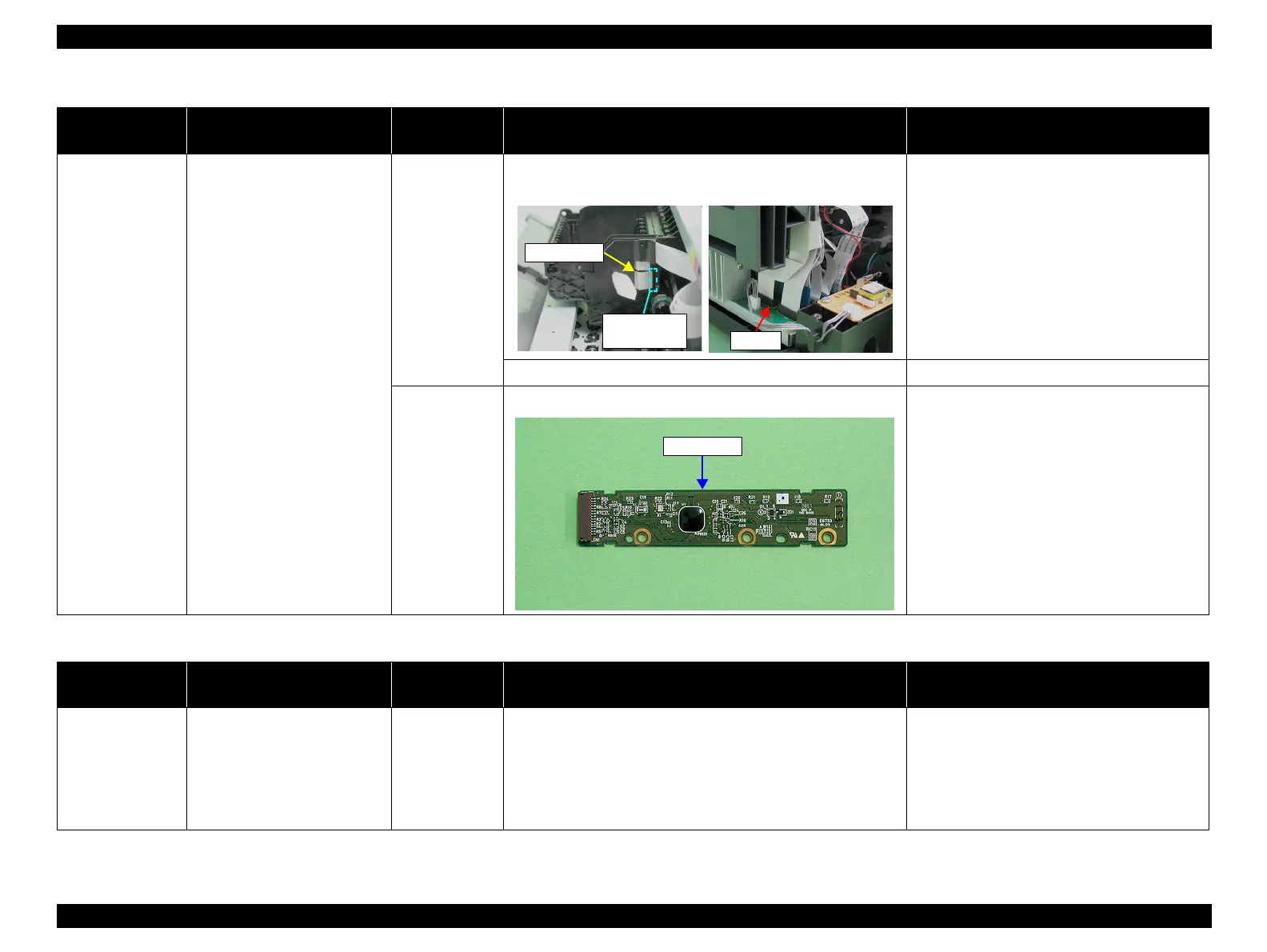

Troubleshooting Overview 52
At power-on After the Carriage has detected
the HP, an error is displayed on
the LED and STM3.
CSIC FFC 1. Check that the CSIC FFC is connected to the CSIC Board
connector and Main Board connector CN22.
1. Connect the CSIC FFC to the CSIC Board
connector and Main Board connector CN22.
2. Check the CSIC FFC for damage. 2. Replace the CSIC FFC with a new one.
CSIC Board 1. Check the CSIC Board for damage. 1. Replace the CSIC Board with a new one.
Table 3-13. Troubleshooting of Maintenance Request
Occurrence
Timing
Phenomenon Detail
Faulty Part/
Part Name
Check Point Remedy
At power-on At power-on, the printer does not
operate at all.
Waste Ink Pads 1. Using the Adjustment Program, check if the values of the
Protection Counter A and B have exceeded the values shown
below.
• Protection Counter A : 21,500 (Stylus Photo R1900)
: 22,500 (Stylus Photo R2880)
• Protection Counter B : 7,030
1. Replace the Waste Ink Pads and reset the
Protection Counter A and B value with the
Adjustment Program.
Table 3-12. Troubleshooting of No Ink Cartridge/CSIC Error
Occurrence
Timing
Phenomenon Detail
Faulty Part/
Part Name
Check Point Remedy
CN22
CSIC FFC
CSIC Board
connector
CSIC Board
