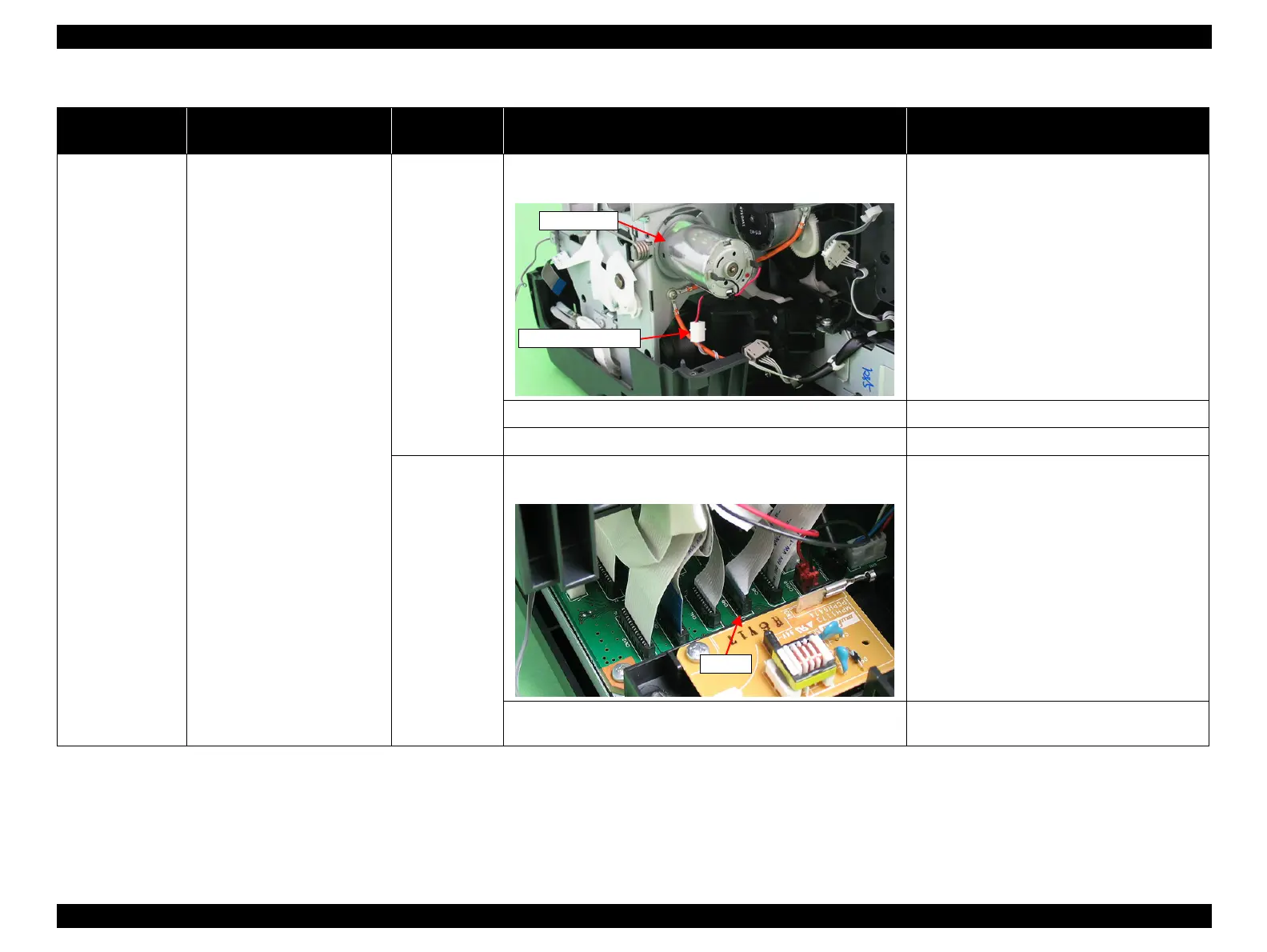

Troubleshooting Overview 53
Table 3-14. Troubleshooting of Fatal Error
Occurrence
Timing
Phenomenon Detail
Faulty Part/
Part Name
Check Point Remedy
At power-on At power-on, the CR Motor does
not operate at all.
CR Motor 1. Check that the CR Motor connector cable is connected to the
Relay connector.
1. Connect the CR Motor connector to the Relay
connector.
2. Check the CR Motor connector cable for damages. 2. Replace the CR Motor with a new one.
3. Check if the CR Motor operates normally. 3. Replace the CR Motor with a new one.
Relay connector
cables
(for the CR
Motor)
1. Check that the Relay connector cable is connected to the Main
Board connector CN15.
1. Connect the Relay connector cable to the Main
Board connector CN15.
2. Check the Relay connector cable for damages. 2. Replace the Relay connector cable with a new
one.
CR Motor
Relay connector
CN15
