DISASSEMBLY & ASSEMBLY Parts Diagram 192
Confidential

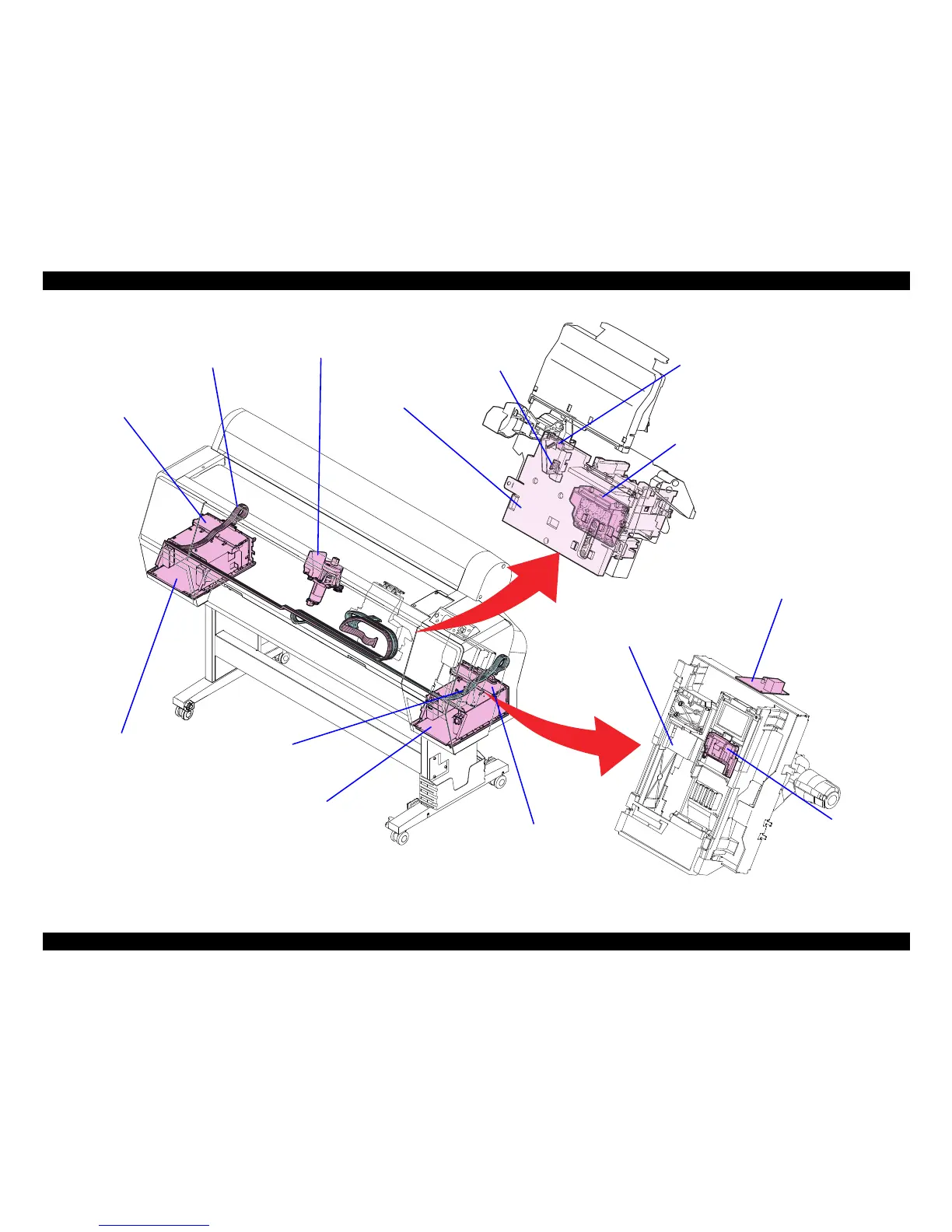

Figure 4-9. Ink System Mechanism
Printhead
(p270)
Ink Mark Sensor
(p298)
AID Board
(p294)
Ink Selector
(p300)
Pressurizing Unit
(p275)
Ink Tube L
(p310)
Ink System Unit
(p266)
Ink Tube R
(p306)
Ink Cartridge Holder L
(p284)
Ink Cartridge Holder R
(p277)
Wiper Cleaner Assy
(p269)
PW Sensor
(p251)
Ink Holder Board Assy L
(p290)
Ink Holder Board Assy R
(p292)
