Epson Stylus Pro 7700/7710/7700M/7710M/7900/7910/9700/9710/9900/9910/WT7900/WT7910/9890/9908/7890/7908 Revision I
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 263
Confidential
4.4.5.8 PF Encoder Sensor
1. Remove the IC Cover L and the IC Shaft Cover L. (p206)
2. Remove the Maintenance Tank L. (p208)
NOTE: There is no Maintenance Tank (L) mounted for the Epson Stylus Pro
7700/7710/7700M/7710M/7900/7910/WT7900/WT7910/7890/7908.
3. Remove the Left Cover. (p209)
4. Remove the two screw that secures the PF Encoder Sensor Holder, and remove the
PF Encoder Sensor Holder.
A) Silver, Phillips, Bind machine screw M3x6: two pieces
5. Disconnect the FFC from the PF Encoder.
6. Remove the screw that secures the PF Encoder Sensor, and remove the PF
Encoder Sensor.
B) Silver, Phillips, Pan machine screw M2x5: one piece

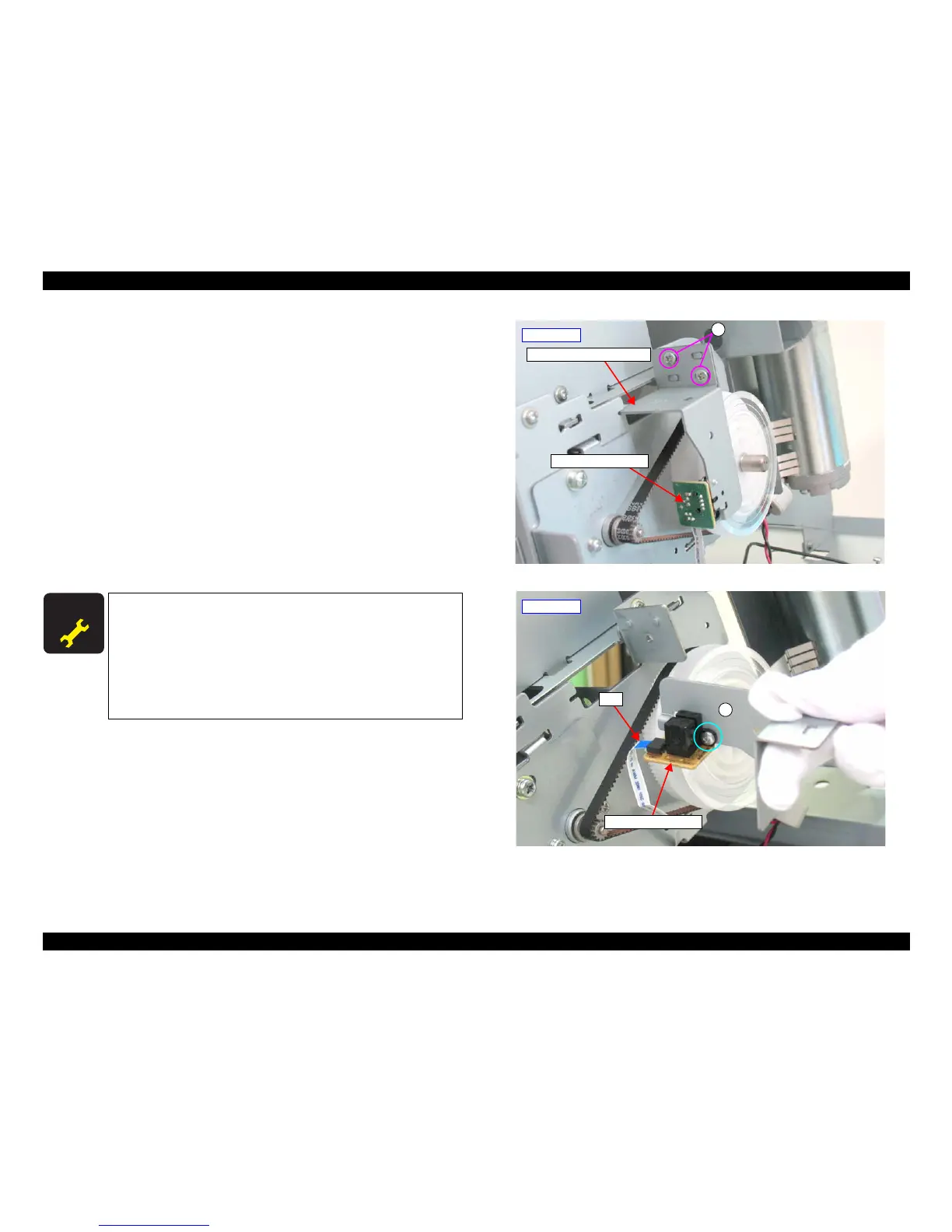

Figure 4-102. Removing the PF Encoder Sensor Holder
Figure 4-103. Removing the PF Encoder Sensor
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 5 “Adjustment” (see p351) and perform
specified adjustments after replacing or removing the PF Encoder
Sensor.
<Adjustment Item>
1. PF Encoder Adjustment
2. Skew Check
3. Band Feed
4. T&B&S Adjustment
- Left side -
PF Encoder Sensor Holder
PF Encoder Sensor
A
B
FFC
- Left side -
PF Encoder Sensor
To Next Page
