Epson Stylus Pro 7700/7710/7700M/7710M/7900/7910/9700/9710/9900/9910/WT7900/WT7910/9890/9908/7890/7908 Revision I
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 272
Confidential
13. Remove the screws that secure the Ink Selector.
NOTE: The number of screws differs between Epson Stylus Pro 7900/7910/9900/9910/
WT7900/WT7910/7890/7908/9890/9908 and Epson Stylus Pro 7700/7710/
7700M/7710M/9700/9710.
B) Silver, Phillips, Bind S-tite M3x8:
Epson Stylus Pro 7900/7910/9900/9910/WT7900/WT7910/7890/7908/9890/
9908
: two pieces
Epson Stylus Pro 7700/7710/7700M/7710M/9700/9710
: two pieces
C) Silver, Phillips, Pan screw with S.W & P.W. M3x8:
Epson Stylus Pro 7900/7910/9900/9910/WT7900/WT7910/7890/7908/9890/
9908
: five pieces
Epson Stylus Pro 7700/7710/7700M/7710M/9700/9710
: two pieces
D) Black, Phillips, Bind S-tite M3x12:
Epson Stylus Pro 7900/7910/9900/9910/WT7900/WT7910/7890/7908/9890/
9908
: one piece
Epson Stylus Pro 7700/7710/7700M/7710M/9700/9710
: one piece

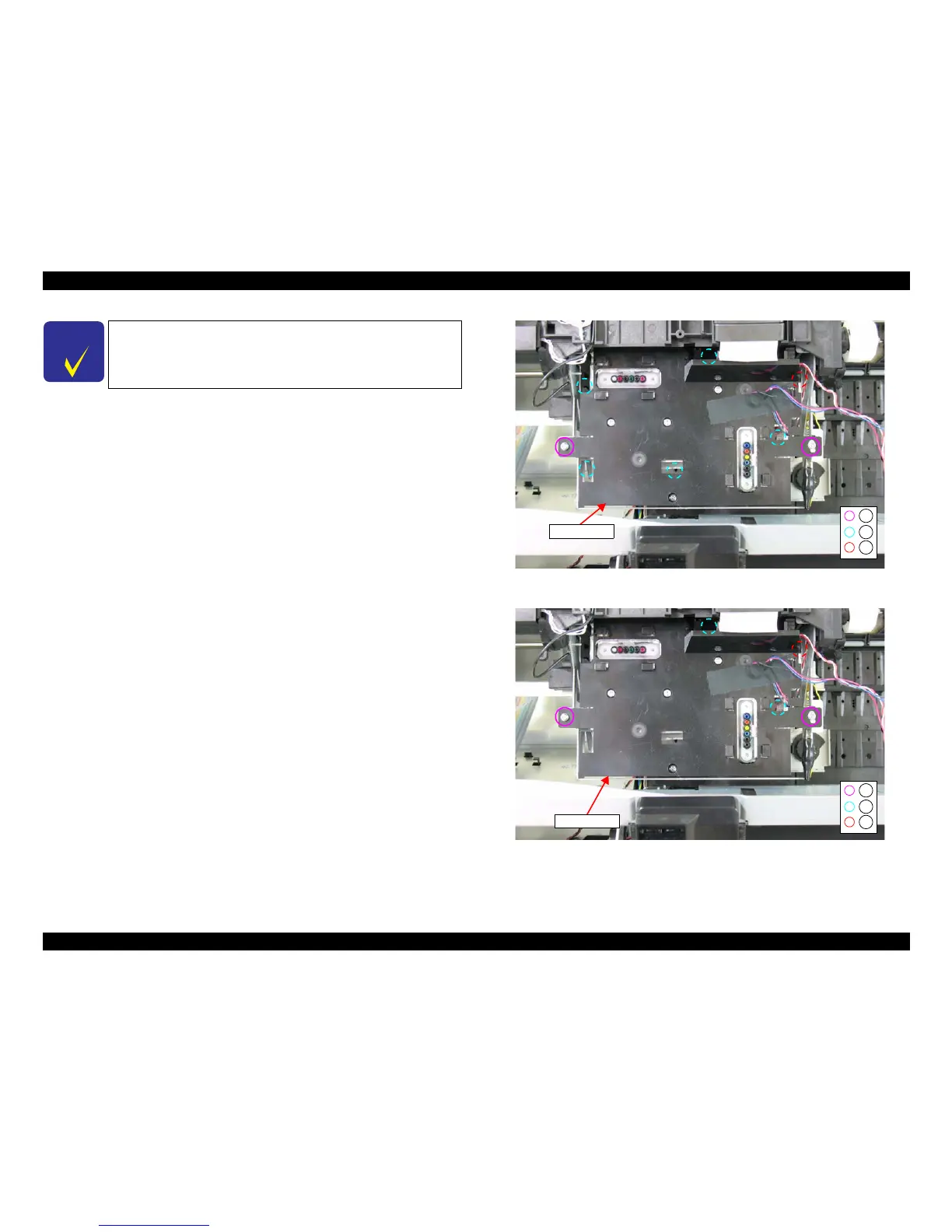

Figure 4-117. Ink Selector fixing screws (Epson Stylus Pro 7900/7910/9900/9910/WT7900/
WT7910/7890/7908/9890/9908)
Figure 4-118. Ink Selector fixing screws (Epson Stylus Pro 7700/7710/9700/9710)
C H E C K
P O I N T
In Figure 4-117 and Figure 4-119, the Ink Tubes are disconnected
to indicate the screw locations easily. In actual operation; however,
there is no need to disconnect them.
B
C
Ink Selector
D
B
C
Ink Selector
D
To Next Page
