Epson T-B Series Maintenance Manual

T3-B T6-B Maintenance 14. Lithium Battery, SD Card, Boards, and Filter
T-B series Maintenance Manual Rev.1 125
Name
Quantity
NOTE
Tools
Cross-point screwdriver (No. 2) 1
Torque wrench (T8) 1 Fieldbus I/O module supplied

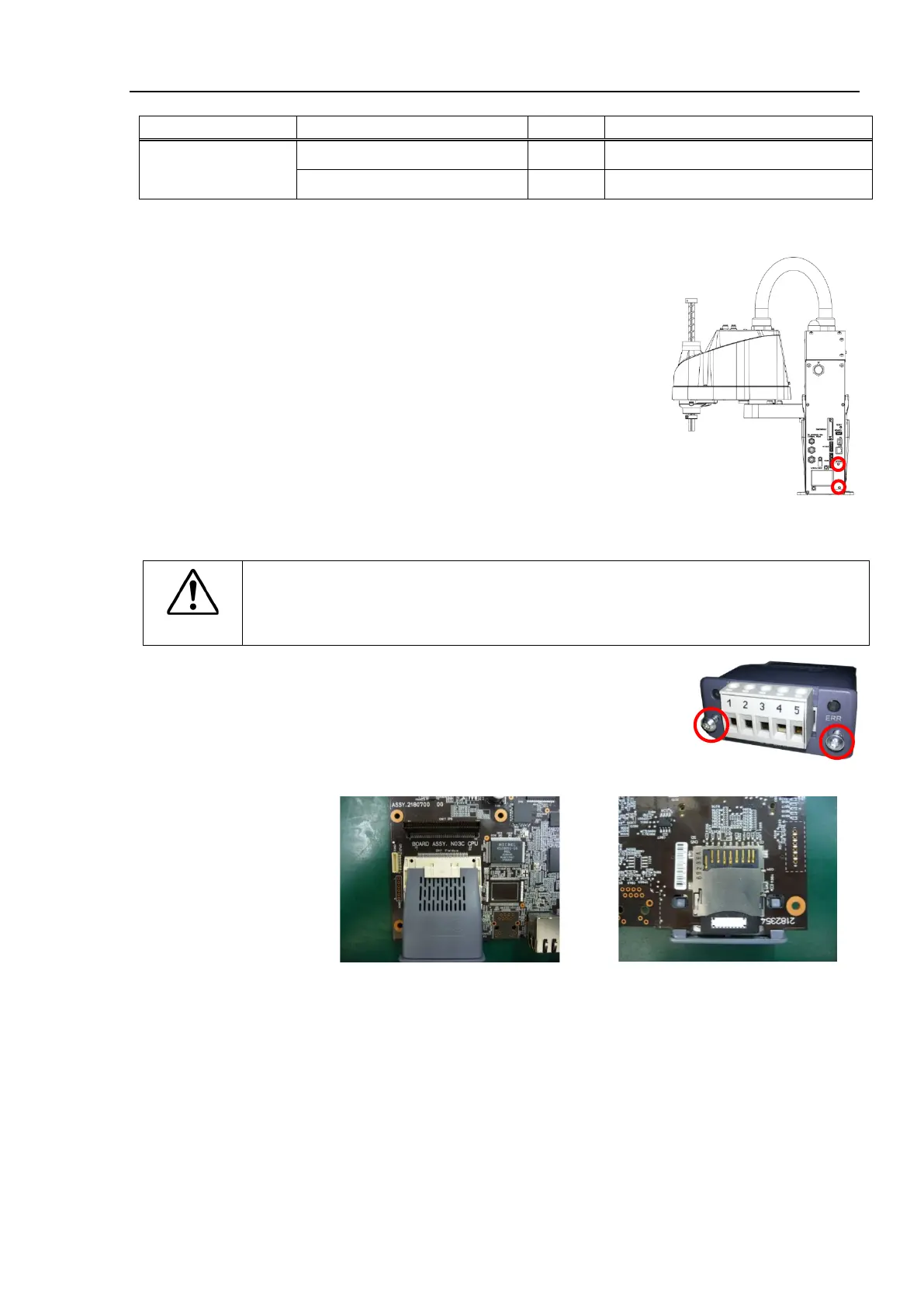

Fieldbus
I/O Module
Installation
(1)
Turn OFF the Manipulator.
(2)
Remove the optional slot cover on the back face of
the Manipulator.
Sems bolt: 2-M3×6
(Illustration: T3-B401S)
(3)
Inset the fieldbus I/O module to the option slot.
CAUTION

Check the clips of the fieldbus I/O module are securely hooked on the board when
installing fieldbus I/O module. If clips do not be hooked securely, connector or
fieldbus I/O module may get damages.
(4)
Tighten screws by using special tool until fieldbus I/O
module is fixed completely.
Image of installation
Front
Back
Fieldbus
I/O Module
Removal
(1)
Unscrew the screws by using special tool until fieldbus I/O module is loosened.
(2)
Remove the fieldbus I/O module.
You can remove the module by pulling loosened screws toward.
(3)
Mount the option slot cover.
