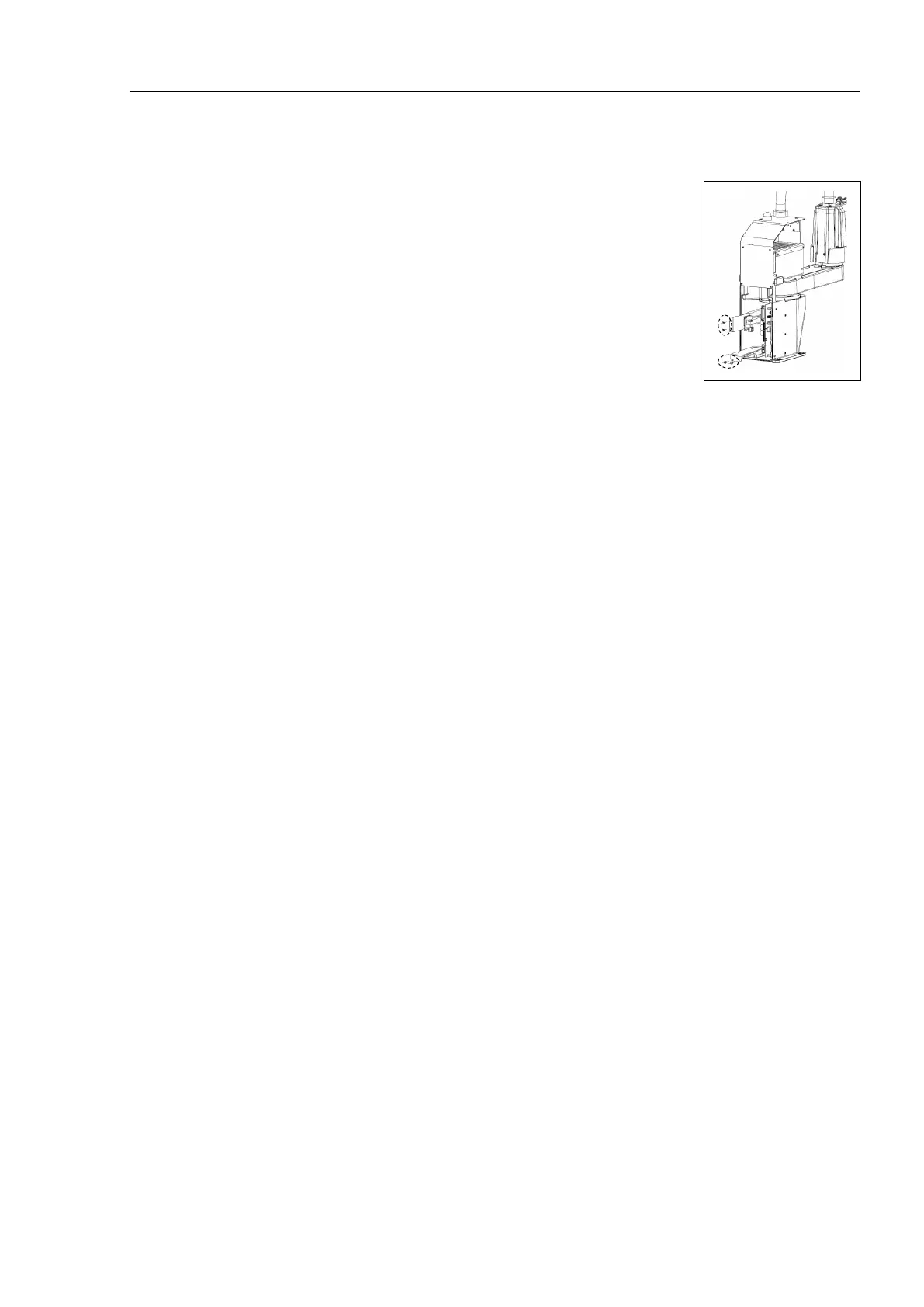

T3-B T6-B Maintenance 8. Cable
T-B series Maintenance Manual Rev.1 53
(13)
T3
-B : Mount base side cover.
Reference: 7.6 Base Side Cover
T6
-B : Mount the joint #1 AMP board plate and the
regenerative resistor plate.
Connect the connector of regenerative resistor
junction cable.
Mounting bolts: 4-M4×8 Sems
(14)
Bind the cables with a wire tie as removed in the
removal step (6).
(15)
Place and secure the arm top cover without the cables being stuck.
Reference: 7.1 Arm Top Cover
(16)
Mount the power unit cover.
Reference: 7.5 Power Unit Cover
(17)
Mount the connector plate.
Reference: 7.4 Connector Plate
