T3-B T6-B Maintenance 8. Cable
52 T-B series Maintenance Manual Rev.1
(9)

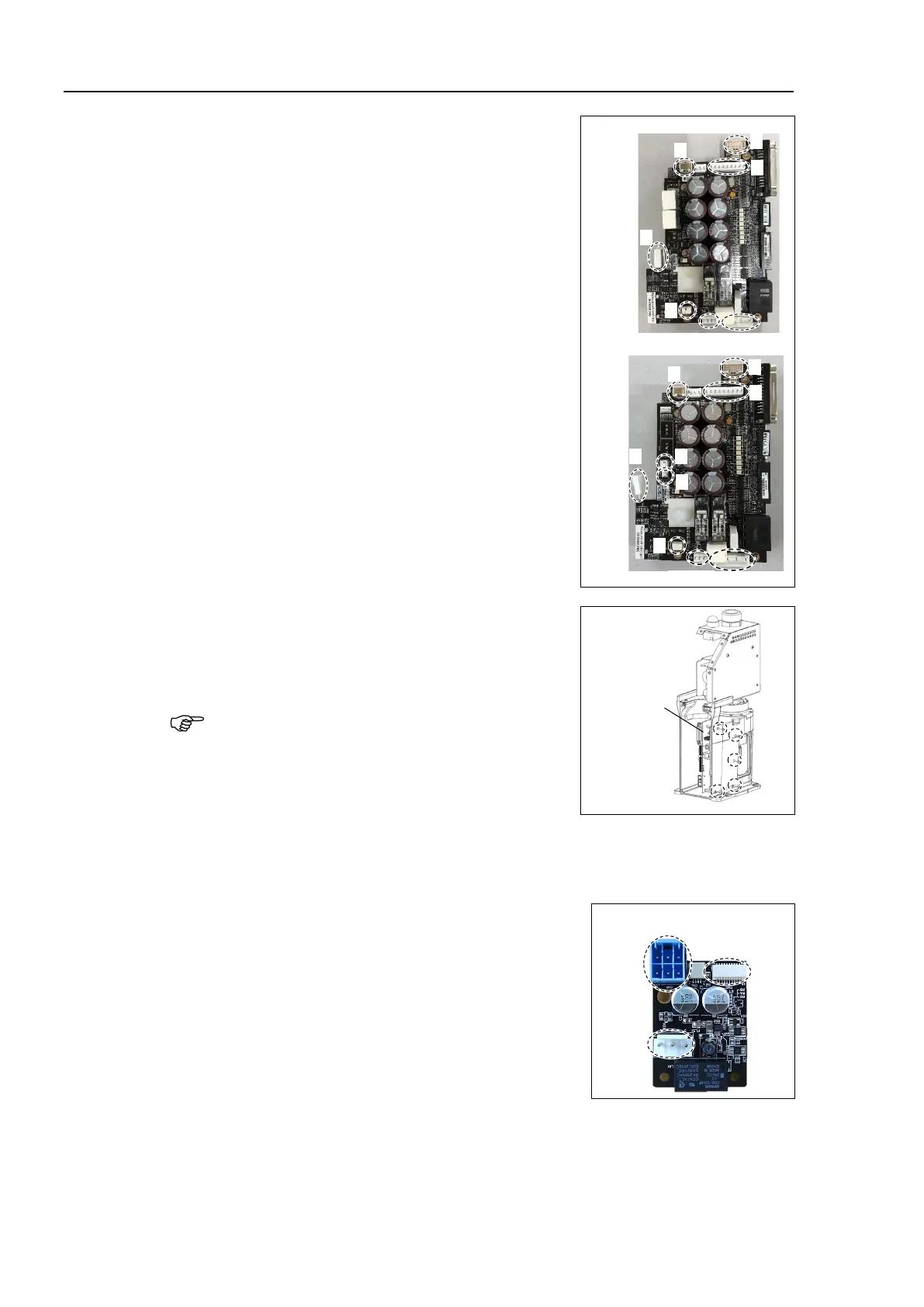

Connect CPU/DPB board connector.
A: Power connector (IN/OUT ×1 for each)
B: Power cable connector (×1)
C: Signal cable connector
D: Hand I/O connector
E: LED connector
F: Regenerative resistor 1 (T6-B only)
G: Regenerative resistor 2 (T6-B only)
H: Battery connector
E
D
B
C
A-OUT
A-IN
T3-B
H
E
D
B
C
A-OUT
A-IN
F
G
T6-B
H
(10)
Mount CPU/DPB board to base.
Hexagon socket head cap button bolt: 5-M3×5
Tightening torque: 0.45± 0.1 N·m
Attach the radiation sheet on the back side of the
CPU/DPB boards when mounting.
CPU/DPB
Board
(11)
Connect the following parts to the inside of the connector plate.
Air tube
TP connector
(12)
Connect the AMP board connector.
A: Power cable connector
B: Signal cable connector
C: Motor connector
A
B
C

NOTE
