Connecting the Printer to the Host Computer
For Serial Interface

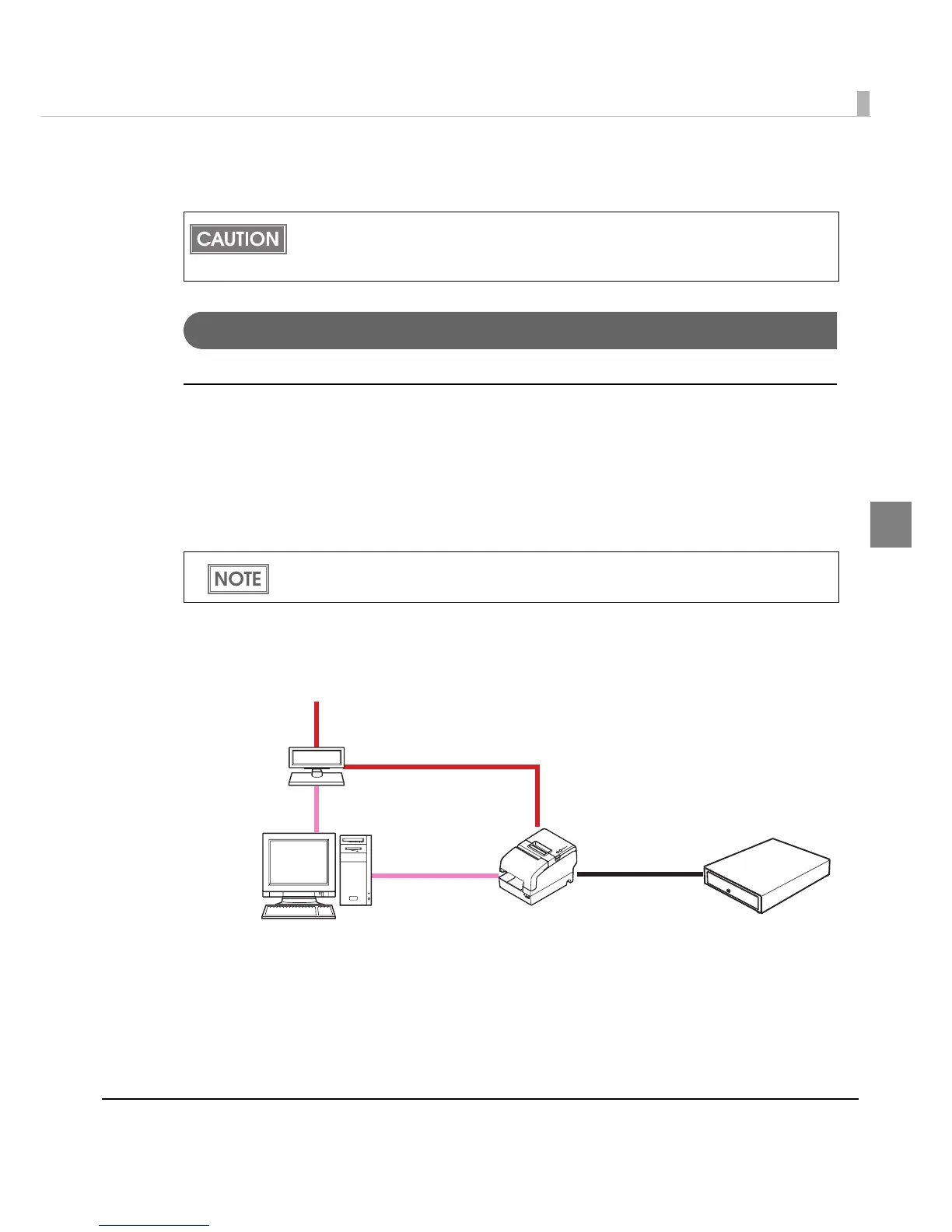

Serial interface connection diagram
When this printer and the customer display (DM-D) are connected to a host computer by the
serial interface, three connection forms are possible:
•Stand-alone connection
• Pass-through connection
•Y connection
Stand-alone connection
This printer is connected to the host computer via the serial port. When a customer display
(DM-D) is to be connected, connect it to the host computer via the serial port.
• Be sure to install the driver before connecting the printer to the host computer.
• The printer uses modular connectors specifically designed for the cash drawer and the
customer display. Do not connect an ordinary telephone line to these connectors.
The modular cable is connected to the cash drawer and/or the customer display.
TM-H6000IV
DM-D
Serial cable
Cash drawer
Serial cable
Modular cable
Extension cable for power supply
Power supply unit + AC cable
