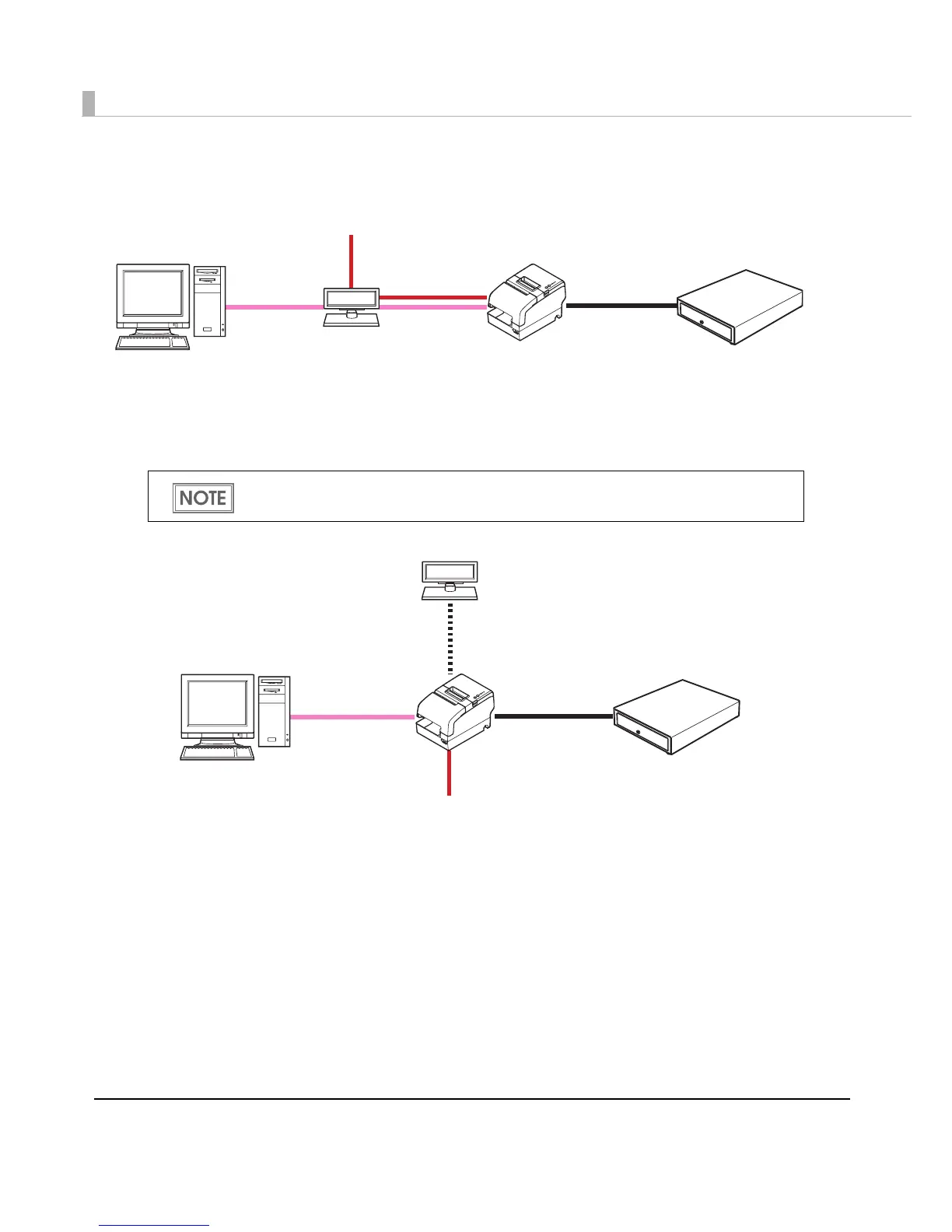

Pass-through connection
This printer is connected to the host computer over the serial interface via a customer display
(DM-D).
Y connection
This printer is connected to the host computer via the serial port. When a customer display
(DM-D) is to be connected, connect it to the printer via the modular cable.
A mount-type customer display also can be directly connected to the printer.
DM-D
TM-H6000IV
Cash drawer
Serial cable Serial cable
Modular cable
Power supply unit + AC cable
Extension cable
for power supply
TM-H6000IV
DM-D
Serial cable
Modular cable
Modular cable
Cash drawer
Power supply unit + AC cable
