Chapter 2 Setup
2

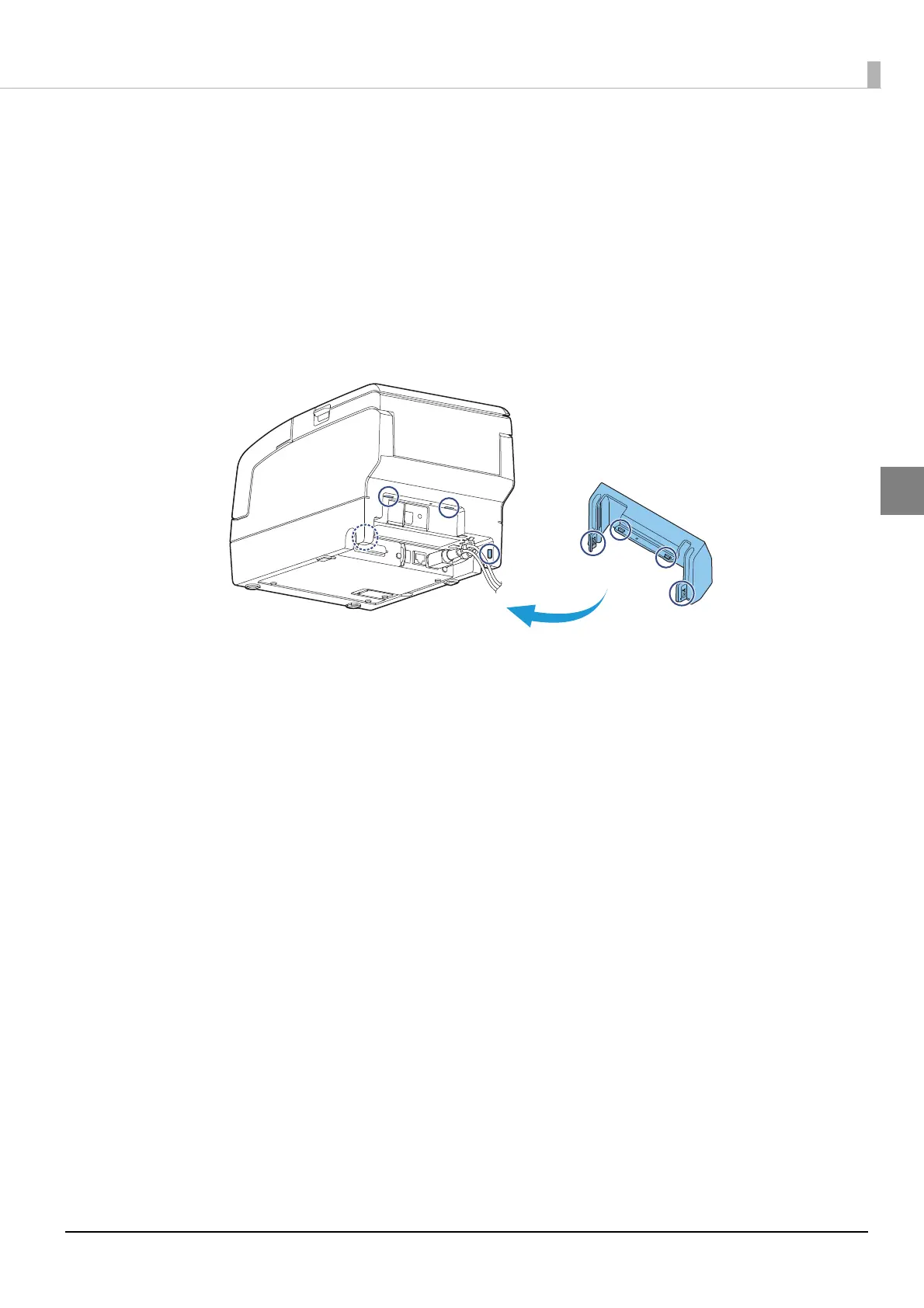

Attaching the Connector Cover
Follow the steps below to attach the connector cover to protect cables.
1
Align 2 projections on the top of the connector cover with holes in the back of the
printer.
2
Push the connector cover forward so that the projections at the bottom of the printer
fit properly in the holes in both sides of the connector cover.
To remove the connector cover, push both sides of the cover inward to remove the holes in both sides of the
cover from the projections at the bottom of the printer.
