Removing jammed paper from the rear cover

WF-7610 Series/WF-7620 Series

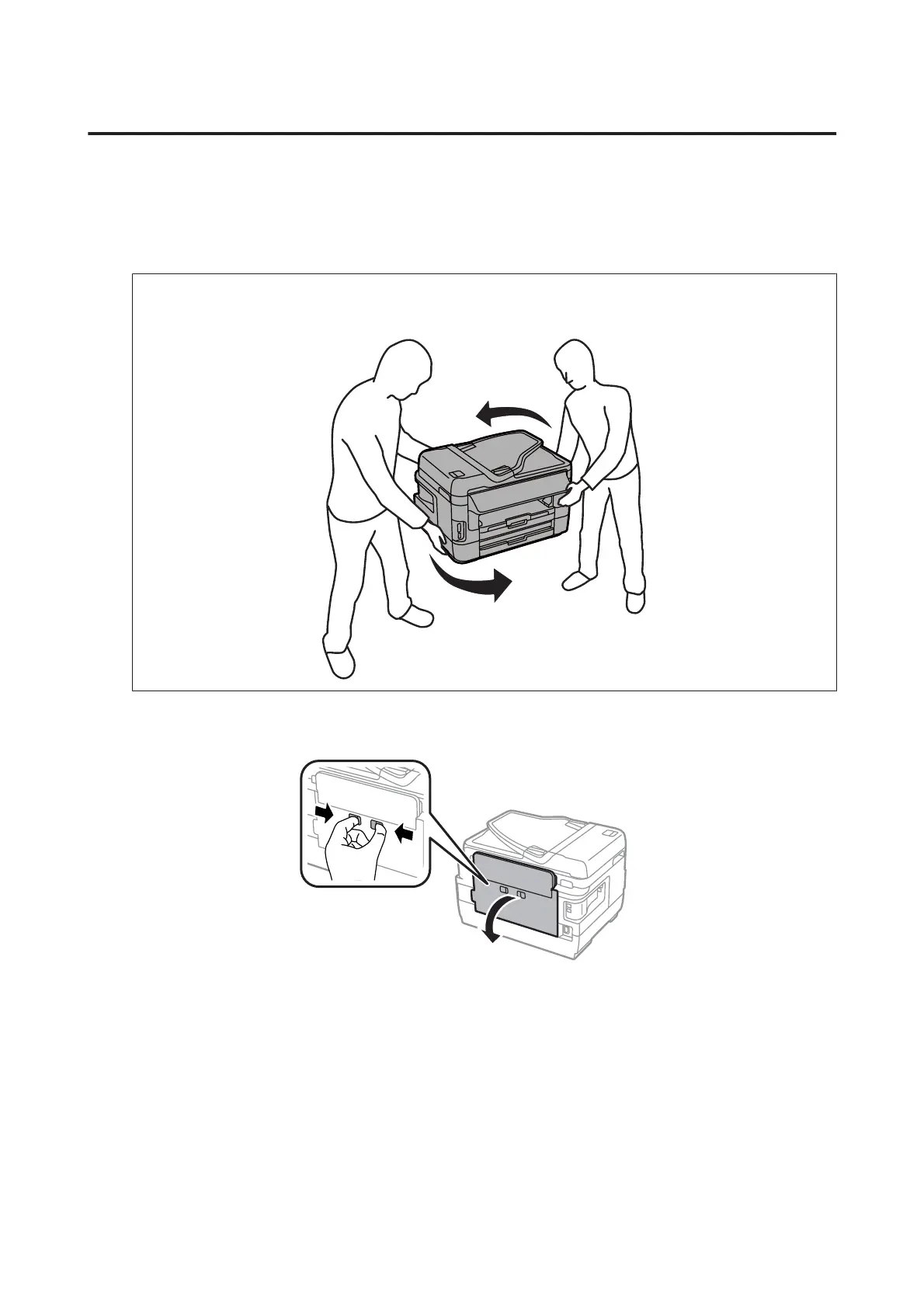

Turn the product around.

Note:

If you need to change the position of the product, two people are required to lift the product.

Open the rear cover 1.
