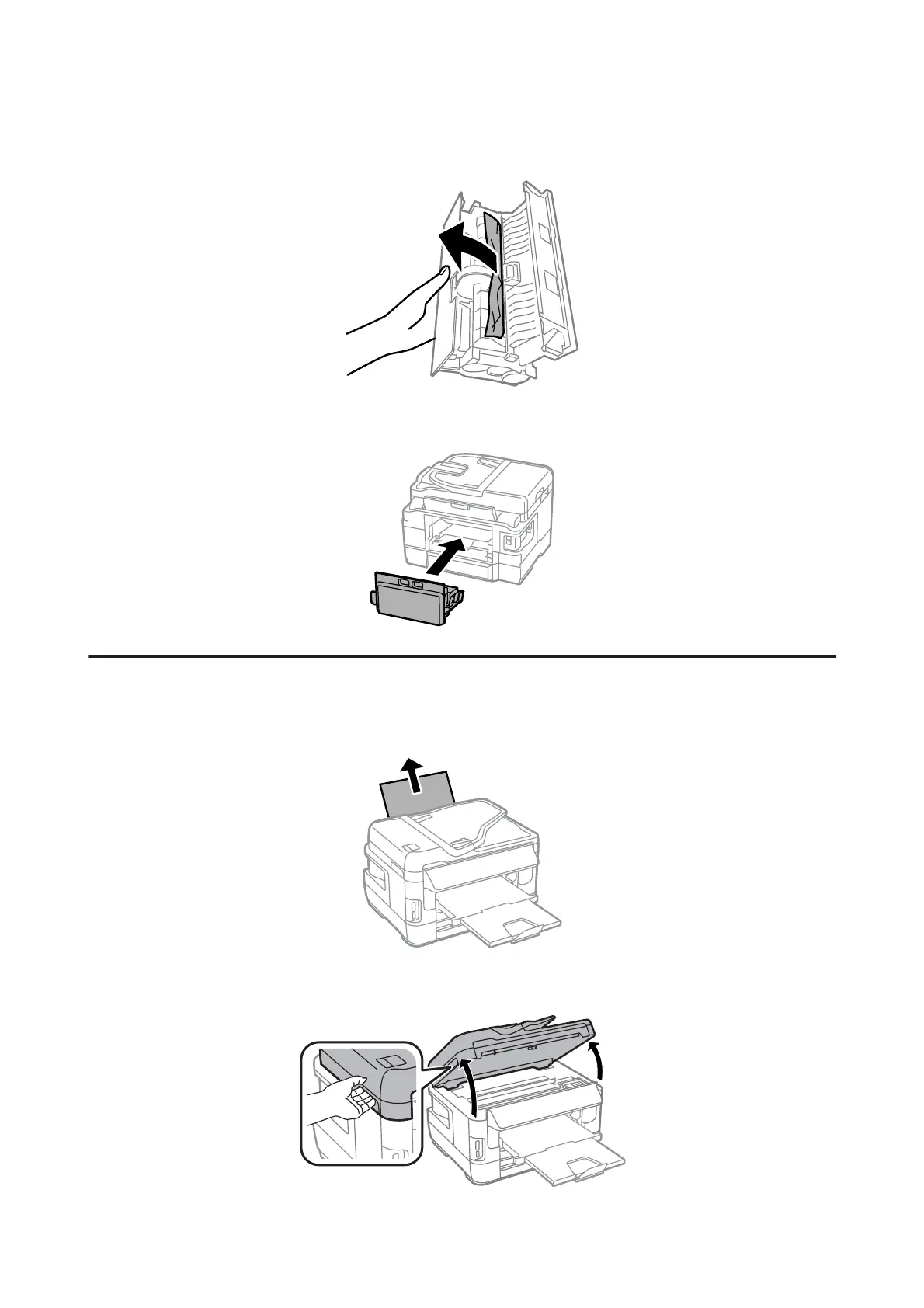

Carefully remove the jammed paper.

Reattach the rear cover.

Removing jammed paper from inside the product

Carefully remove the jammed paper.

Open the scanner unit.

User’s Guide

Troubleshooting for Printing/Copying

167
