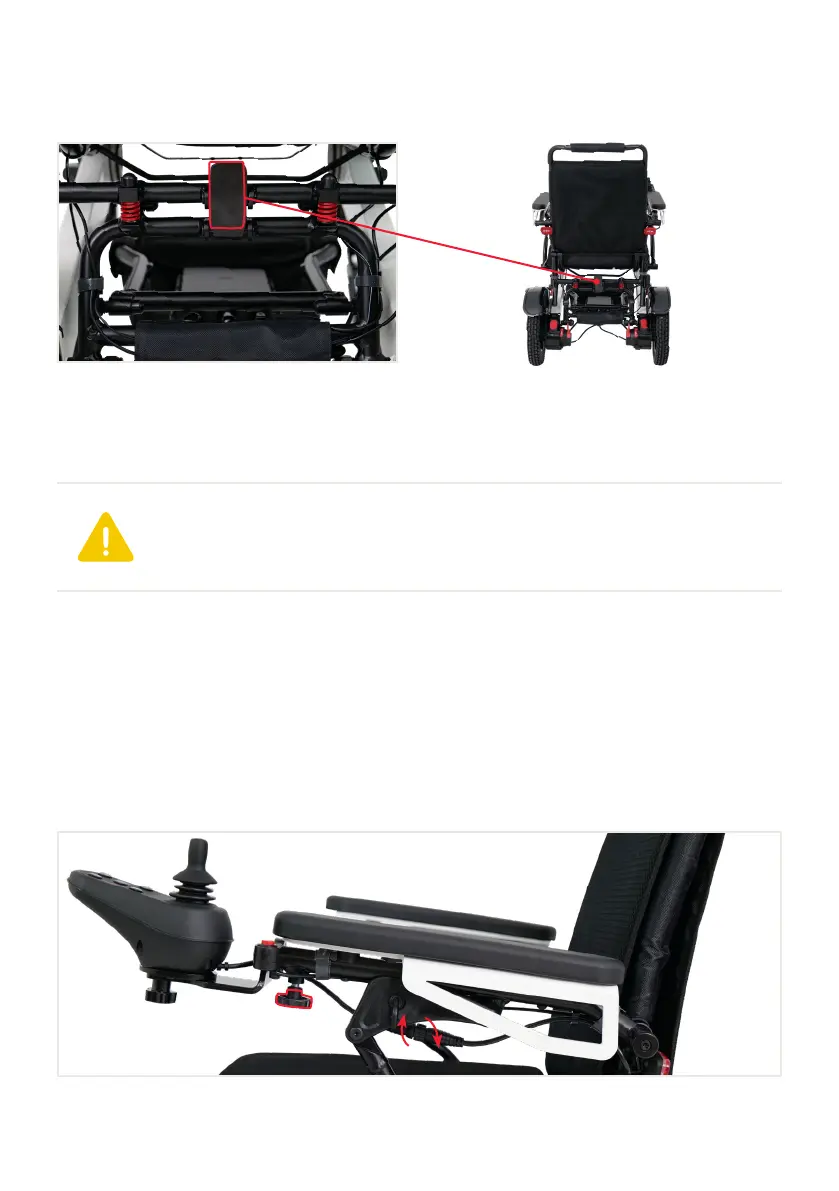

Image 5: The coupling lock
6.2. Assembling the operating module
CAUTION
Sensitive components
Be careful when connecting the operating module to the wheel-
chair. The plug connection consists of sensitive components and
can easily be damaged.
To assemble the operating module, proceed as follows:
1. Insert the mounting rod of the operating module into the mounting opening of the armrest.
2. Turn the adjustment screw below the armrest clockwise so that the control module no longer
has any play.
3. Connect the operating module cable to the connection cable of the wheelchair.
Turn the locking ring clockwise until it noticeably clicks into place.
4. Adjust the position of the operating module to your forearm length.
The operating module is mounted and ready for use.
Image 6: Fixing and connecting the operating module
ergoflix.de | 29
