6.6. Changing the batteries
To replace one of the batteries, proceed as follows:
On the inside of the battery frame, press the push button and pull the battery out of the frame at
the same time.

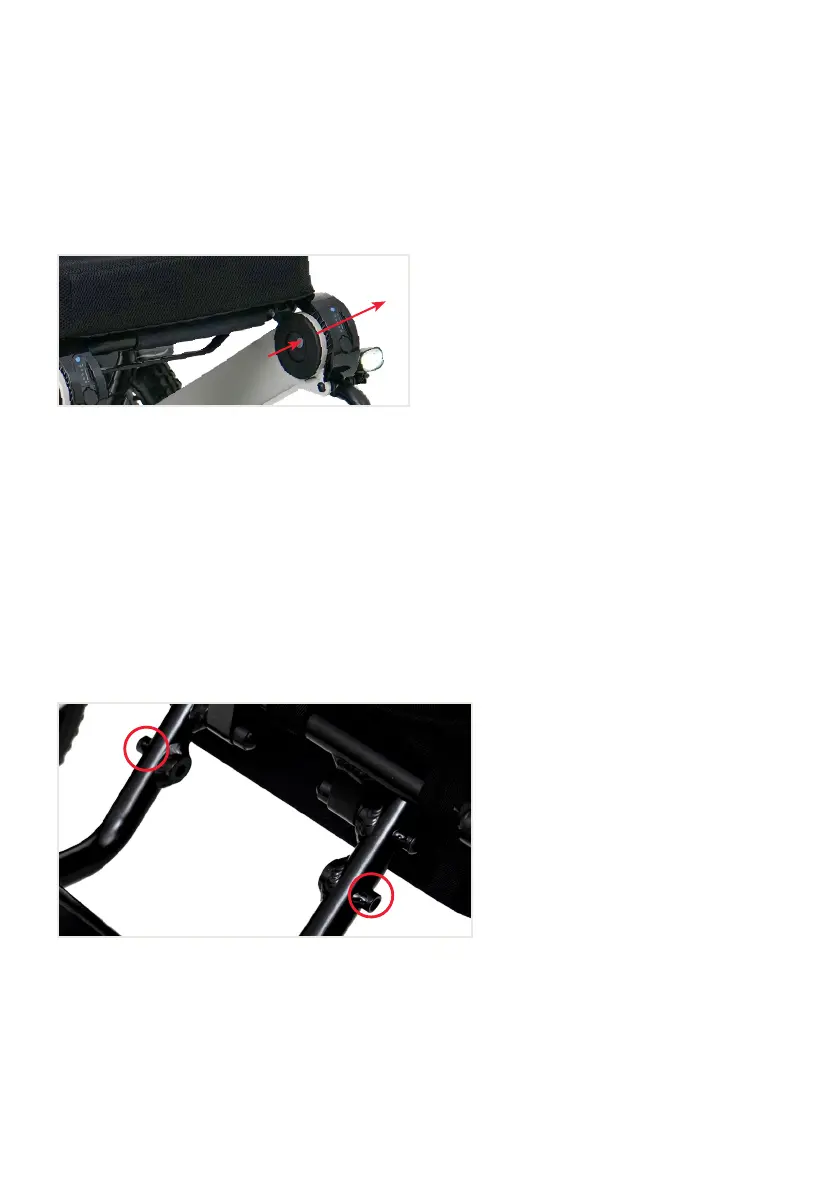

Image 9: Changing the battery
The replacement battery can now be inserted
into the battery frame. Please make sure to
differentiate between left and right batteries.
6.7. Adjusting the height of the footrest
The height of the wheelchair footrest can be adjusted.
To adjust the height, proceed as follows:
1. Loosen the two screws of the footrest.
2. Loosen the footrest and position it at the desired height.
3. Fasten the screws and make sure that the footrest can still be folded up or down.
The height of the footrest has been adjusted.
Image 10: The screws on the footrest
ergoflix.de | 35
