Escea DS1150 - Page 19

C
19
630791 DS MKII INSTALLATION MANUAL
290
229.1
ø226.8
31.6
221.8
250.2
31.6
103.4
TIMBER MUST NOT
OBSTRUCT THESE ZONES

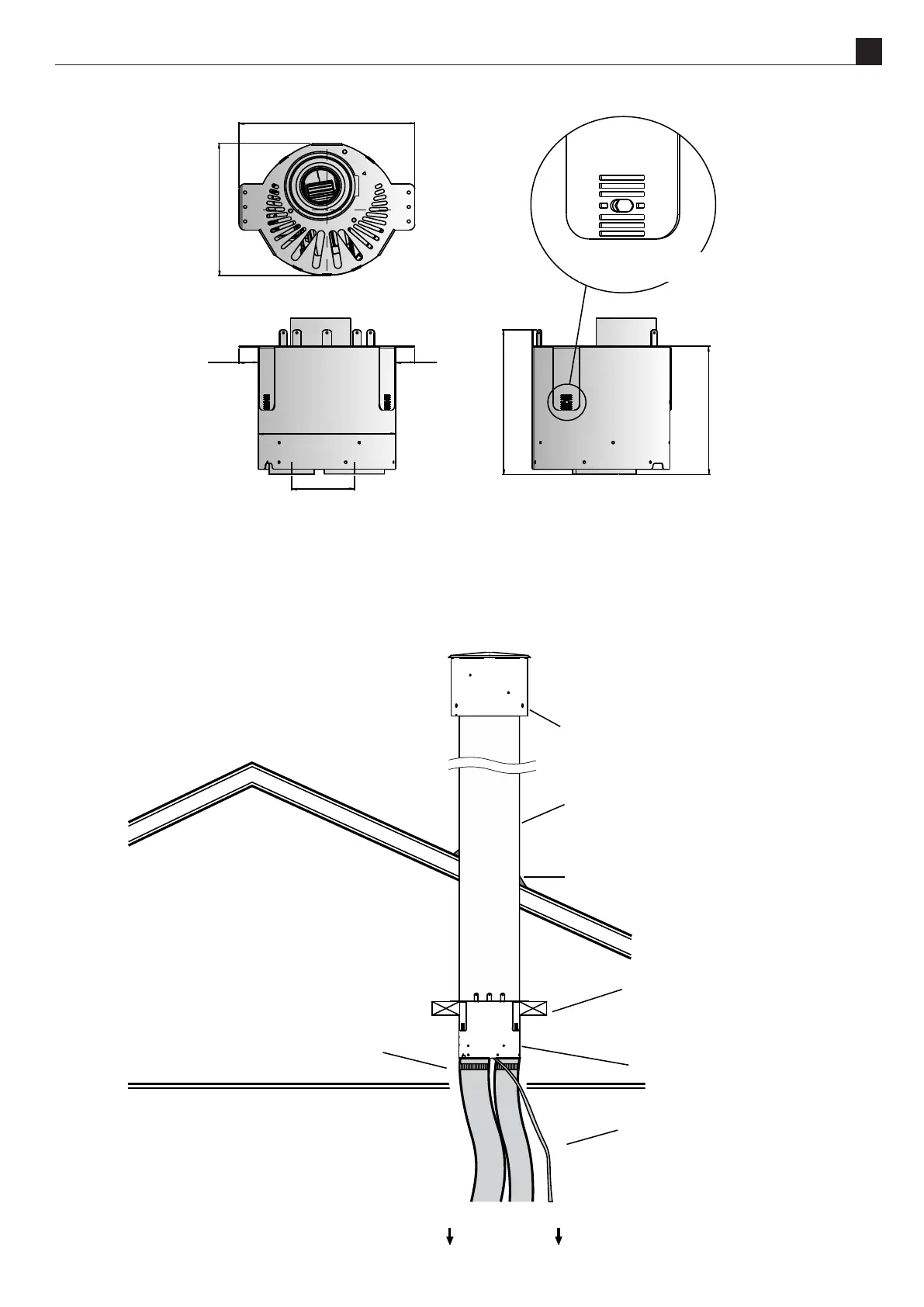

The UVP-Internal kit is intended for use within an accessible roof space or ‘chimney’ construcon.

Ensure installaon complies with relevant building codes and regulaons
To appliance
UVP Cowl
‘Decktite’ or similar ashing
1.2m F-F Liner
Hose band clamps
Ø75mmØ100mm
Ensure Power Flue unit
is securely braced using
integral brackets.
Roof Space
Power cord to
appliance
UVP Fan Unit
