630791 DS MKII INSTALLATION MANUAL
F7
If using the crystalight or coal fuel beds, place all the crystalight/coal pieces in a single layer atop the burners
and fuelbed tray. Cover the enre area except for the pilot shield, ensuring coverage right up to the edges of the
rebox or glass.
Do not heap or mound any fuelbed.
F8

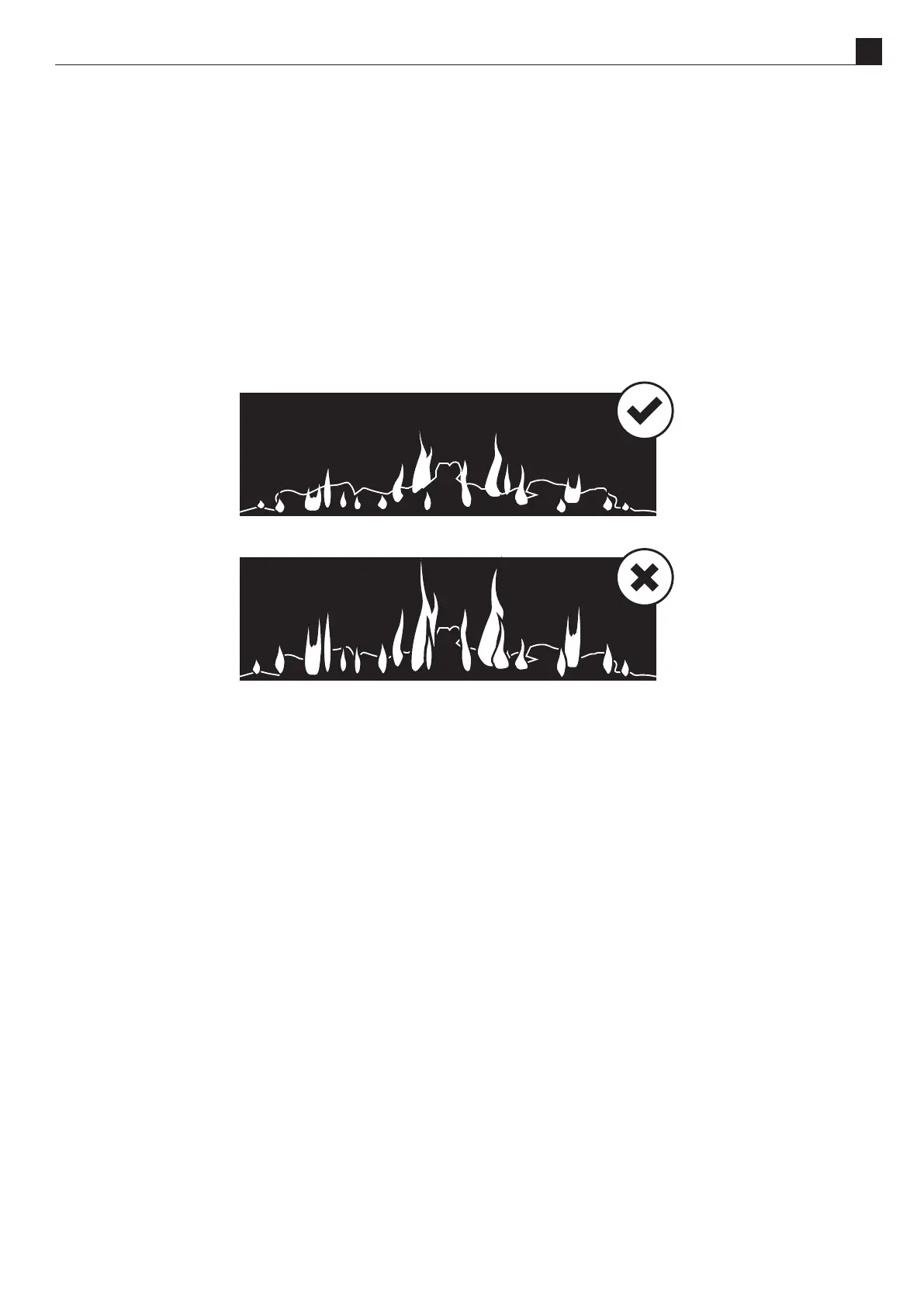

An abnormal ame paern will look long and stringy; it may cause soot to build up inside the rebox.
An abnormal ame paern will likely be the result of incorrect sengs (jet size, burner aeraon collar). Check
that these are correct before proceeding. If an abnormal ame paern is sll present, please contact Escea.
It is the responsibility of the installer to ensure a correct ame paern.
F9 Wall Linings
The nal wall lining can only be commenced aer all previous applicable secons have been completed.
The appliance must be installed prior to and behind the nished wall surface. Allow clearance for any
plasterboard, les, or other nishing materials that may be intended for the nished wall surface. Wall nishing
materials must not encroach upon the minimum cavity clearances given in previous secons. The wall board
that lines the outside of the opening can be normal plaster board and does not need to be non-combusble.
The plasterboard is to protrude beyond framework as shown in the following diagram.
