NOTE:
1) Should the ue not extend past the apex, the boom opening of the ue should extend at least 200 mm
from the roof (or 300 mm in regions with heavy snow).
2) The installaon of a ue into a carport is not recommended.
3) The ue terminal will get very hot when in use. Precauons should be taken to protect people and
animals from injury.

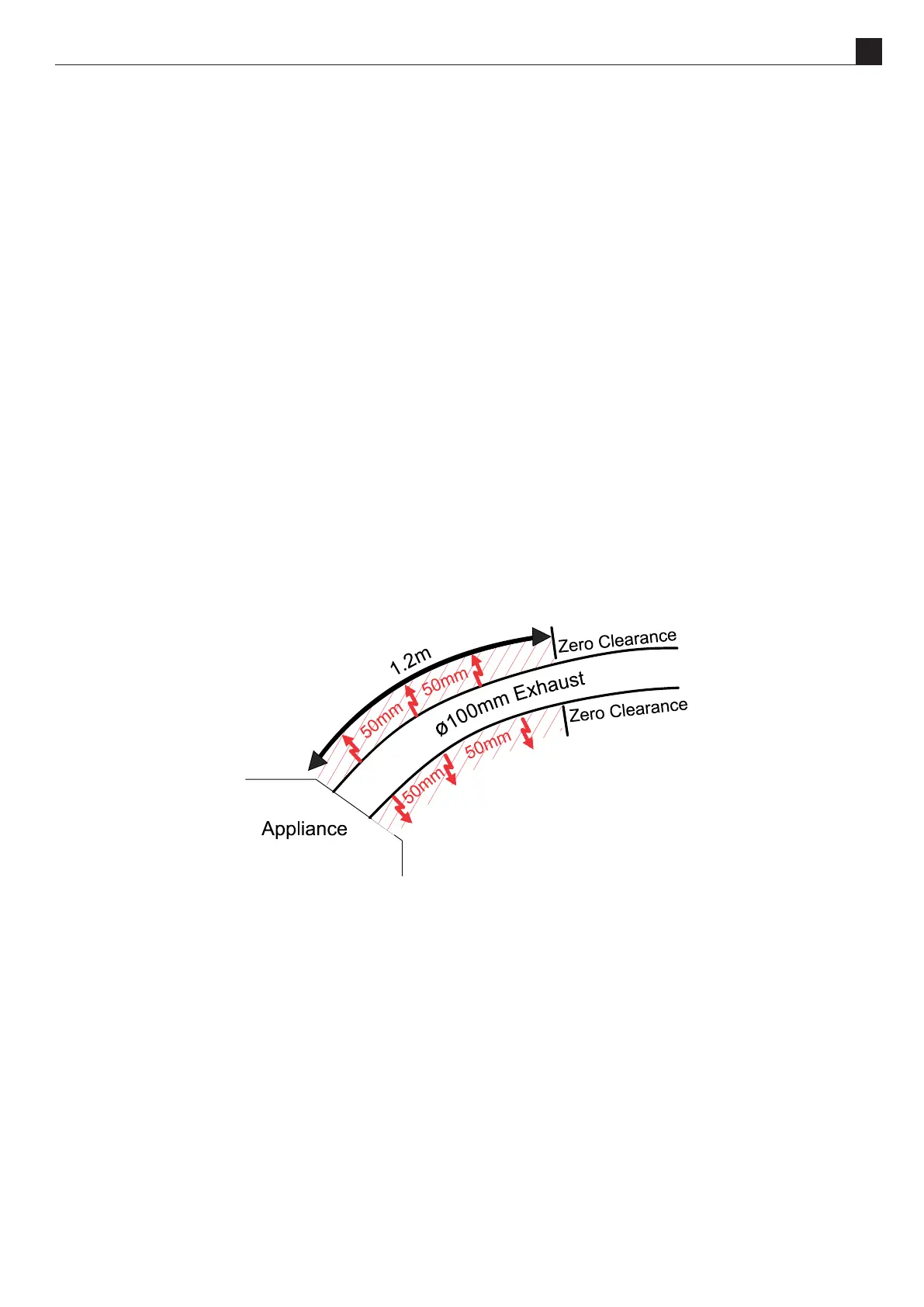

C7 Running the Flue
Run the 100 mm and 75 mm exible aluminium hoses from the cavity to the rear of where the horizontal or
vercal powerue terminal will be installed. Allow enough stretch in the exible aluminium ue to allow it to
protrude through the wall/ceiling/roof/ue liner to enable it to be connected to the powerue terminal. The
ue should be expanded at each end in order for the ue to be aached to the re/powerue. It is advisable
to secure the exi ue at regular intervals to prevent vibraon, movement and sagging. Steel wire or ‘builders
strapping’ may be used for this purpose.
NOTE: The exible ue is shipped in a ‘compressed’ form. Extend it to your desired length by stretching.
C8
NOTE: The powerue terminal is powered from the appliance and must be connected to the appliance with
the supplied electrical cable only.
The supplied electrical cable is 7 metres long; ue extension kits also include a powerue electrical cable
extension.
Run the electrical cable from the installed replace to the hole in the outside wall. Ensure it is not draped over,
or in contact with, the outer shell of the appliance or the ues. The cable must be kept clear from any other
possible heat sources, sharp edges, or moisture. Fix it appropriately and allow enough cable to be able to pull
both the appliance and the powerue terminal out from their installed posions.
