00,00
POWER
kW
ENERGY
00,00
kWh
0:00:00
TIME
hour
CHARGE
INTERRUPTED
00,00 00,00
kW
00,00
kWkW
GRID
POWER
CAR
POWER
HOME
POWER
READY TO PLUG OUT
00,00
POWER
kW
ENERGY
00,00
kWh
0:00:00
TIME
hour
SUSPENDED CHARGING
THANK YOU

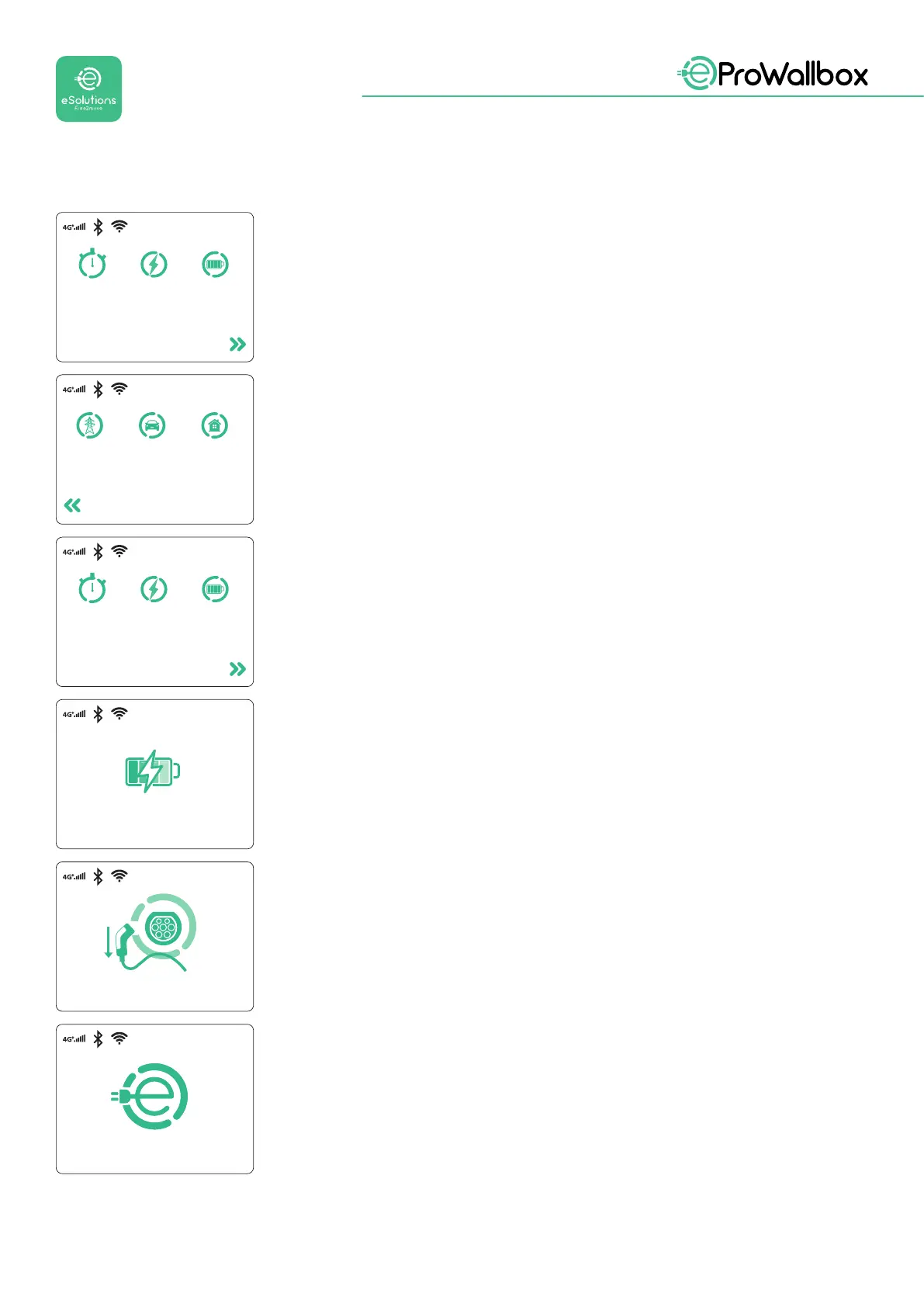

This screen displays the DPM information for the session in
progress:
• GRIDPOWER:contractualpowervalue
• CARPOWER:powerabsorbedbythevehicle
• HOMEPOWER:powerabsorbedbydomesticloads
The charging process has been interrupted.
This screen indicates that the charging process is complete, the
wallbox will soon enter standby mode.
Thisscreendisplaysthewoftheongoingsession:
• TIME:Durationofthesession
• ENERGY:Energyabsorbedbythevehicle
• POWER:Currentchargingpower
IftheDPMfunctionisenabledthearrowsonthebottomrightwillbe
present.
This screen will be shown when the charging session is suspended
bytheDPMortheEV.Thechargingsessionmayresume.
This screen instructs the operator to remove the cable when the
charging process is over.
