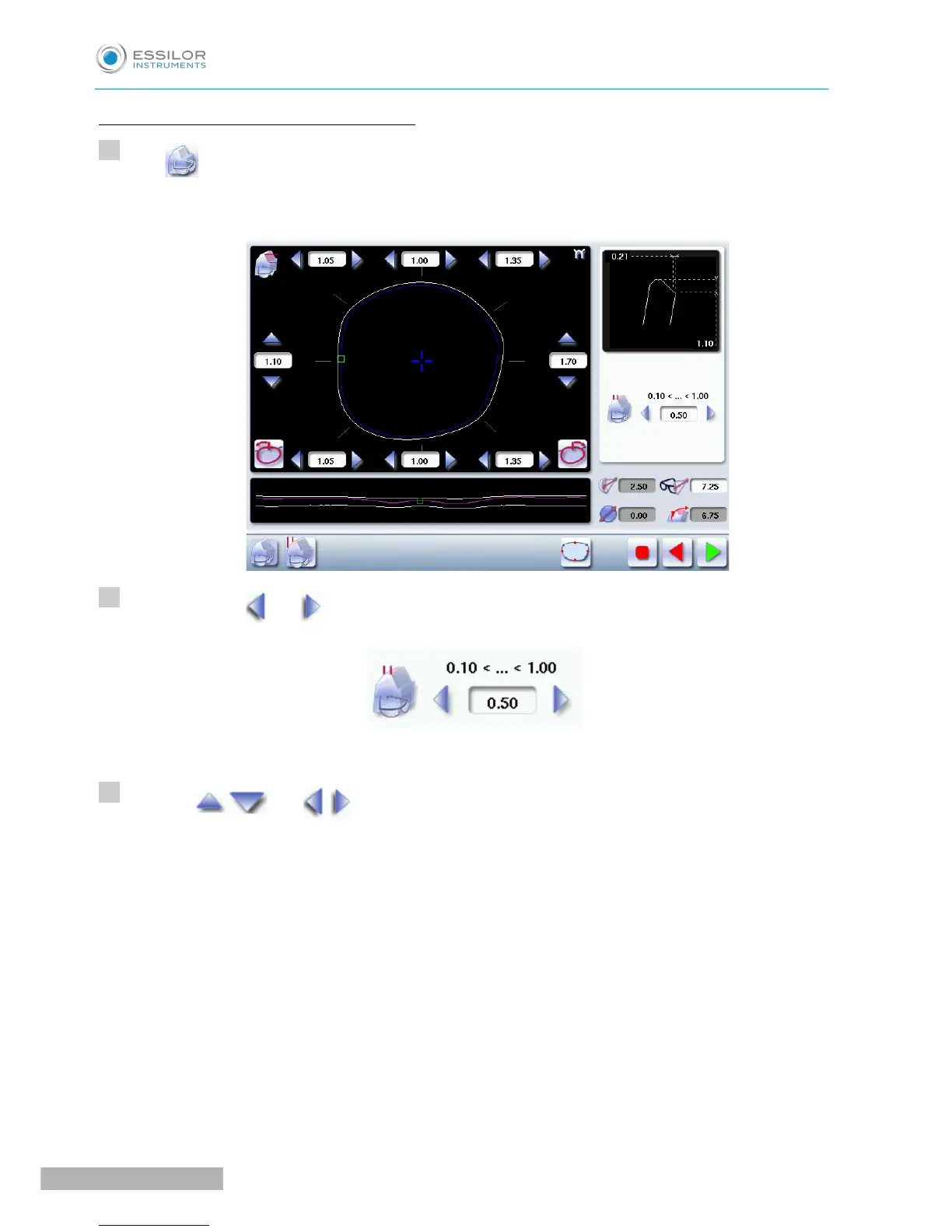

High-base bevel in “automatic trajectory” mode
Press to select the bevel in “automatic trajectory ” mode.
The following screen will appear:
Press the buttons and on the right of your screen to modify the width of the flat side of the bevel.
The result can be viewed in the zoom window.
Press the and buttons to modify the shelf bevel value at each point of the shape in
each area:
• Temporal
• Mid-temporal
• Nasal
• Mid-nasal
• Upper
• Mid-upper
• Lower
• Mid-lower
>
>
1
2
3
Pro-E 600_Pro-E 700 > v1 -10.18
36
USER MANUAL> II. EDGING A LENS
