The pen clip is also

disconnected for shipping.

2 mm ball-end

hex wrench

Thumbscrew

Vertical slide

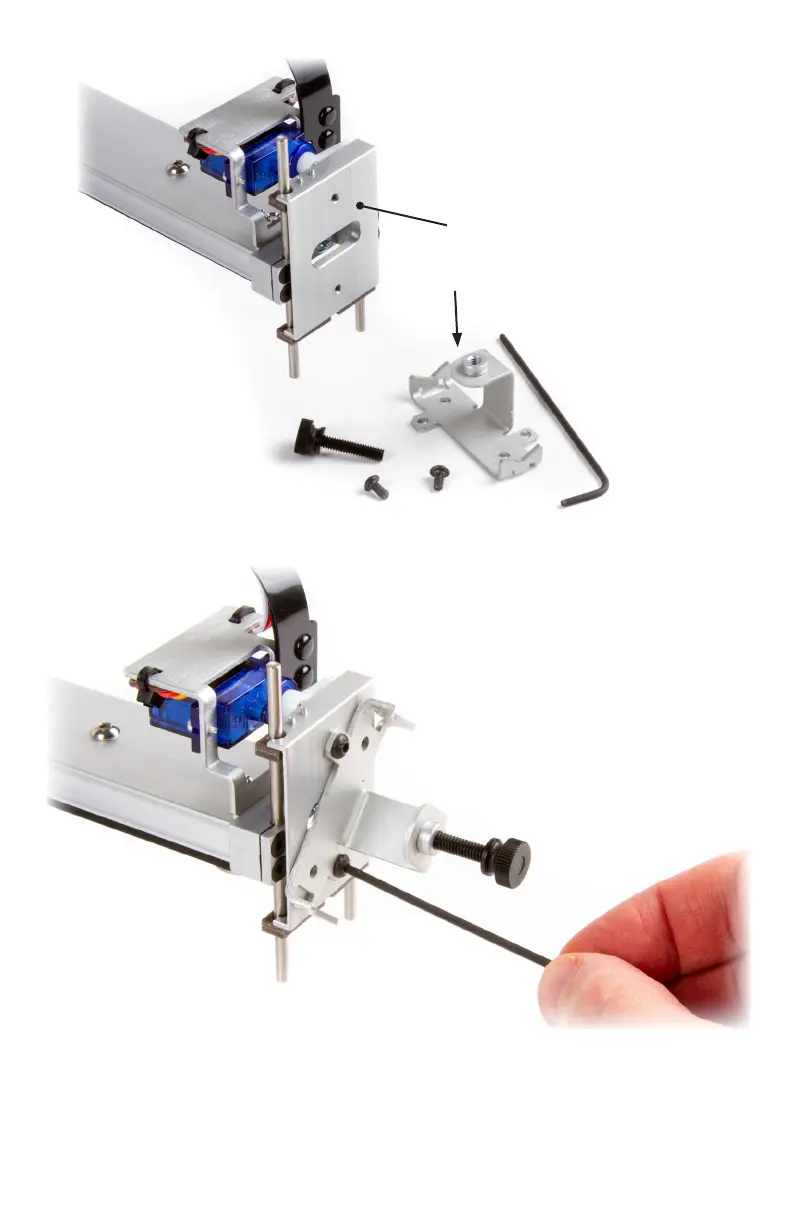

Thread the black plastic thumbscrew into the pen clip.

Attach the pen clip to the vertical slide with the two small black M3 screws, using

the 2 mm hex wrench, which has a ball end for easier access. The pen clip may be

attached either in a vertical or diagonal orientation, depending on what kind of a

writing implement you are using.

Pen clip

M3 Screws
