74
11.12 Vectorizing images
The process of turning images (JPG, PNG, photoshop files, etc) into vector art-
work is generally outside the scope of the AxiDraw software. That said, how to do
so is a frequently asked question so we are including some notes on the subject.
The process of converting a photograph into a piece of pen-ready vector line art
can most accurately be described by the word “sketching.That is to say, it is not
so much a matter of file conversion as one of artistic interpretation. There are
genuinely a limitless number of ways to represent a photo with a set of strokes.
Artists that work with plotters often write their own programs to perform this
kind of conversion, and we will point out a few of these programs.
Inkscape includes a vectorizing tool, found in the menu at Path > Trace bitmap.
It works by tracing the outlines of darker regions. It does work, and is some-
times useful for very simple shapes, but it generally does not produce high quality
output that works well on plotters. You may end up with (for example) ghostly
eects, or tens of thousands of tiny little loops that represent stray pixels on the
input photo.
While this is nowhere near a comprehensive list, here are three examples of out-
put from dierent vector “sketching” programs. All three of these are free pro-
grams that are written and run in the Processing development environment.

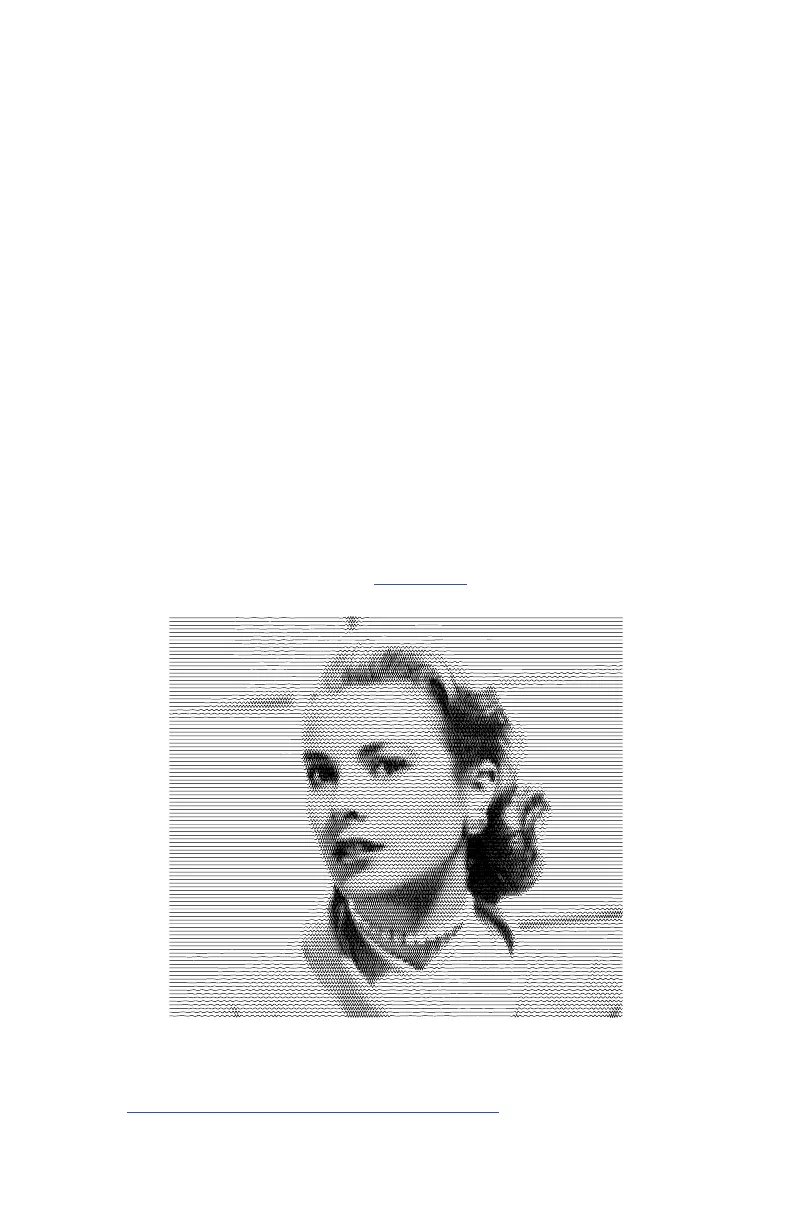

This portrait was generated from an image with SquiggleDraw, available at:
https://github.com/gwygonik/SquiggleDraw
