23
4-3-2. Testing Confine
1. Test of Main Motor

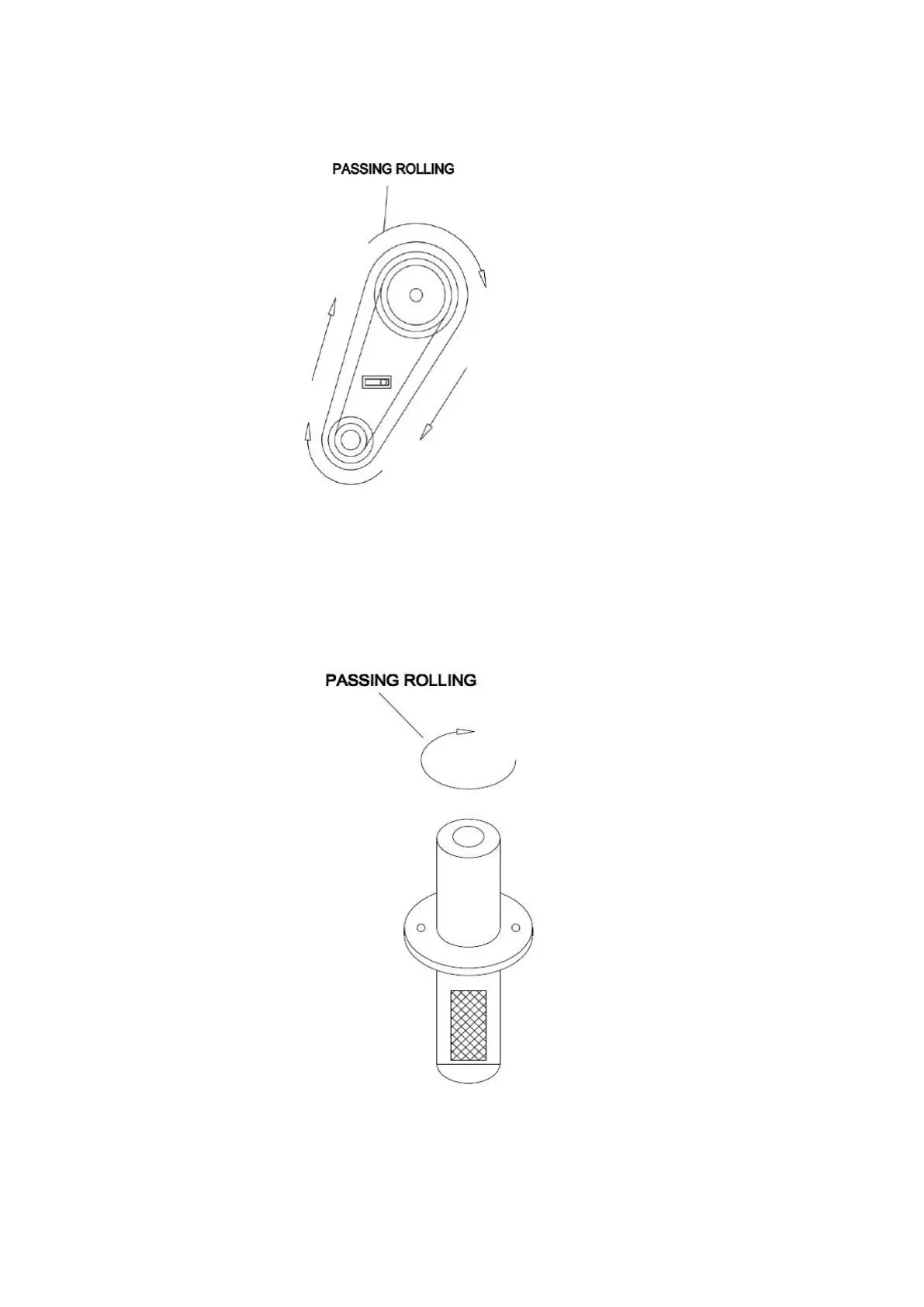

Turn on the power, power lamp lighting, press “START” button, ensure the rotation being the same
direction with the above figure, turn off the power and change the two power cables mutually, otherwise.
2. Test of Water Pumping Motor
a. Under normal rotation of man motor, to open left side cover, insides are pumping motor and pumper.
b. Ensure the normal rotation direction shown as above figure.
c. Otherwise, change the two cables mutually inside.
