Excel KP-200 - Model: KP-200, Measure Bar Assembly

85

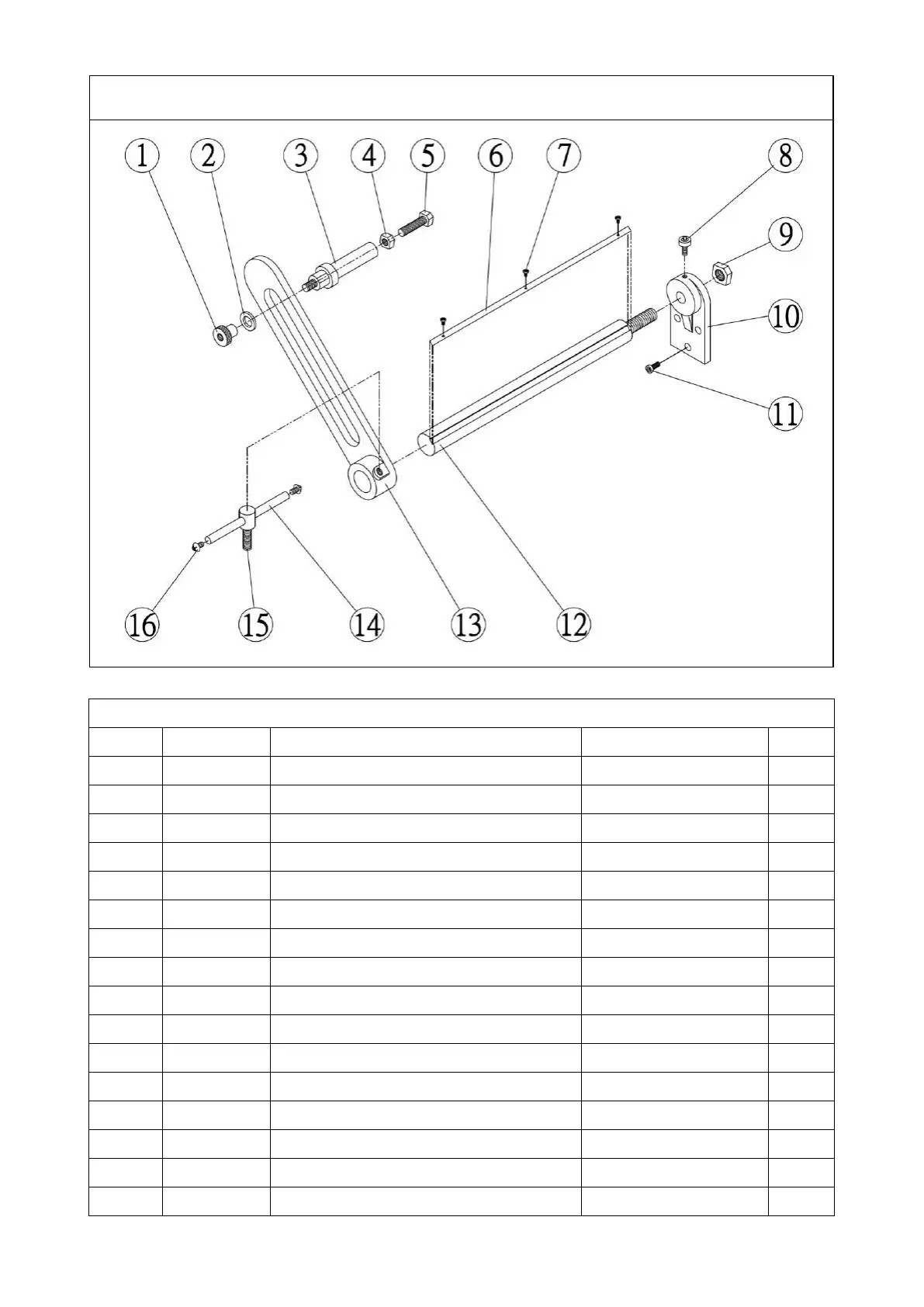

Model: KP-200 Title: MEASURE BAR ASSEMBLY Drawing No.: M-092007
ITEM
PART NO.
DESCRIPTION
SPECIFICATIO
Q’TY
1
P-20404
NUT
1
2
W-20-08
WASHER
Ø 14.5
1
3
P-20405
LENGH FIXED ROD
1
4
N-10-05
NUT
M8*1.25
1
5
S-05-05
HEX HEAD CAP SCREW
M8*1.25*30
1
6
G-18-01
STELLNESS MEASURE
14*0.5*450
1
7
T-18-01
RIVIT
Ø 2.1*6
3
8
S-05-12
HEX SOCKET CAP SCREW
M8*1.25*30
1
9
N-11-03
NUT
3/4”-16 UNC
1
10
P-25402
MEASURE BAR HOLDER
1
11
S-05-09
HEX SOCKET CAP SCREW
M8*1.25*16
3
12
P-25401
MEASURE BAR
1
13
P-25403
FRAME
1
14
P-25404-2
HANDLE
1
15
P-25404-1
FIXED SCREW
1
16
S-04-14
“+” ROUND HEAD SCREW
M6*1.0*10
2
15-7 Model: KP-200 Title: Measure Bar Assembly Drawing No.: M-092007
