12
2-5. Protective device

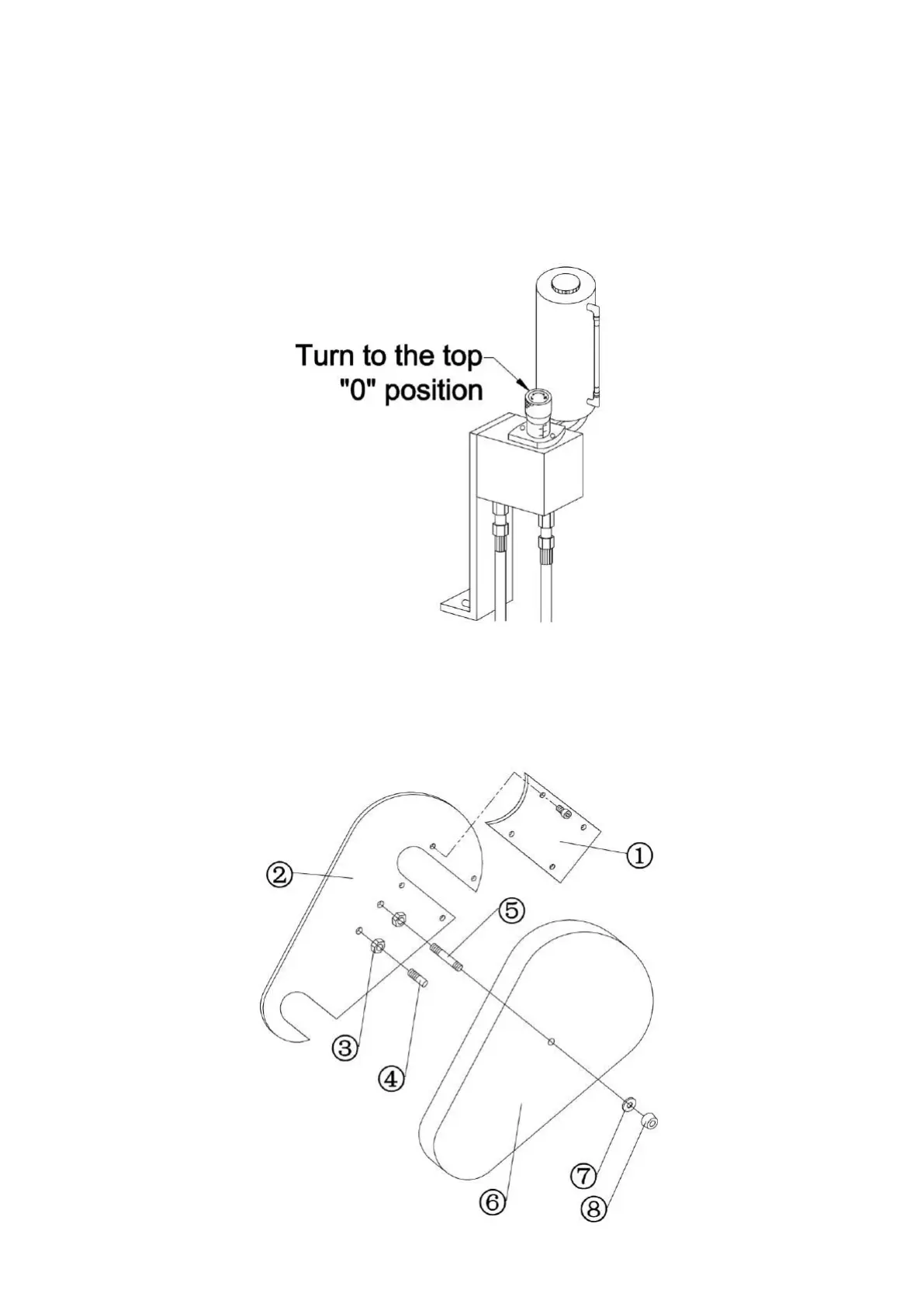

2-5-1. Instruction of Danger Release as Hydraulic System Clipping Persons/Power Breaking
Because this machine adopts passive mechanical hydraulic system, hence, when clipping, promptly turn the
adjusting knob on the above to “0” to discharge the pressure, then the clipped person can be released, as
following illustration:
Protective cover (shield) of big belt wheel
