Excel KP-200 - Noise in Chin Head

56
ITEM 1 c
Malfunction
Insufficient Sawing Pressure
Cause
c. Fatigue spring of pressure adjustment

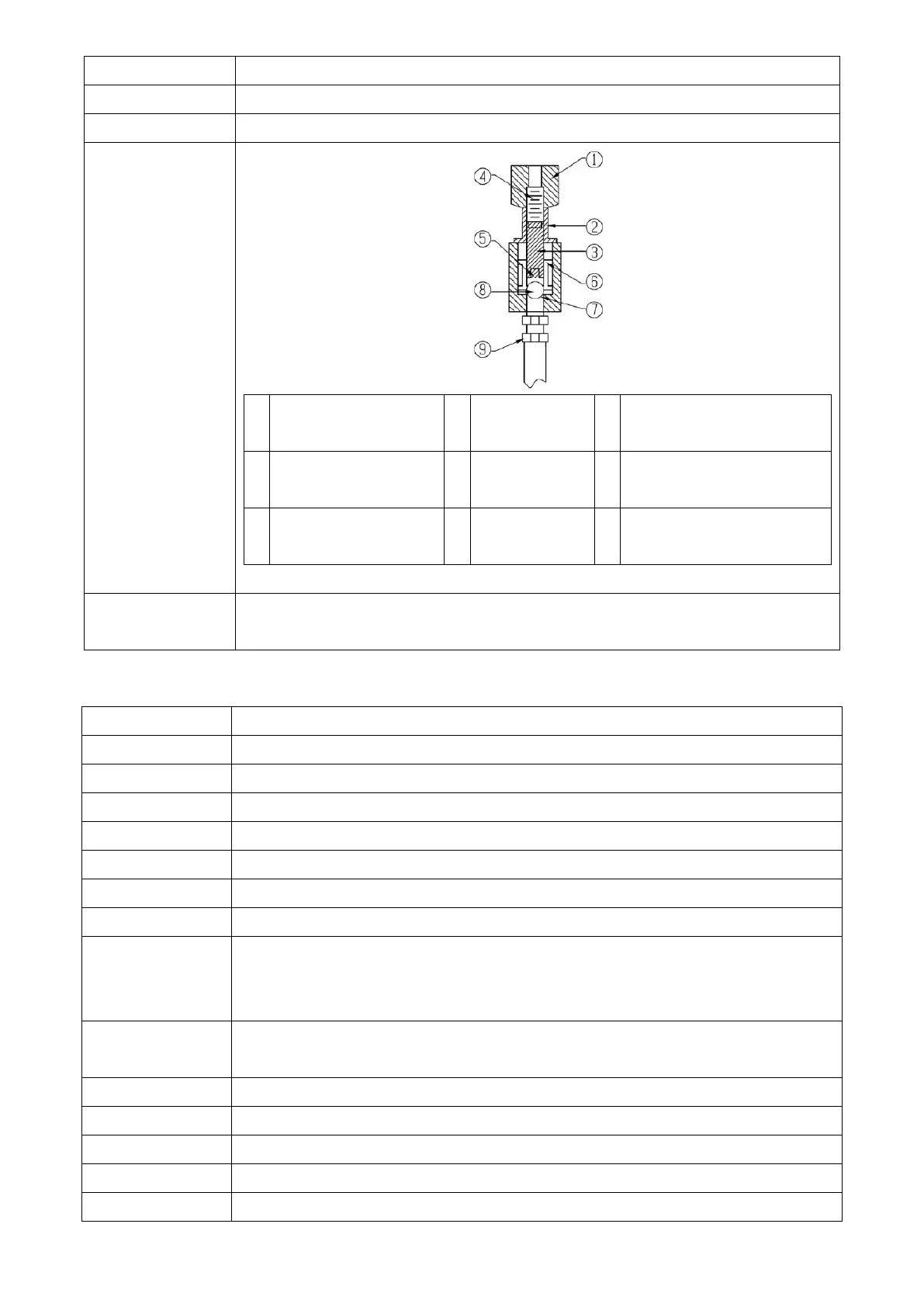

Trouble shooting
1
Pressure Adjusting
Knob
2
Scale
3
Pressure Adjusting Spring
4
Pressure Adjusting
Screw
5
Steel Ball
Washer
6
Ring of Pressure Adjusting
Spring
7
Steel Ball/Sphere
Contact
8
Steel Ball
9
High Pressure Hose
Replace the pressure adjusting spring○
3
Remark
c. Repaired by qualified technician, or contact local dealer/producer for prompt
service
12-2. Noise in Chin Head
ITEM 2 a
Malfunction
Noise in Chin Head
Cause
a. Lack of lubrication oil
Trouble shooting
a. Replenish lubrication oil according to manual instruction
Remark
a. Use MOBILITH AW3 oil
ITEM 2 b
Malfunction
Noise in Chin Head
Cause
b. Gear Damage
Trouble shooting
b. Dismantle the slider and saw frame, check the big and small gears, replace the
gears damaged if necessary
Caution : refer to manual instruction to dismantle the parts
Remark
b. Repaired by qualified technician or contact local dealer/producer for prompt
service
ITEM 2 c
Malfunction
Noise in Chin Head
Cause
c. Damage or wear/tear to bearing
Trouble shooting
c. Replace the bearing as per manual instruction
Remark
c. Repaired by qualified technician or contact local/producer for prompt service
