6-2. Adjustment of Vice Jaw (Front and Rear)
For wider sectional use of saw blade, the vice jaw can be adjusted to move to proper locations for such
applications as following illustrations”
Usage for back part of blade:

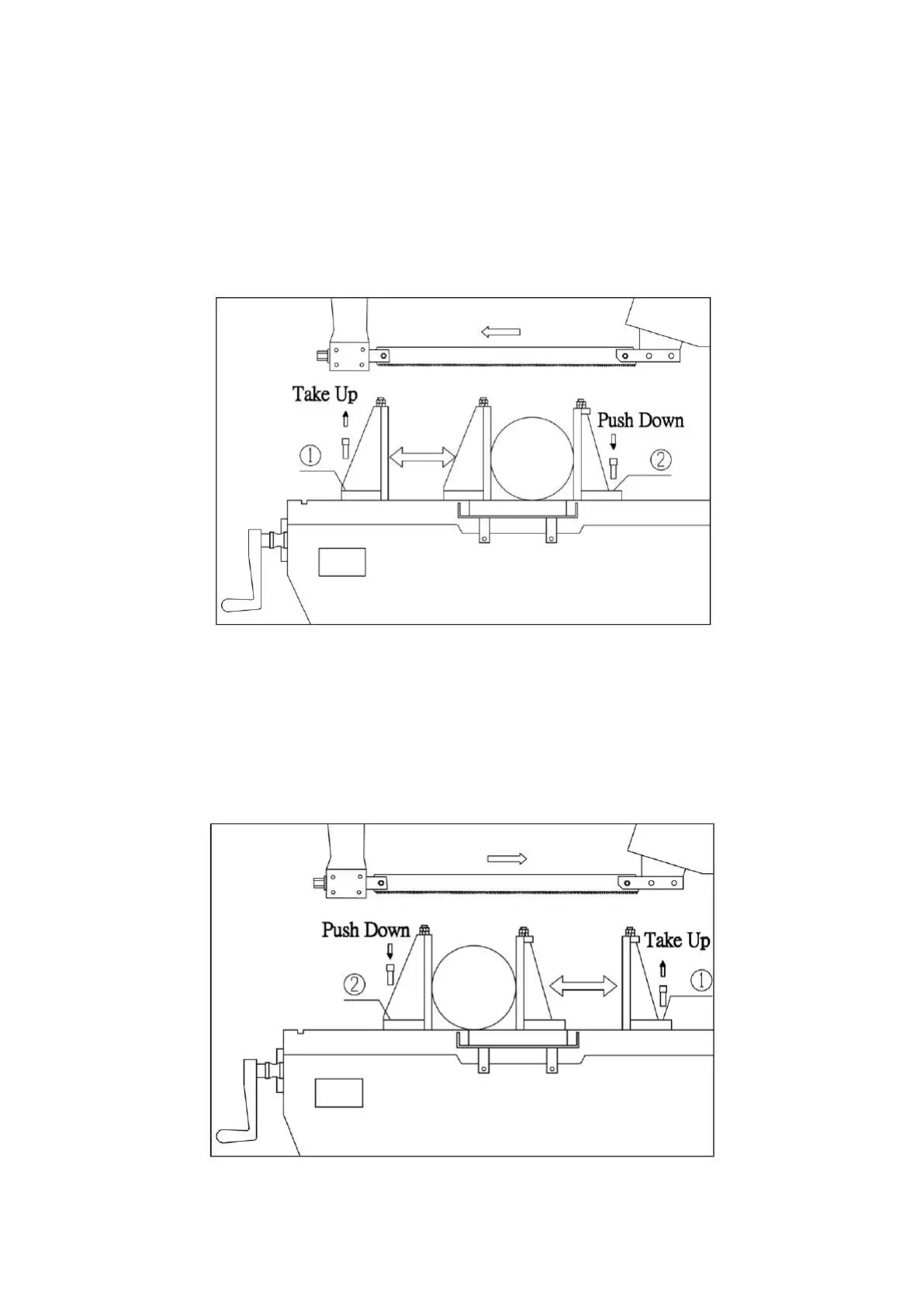

Use the jaw locating pin to fix the back part of vise jaw to the table, then use the vise handle to fix sawed
objects, shown as the following drawing:
①Take up the locating pin from the front vice jaw
②Insert the locating pin into the rear vice jaw
Usage for front part of blade:
Use the jaw locating pins to fix the front vise jaw to the table, then use the vise handle to fix object,
shown as the following drawing:
①Take up the locating pin from the rear vice jaw
②Insert the locating pin into the front vice jaw
