Chapter 7. Troubleshooting Guide

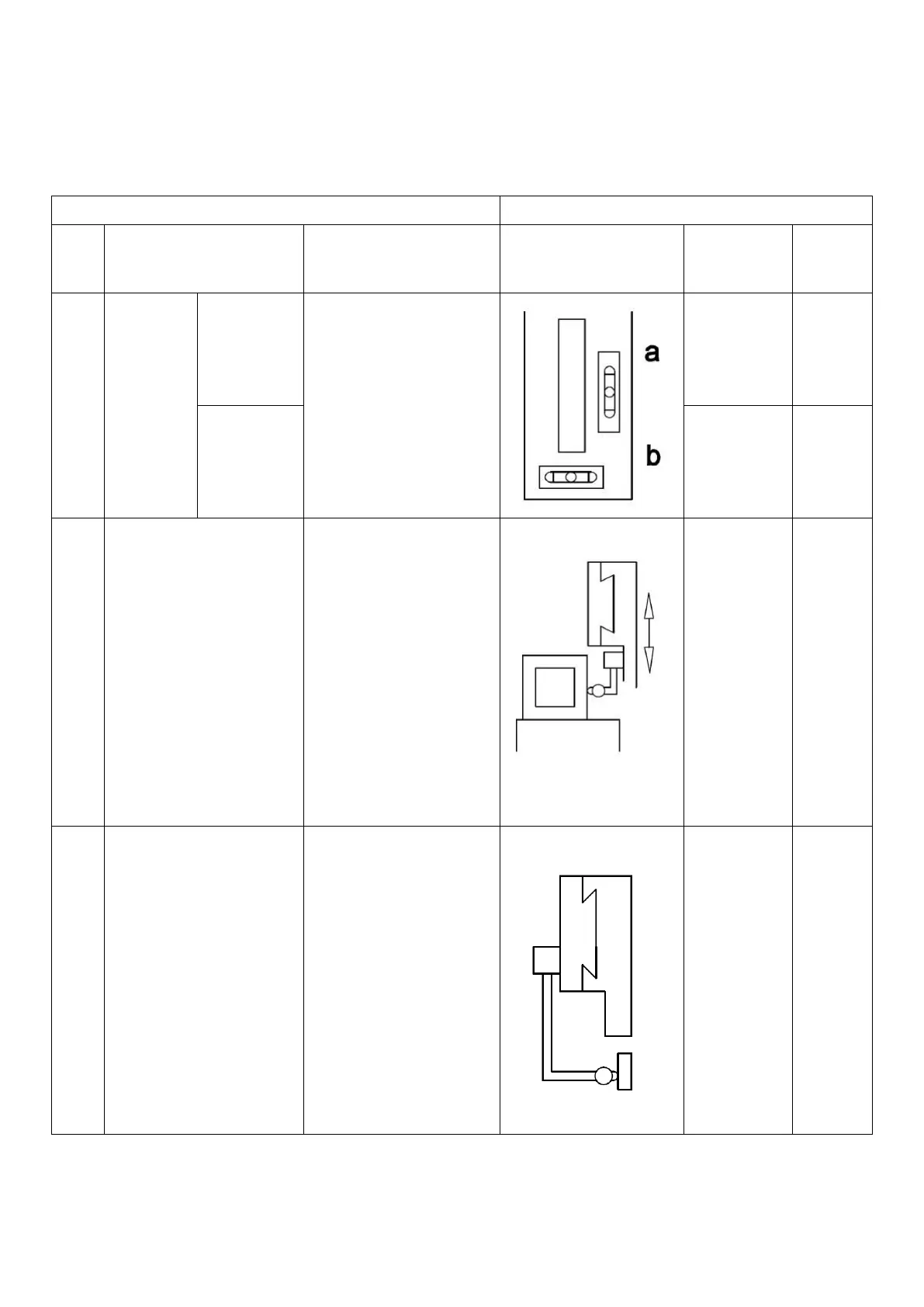

7-1. Inspection Standard of Machine
SAW KING INDUSTRIAL CO., LTD.
INSPECTION STANDARD
Item
no.
Inspection item
Inspection method
Illustration
Permissible
error (mm)
Reading
(mm)
1
Flatness
of the
table
A front and
rear
direction
(1)
Place precision level on
the table, at least three
points such as the
center and two ends,
the max. difference of
reading is the testing
value.
0.20/m
B left and
right
direction
(1)
0.20/m
2
The perpendicularity
between table surface
and vertical movement
of the bow frame
Place test indicator on
the bow frame, and be
contacted with level or
square which is being
put on the table
surface, ascending and
descending the bow
frame, the max.
difference of the
reading is the
measuring value.
Each 150
0.10
3
The parallelism
between reciprocating
movement of sawing
bow and the guide rail
of the bow frame
Place test indicator on
the guide rail of the
bow frame, and be
contacted with the test
plate (2) which is being
put on the bow frame.
Move the bow frame,
the max. difference of
the reading is the
measuring value.
Each 150
0.05
