12-3. Insufficient Lifting Height of Saw Frame after Sawing Job
ITEM 3 a
Malfunction
Insufficient lifting height of saw frame after sawing job
Cause
a. Fatigue spring of cylinder
Trouble shooting
a. 1. Refer to ITEM 1 b 1 to replace the fatigue spring
2. The spring force is big, use mechanical lift to dismantle the parts to
avoid danger

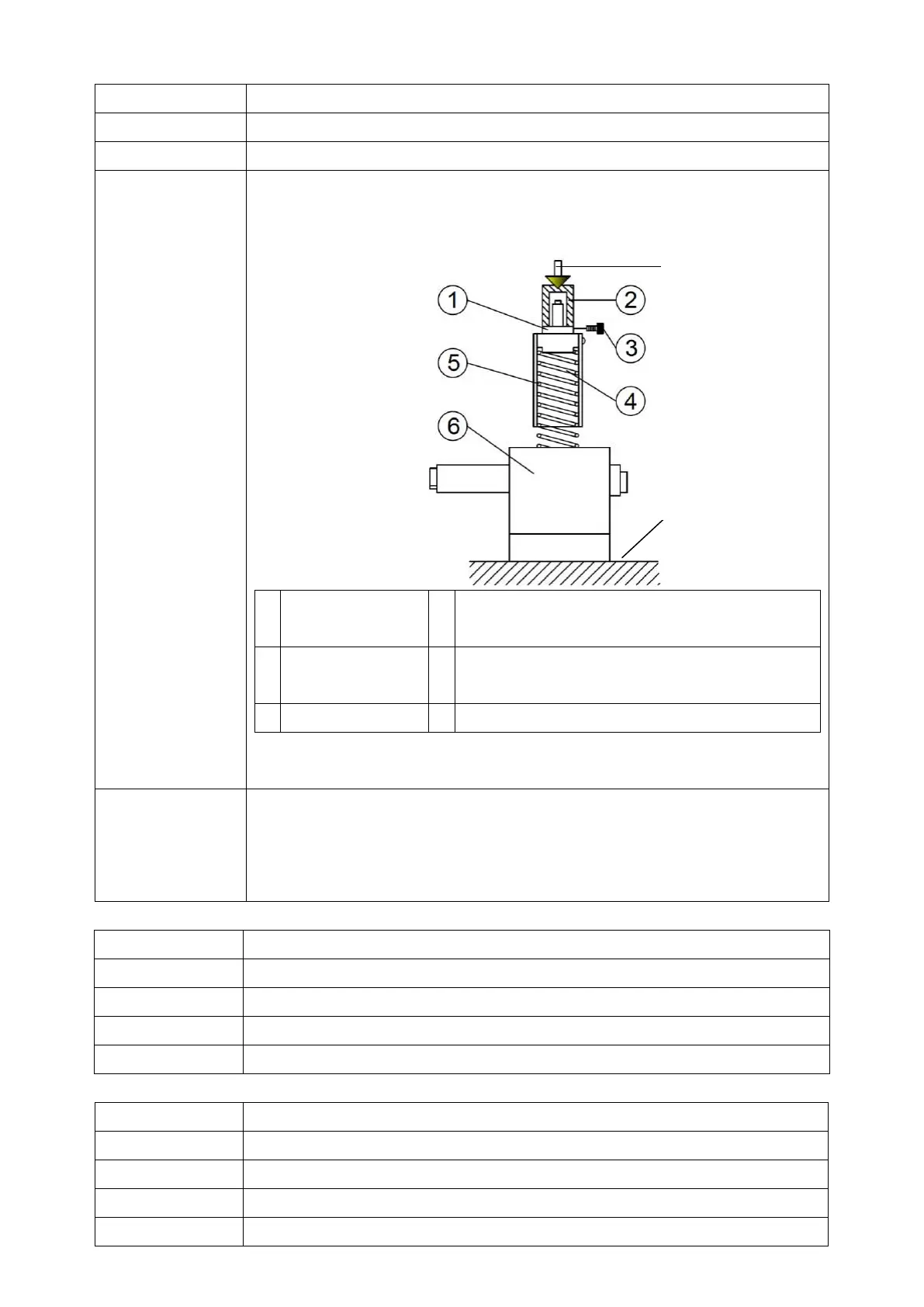

1
Tube Head of
Spring
2
Tool to press spring tube (inner diameter must
be bigger than piston bar)
3
Fixing Screw of
Piston Bar
4
Spring of Cylinder
5
Spring Tube
6
Cylinder
Remark
1. Repaired by qualified technician
2. Must use mechanical tool to avoid flying out of spring○
5
, which may
cause injury
3. Contact local dealer/producer for repair
ITEM 3 b
Malfunction
Insufficient lifting height of saw frame after sawing job
Cause
b. Check if any obstacle inside
Trouble shooting
b. Remove the obstacle inside
Remark
Turn off power before checking
ITEM 3 c
Malfunction
Insufficient lifting height of saw frame after sawing job
Cause
c. Consistency between timer scale and the lifting height
Trouble shooting
c. Check the timer scale-second
Remark
The scale is from 0 to 10 seconds
Use mechanical lift
to remove the spring
to avoid danger
