Chapter 9. Lubrication Oil Maintenance
Preventing fluids (hydraulic oil/metalfluid) spillage onto the surrounding area and thus creating slipping
hazard.
9-1. Maintenance of Saw Frame and Chin Head

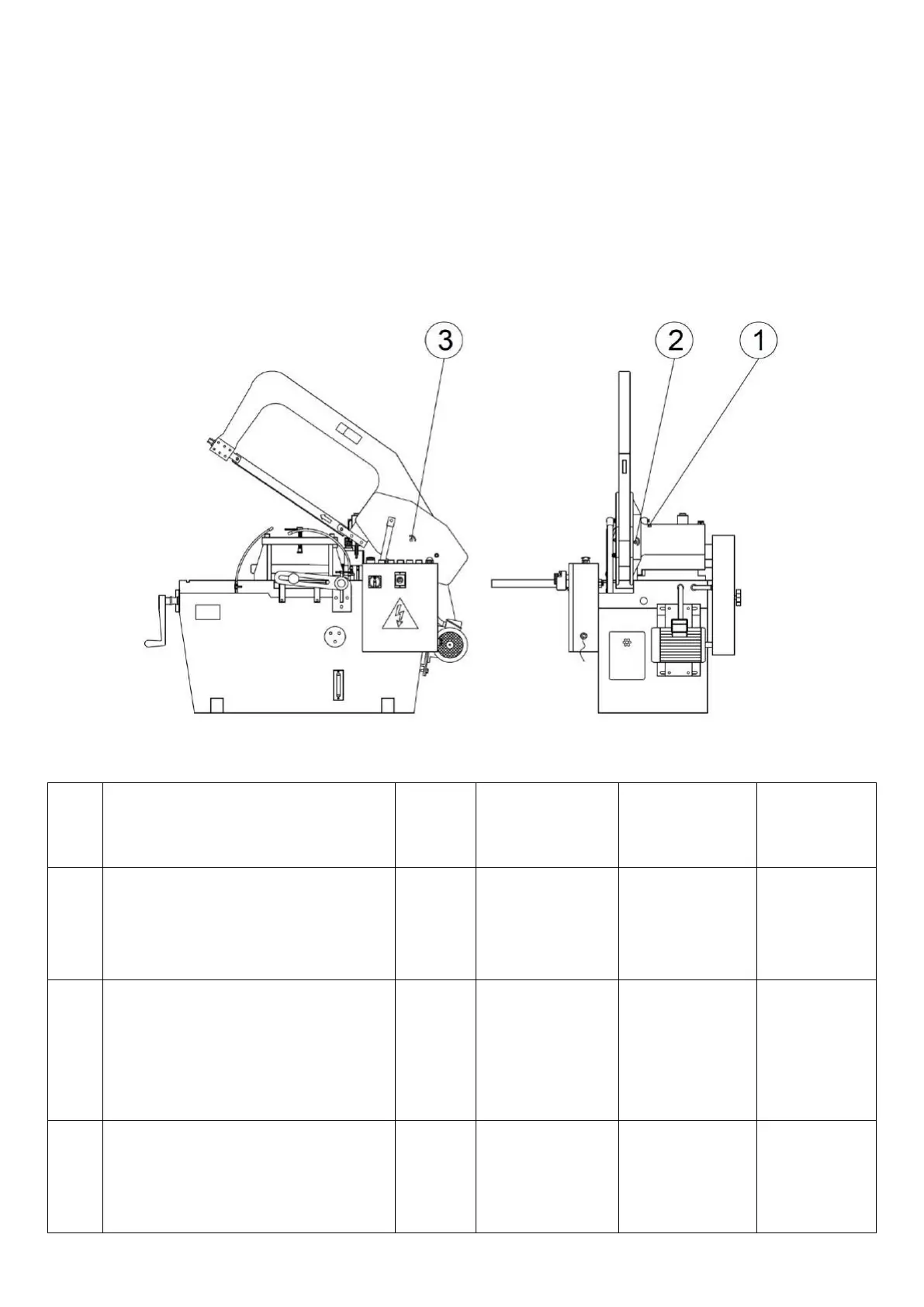

As drawing: ○
1
The bearing inside the chin head, ○
2
Contact section between big gear and saw frame, ○
3
Contact section between saw frame and outer slider(the safety switch must be turned off for safety)
Following table displays maintenance methods and cycles:
ITEM
Maintenance Section
Cycle
Method
Oil
Replenishing
Volume
Specification
of Oil
1
Bearing inside the chin head
Weekly
Use lubrication
gun to inject in
and replace old
oil
2500CC(0.25L)
MOBILITH
AW3
2
1. Lubrication between big gears
and small gears. 2. Lubrication
between slider and saw frame. 3.
Lubrication between big gear roller
and moving trough of saw frame
Every
two
days
Use lubrication
gun to inject in
oil
200CC(0.2L)
MOBILITH
AW3
3
1. Lubrication between saw frame
and slider. 2. Lubrication between
big gear roller and moving trough of
saw frame
Every
two
days
Use lubrication
gun to inject in
oil
150CC(0.15L)
MOBILITH
AW3
