Excel KP-200 - Adjustment of Sawing Angle

34
6-3. Adjustment of Sawing Angle
Adjustment of Vice Jaw Angle

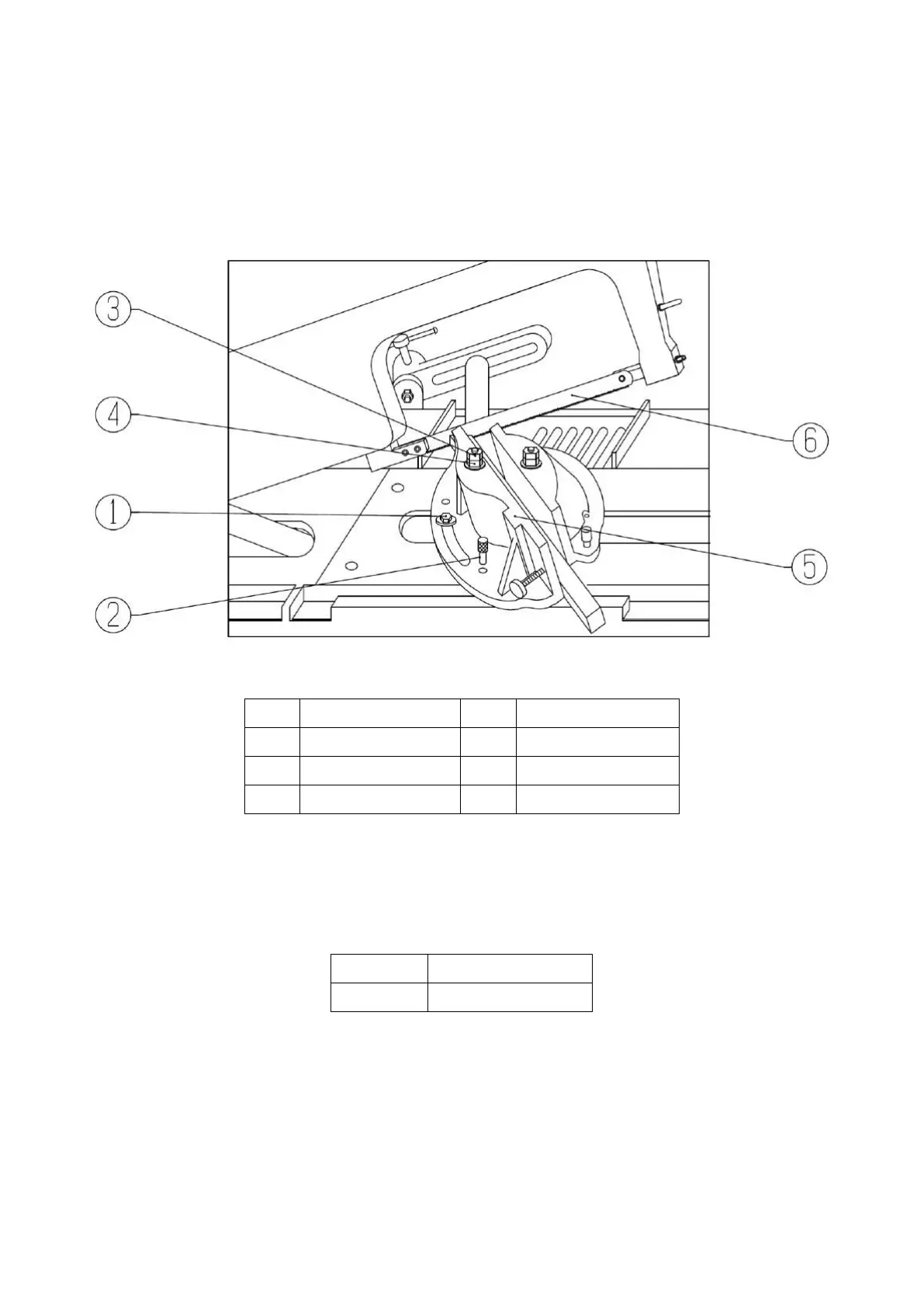

Before sawing with angles, you have to adjust the angle, just release the bolts, nuts and pin on the
platform as following drawing, get the accurate angel the job need, then screw the released bolts, nuts
and pin tightly to avoid moving the certain parts.
ITEM
NAME
ITEM
NAME
1
Auxiliary Fixed Bolt
4
Adjusting Nut
2
Locating Pin
5
Rear Fixed Vice Jaw
3
Fixed Nut
6
Saw Blade
Maximum Sawing Diameter under Angle 45
0
MODEL
Max. Dia.(mm)
KP-200
80
