Excel KP-200 - Model: KP-200, Roller Stand Assembly

84

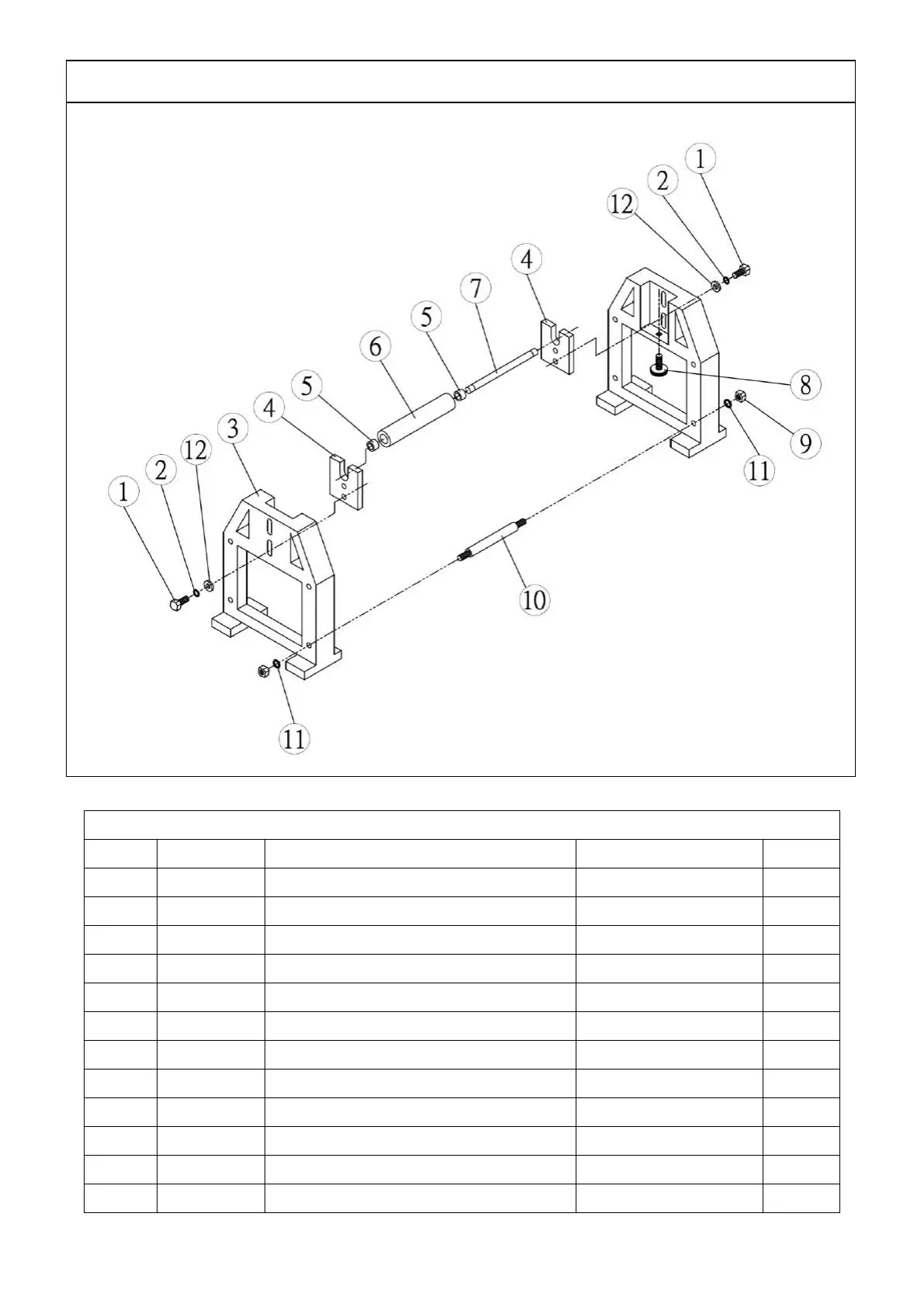

Model: KP-200 Title: MATERIALS RACK ASSEMBLY Drawing No.: M-092006
ITEM
PART NO.
DESCRIPTION
SPECIFICATIO
Q’TY
1
S-05-07
HEX HEAD CAP SCREW
M8*1.25*40
4
2
SW-30-05
SPRING WASHER
Ø 8.5
4
3
P-20407
MATERIALS RACK
2
4
P-25406-2
ROLLER SEAT
2
5
BR-29-04
BALL BEARING
6203ZZ
2
6
P-25408-1
ROLLER
1
7
P-25409-1
ROLLER SHAFT
1
8
HD-80-05
ROLLER ADJUST SCREW
1/2”-14NC*70
2
9
N-10-06
NUT M10*1.5
M10*1.5
8
10
P-20406
MATERIALS RACK SHAFT
4
11
SW-30-06
SPRING WASHER
Ø 10.5
8
12
W-20-05
WASEHR
Ø 8.5
8
15-6 Model: KP-200 Title: Materials Rack Assembly Drawing No.: M-092006
