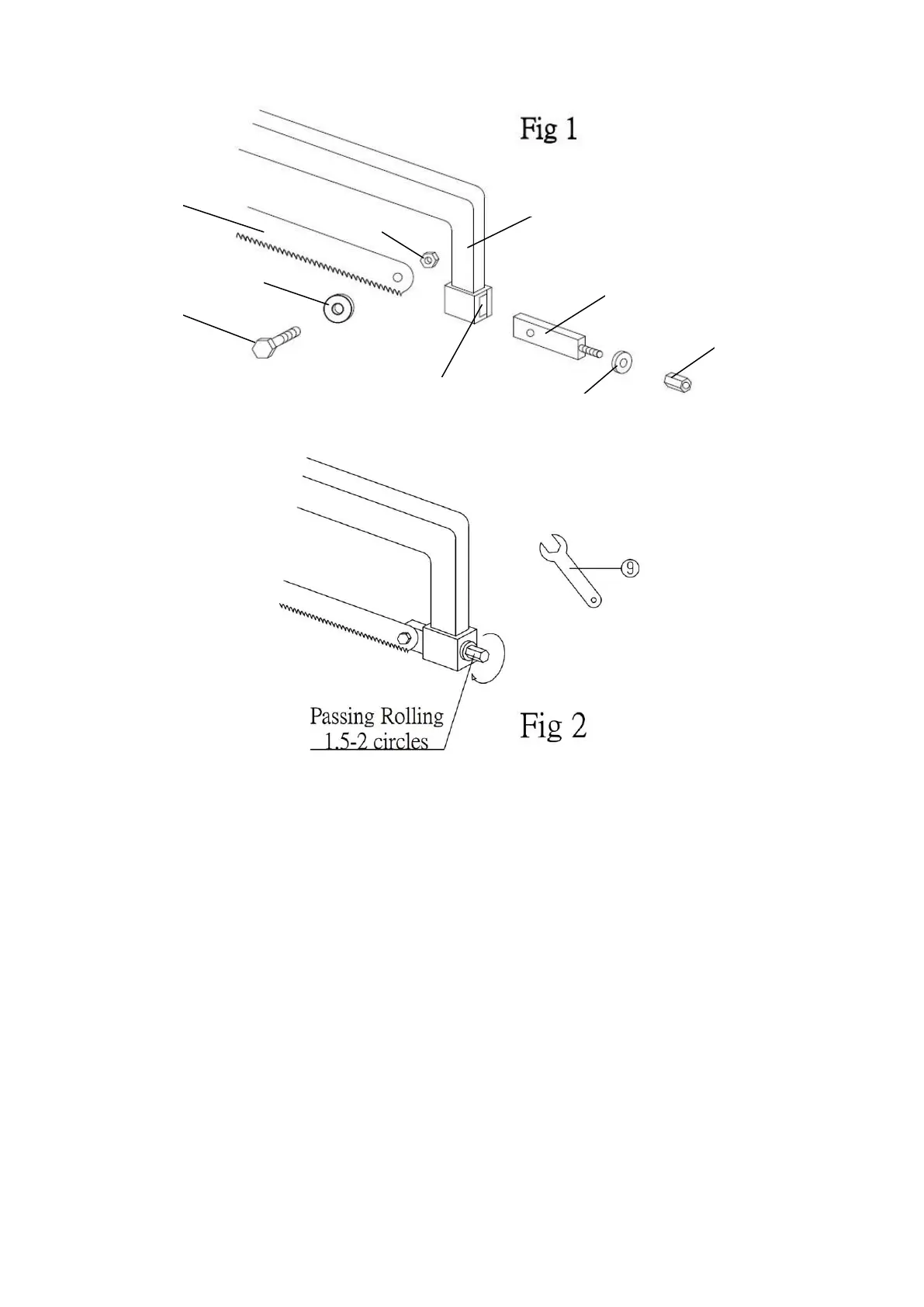

9-4. Maintenance of Adjusting Screw of Saw Blade Tension
Tension adjustment of saw blade will affect the sawing precision, please maintain the parts according to
following steps:
a. Place the saw frame in proper height (as waist high)
b. Use #21 wrench to release adjusting nut○
1
(counter clockwise), to the extent of no tension
c. Use #13 and #14 wrenches to release ○
5
.○
6
.○
7
and separate the saw blade○
4
and the adjusting screw of
saw blade tension○
3
d. Take out○
1
.○
2
.○
3
and place them in clear place
e. Use clean cloth to clean up dust and iron dirt in○
8
, and apply new MOBILITH AW3 oil in○
8
. Never apply
too much to avoid wastage
f. Insert the assembly of○
1
.○
2
.○
3
into○
8
, clean up excessive oil
g. Tighten them in the order of○
3
.○
4
.○
5
.○
6
.○
7
, ensure no dust inside to affect precision
h. Use wrench ○
9
(#21) to tighten clockwise, and rotate to 1.5 to 2 circles to reach proper tension according
the instruction of manual
i. Tension must be released after job, to avoid fatigue tension
○
4
Saw Blade
⑦
⑥
⑤
⑧
②Washer
Saw Frame
○
3
Adjusting Screw of Saw Blade
Tension
○
1
Adjusting Nut
