Excel KP-200 - Page 45

39
SAW KING INDUSTRIAL CO., LTD.

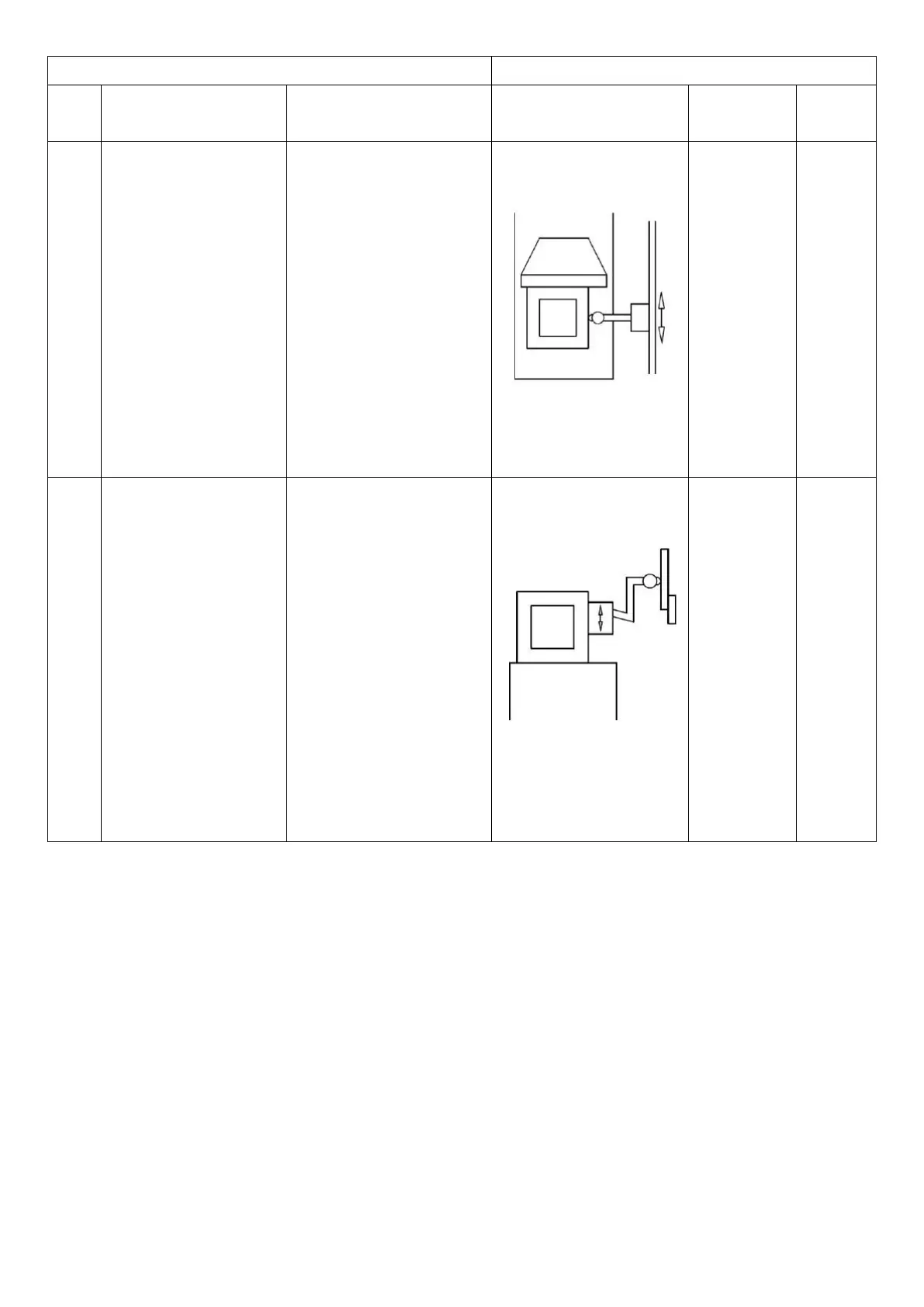

INSPECTION STANDARD
Item
no.
Inspection item
Inspection method
Illustration
Permissible
error (mm)
Reading
(mm)
4
The perpendicularity
between the
clamping surface
(fixing surface) of
work clamp and the
reciprocating
movement of the saw
Test indicator be put on
the test plate(2) which is
mounted on the bow
frame, and be contacted
with the level or square
that is closely contact
with the clamping
surface of the clamp,
move the bow frame,
the max. difference of
the reading is the
measuring value.
Each 100
0.10
5
The perpendicularity
between the blade
and table surface
Put test indicator on
level or square which is
being set on the table
surface, and also contact
with test plate (2) that
has being mounted on
the bow frame, move
the indicate or up and
down along one side of
either level or square,
the max. difference
reading is the measuring
value.
Each 50
0.10
Note: (1) Take saw frame as center, the projected end is the front of the machine; face to the front of the
machine, right hand side is the right of the machine.
(2) Test plate is used in substitution of the saw blade for measuring use, the width is 50 mm, and
thickness is 10 mm.
