1-3 Scale Appearance
1-4 Power Supply
Power Supply Selection
1. 6 V / 4.0 Ah Rechargeable battery
2. AC adaptor DC 12 V / 1A
Power Consumption
Approximately DC 19 mA (Indicator)
Approximately DC 38 mA (Indicator + Display backlight)
Approximately DC 70 ~ 80 mA (Indicator + Display backlight + Relay)
Low Battery Warning
When the power bar indication turns to be low battery , it means the battery should
be recharged immediately.
The package includes:
1. Indicator ｘ1
2. Power Cable ｘ1
3. User Manual ｘ1
When you unpack the
indicator and find any of the
above items are missing,
please contact your supplier.

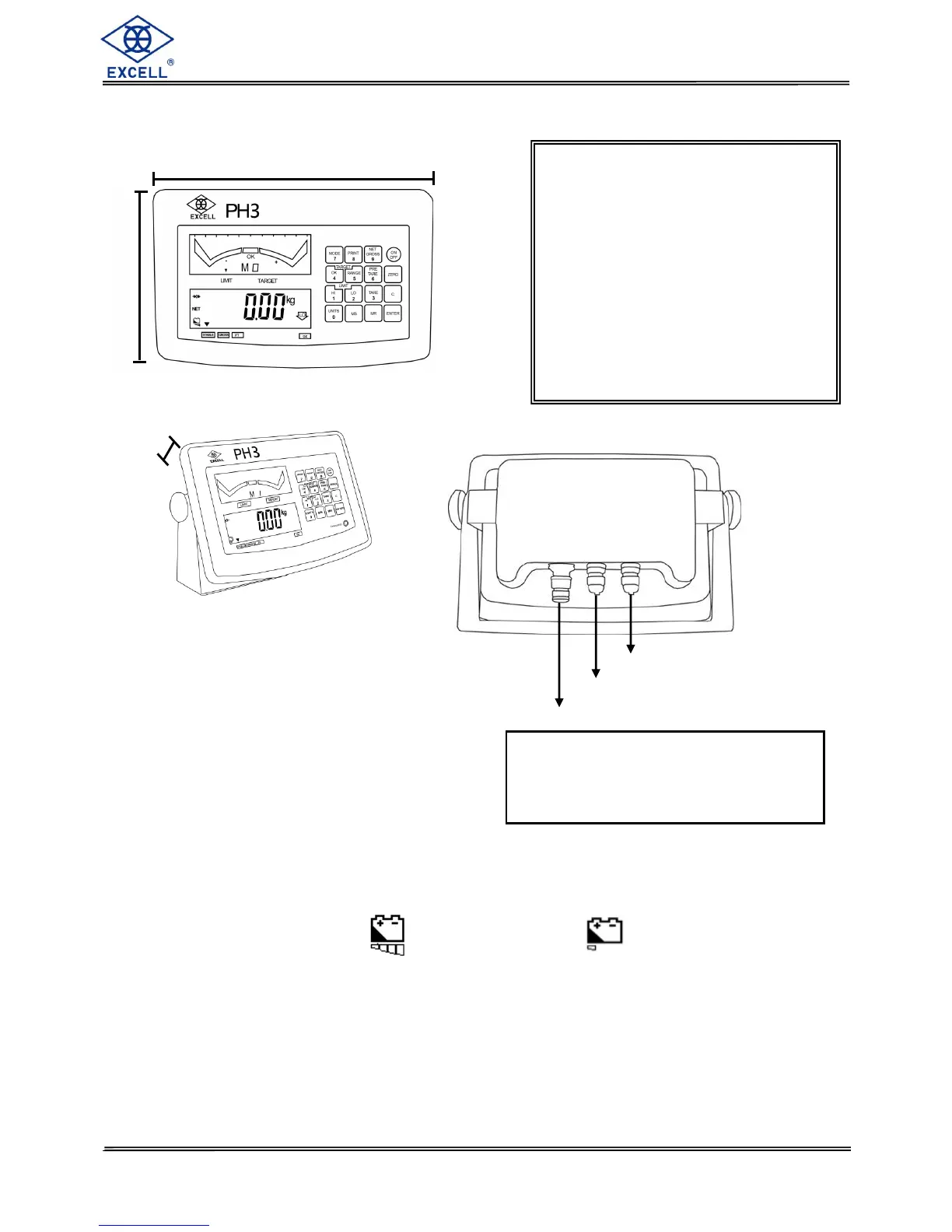

256 mm
170 mm
90 mm
Power cable connector
Load cell connector
RS-232 connector
(For RS-232 and load cell, only the
cables with Ф 3 ~ 5.5mm caliber can
be used, or the indicator’s
waterproofness will be affected.)
