METALJET D2+ INTRODUCTION
Revision 19, November 2016 Page 1-6
Figure 1-2. The main components inside the pump box.
1.3.3 X-ray output options
MetalJet D2+ systems can be configured to operate with the x-ray output either on the left-hand side (left-
handed), the right-hand side (right-handed) or both sides (dual port). The definition of left and right is indicated
in Figure 1-3 using a red arrow for the left-handed system and a green arrow for the right-handed system.

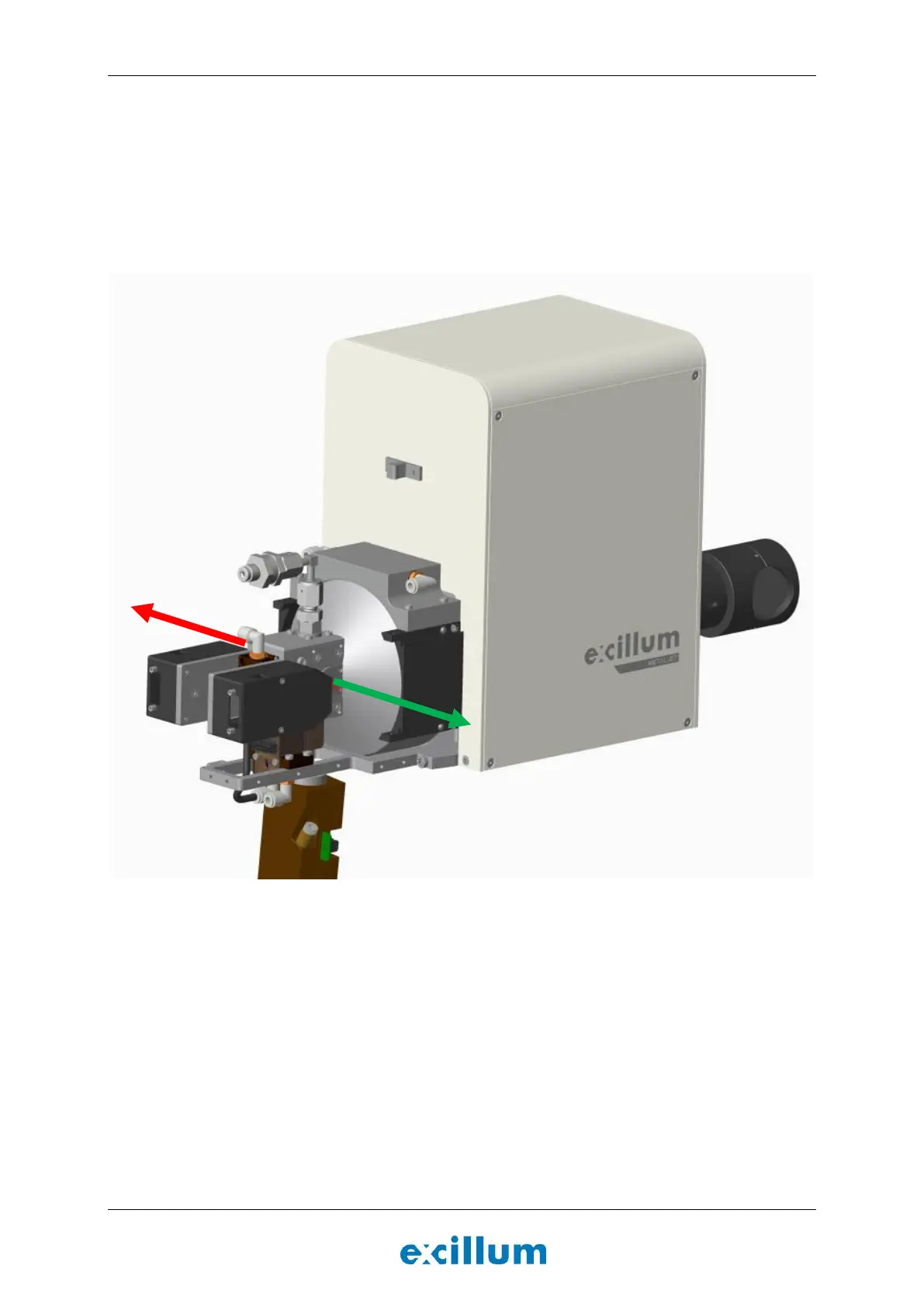

Figure 1-3. MetalJet D2+ system configured with the x-ray output on both sides (dual port). Red arrow indicate
output direction of left-handed system and green arrow indicate output direction of a right-handed system.
The output direction can be reconfigured in field, but we strongly suggest that the output direction is specified
when placing the order.
