METALJET D2+ INSTALLATION
Revision 19, November 2016 Page 4-16
4.3.2.8 MetalJet D2+ 70 kV
The high-voltage generator is built into the x-ray high-voltage controller in MetalJet D2+ 70 kV systems, see
Figure 4-17.

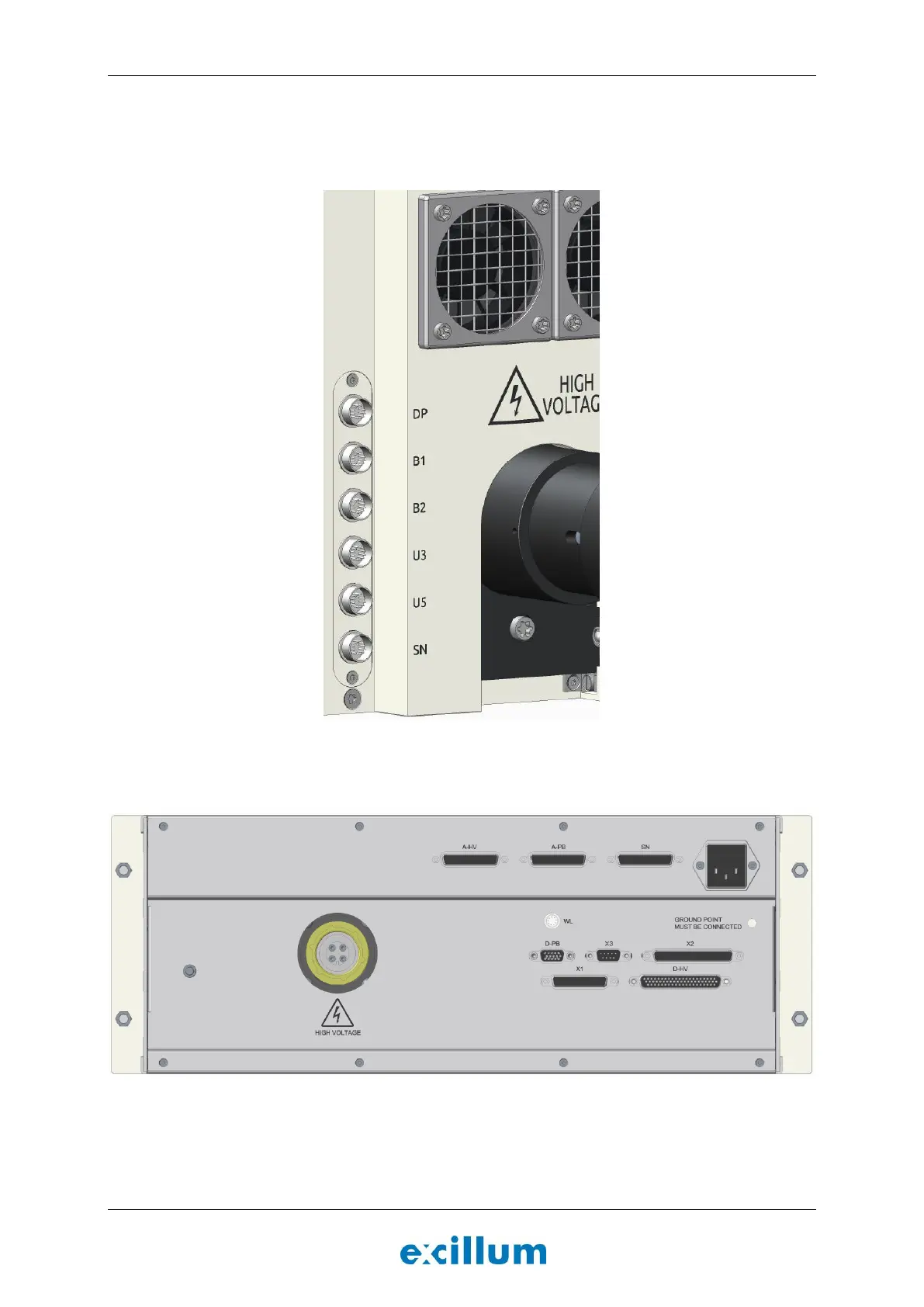

Figure 4-16. X-ray head from behind showing connectors to x-ray system controller and x-ray high-voltage
controller (left side).
Figure 4-17. X-ray high-voltage controller seen from behind.
